With Manual Climate Control

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.







2. Remove the center instrument panel finish panel.
^ Carefully pry to release the four clips.







3. If equipped, disconnect the 4WD control switch connector.

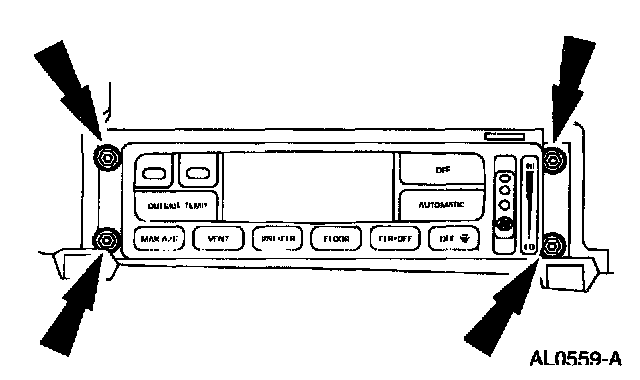

4. Remove the screws from the Electronic Automatic Temperature Control (EATC) module.







5. Remove the EATC module.
1 Disconnect the electrical connectors.
2 Remove the nuts.
3 Disconnect the vacuum harness connector and remove the EATC module.

INSTALLATION
1. To install, reverse the removal procedure.
