Front

REMOVAL

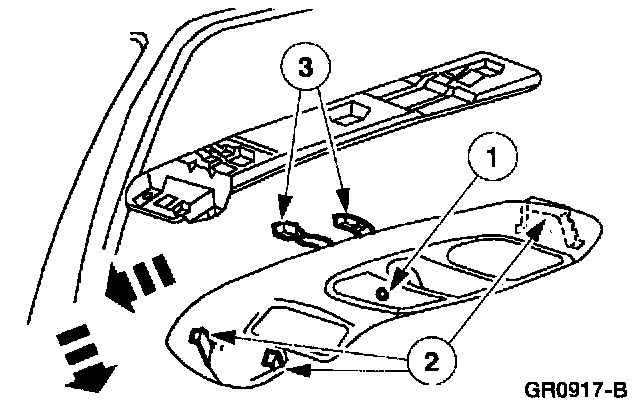

1. Remove the overhead console.
1 Remove the screw.
2 Carefully release the three clips and slide the overhead console forward.
3 Disconnect the electrical connectors.

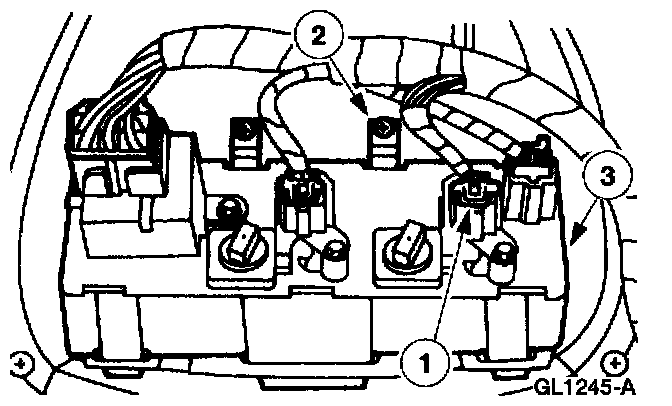

2. Remove the auxiliary climate control assembly from the bezel.
1 Disconnect the electrical connectors.
2 Remove the screws.
3 Remove the climate control assembly.

INSTALLATION
1. To install, reverse the removal procedure.
