Home >> Ford >> 2000 >> Expedition 2WD V8-5.4L SOHC VIN L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle

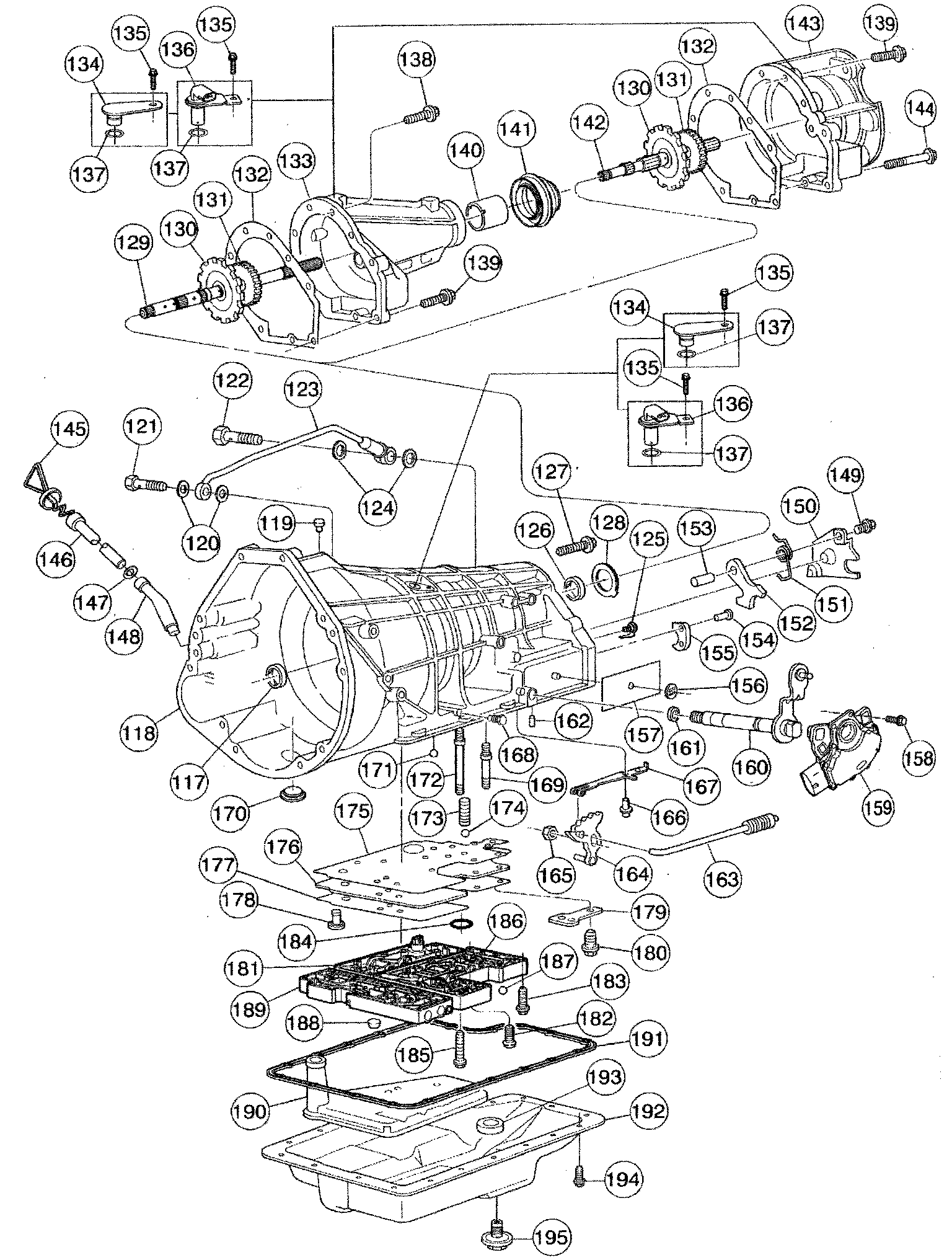

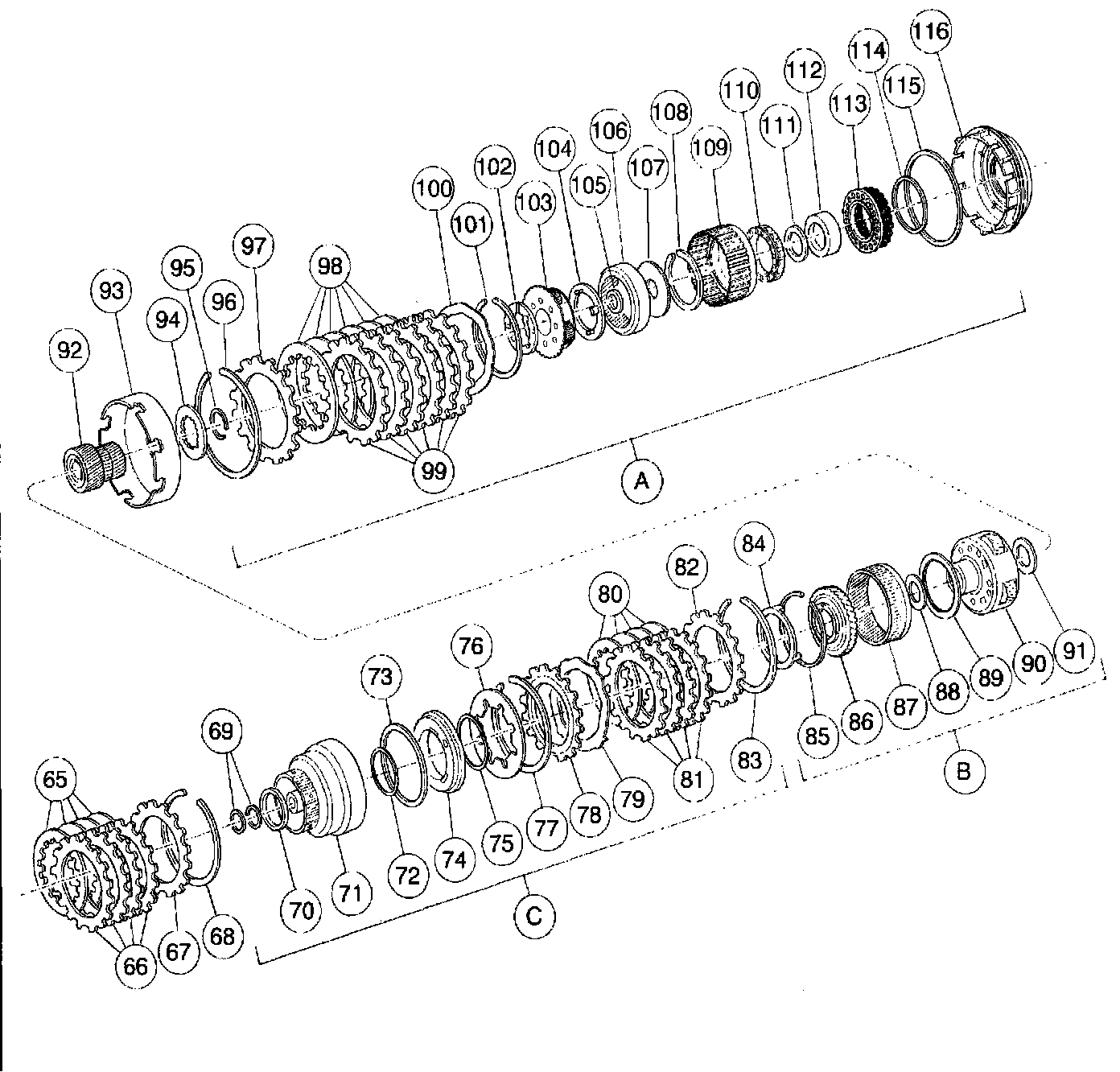

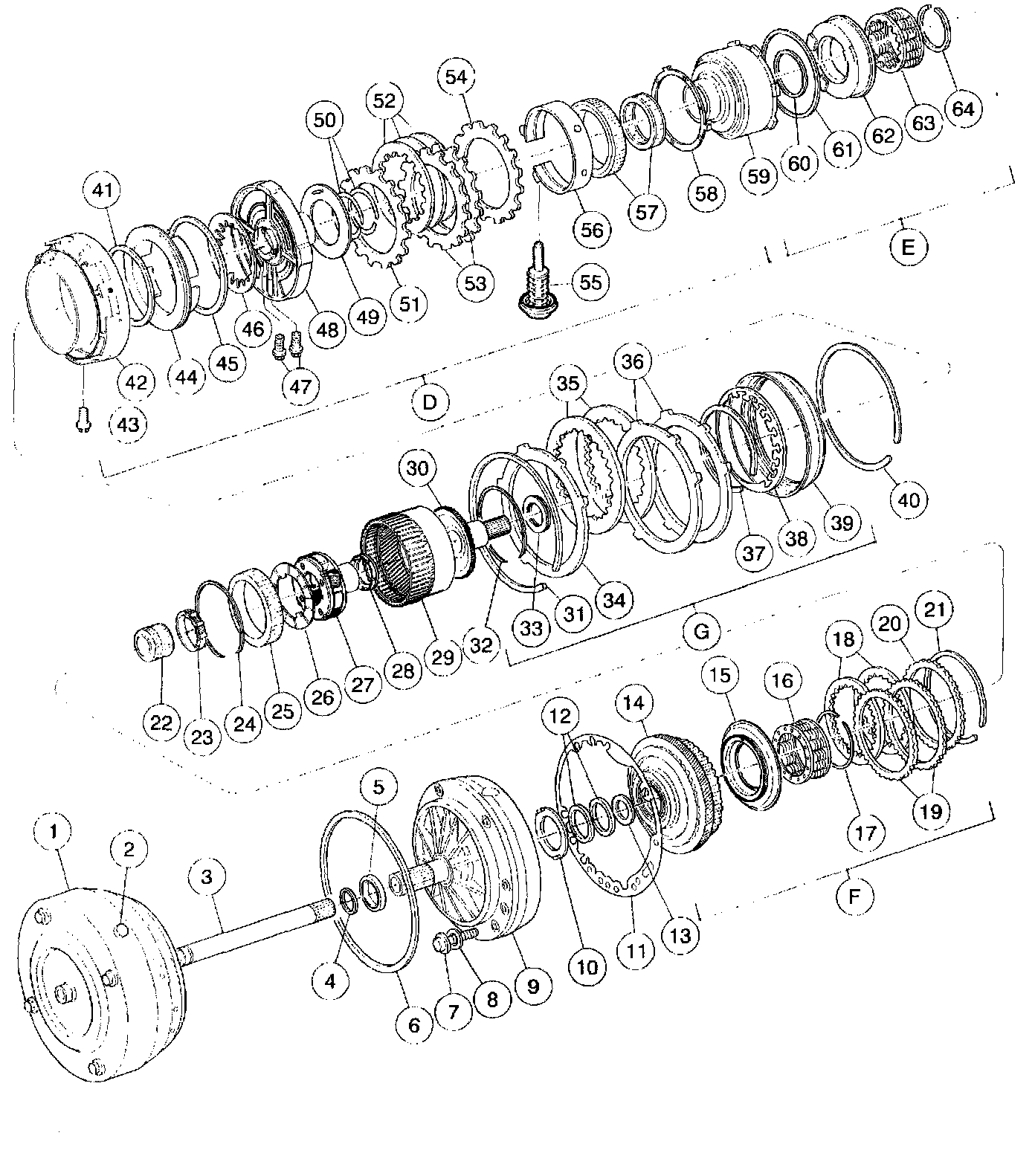

Automatic Transmission/Transaxle





1 of 7





2 of 7





3 of 7





4 of 7





5 of 7





6 of 7





7 of 7
