Navigation System Display Module

REMOVAL
1. Disconnect the battery. For additional information, refer to Battery.

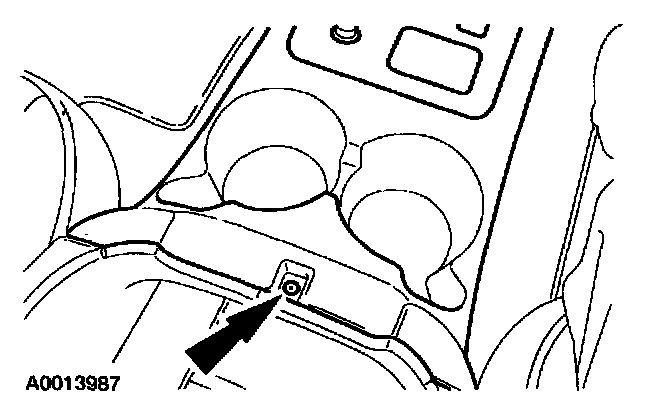

2. Remove the screw.
3. Carefully pull up on the console finish panel and unsnap it from the center console.

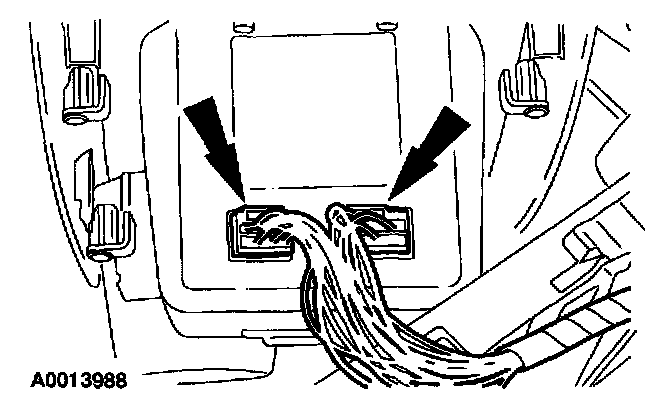

4. Disconnect the harness connectors and parking aid switch (if equipped) and remove the console finish panel.

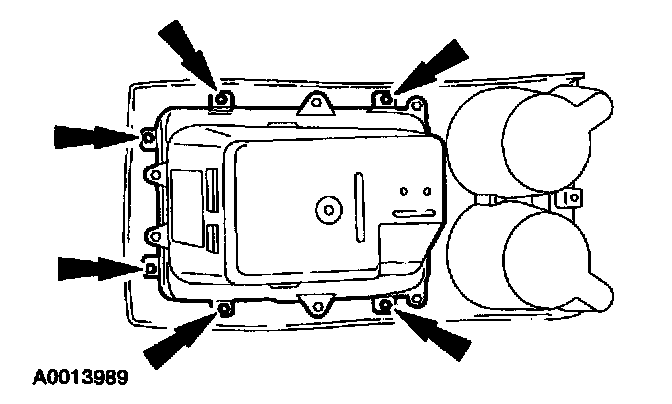

5. Remove the screws and remove the navigation system display module.

INSTALLATION
1. To install, reverse the removal procedure.
