Home >> Ford >> 2000 >> Excursion 4WD V8-7.3L DSL Turbo VIN F >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Suspension >> Front Suspension

Front Suspension

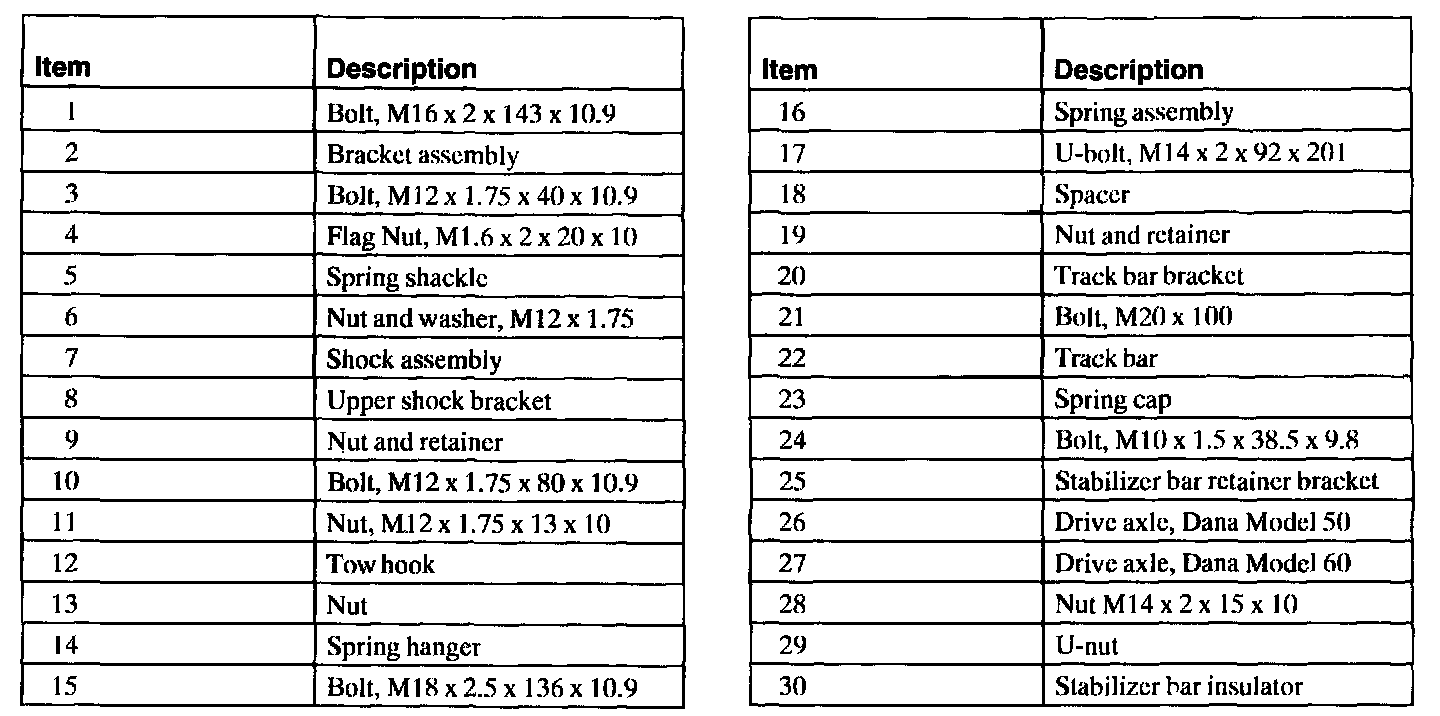

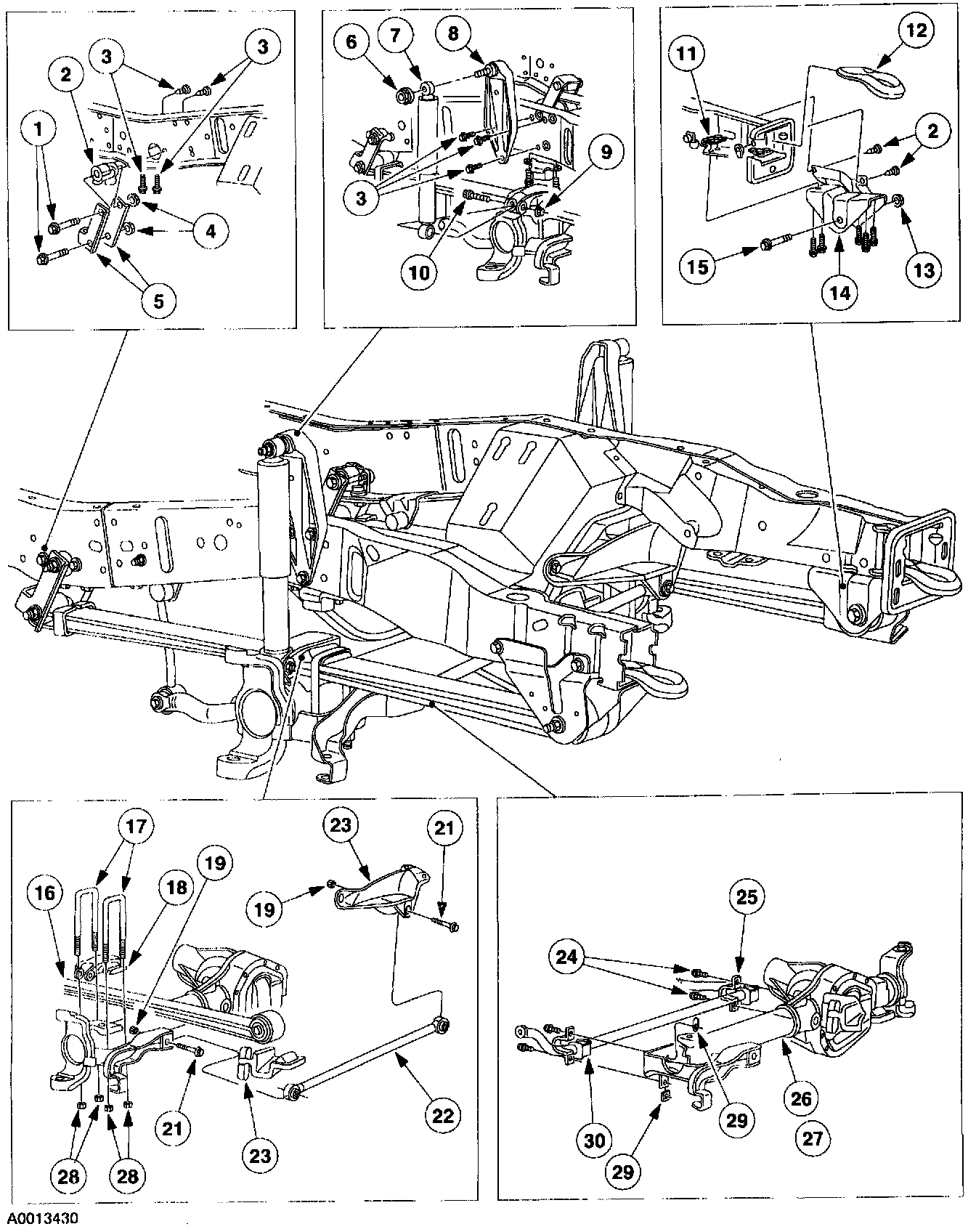

Front Suspension with Dana Model 50 and Dana Model 60 Front Drive Axles

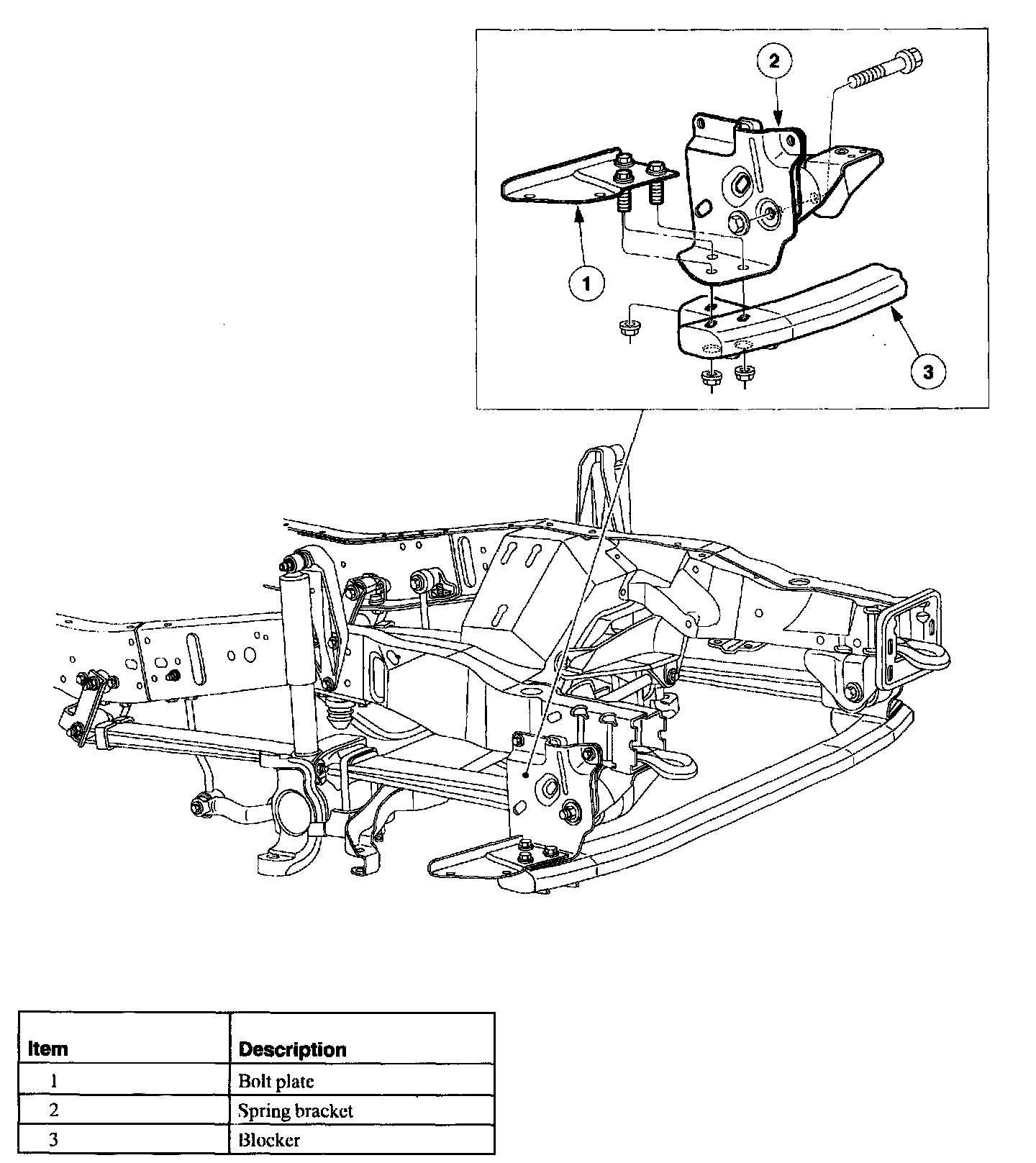

Front Spring Forward Mounting Bracket (Excursion)
