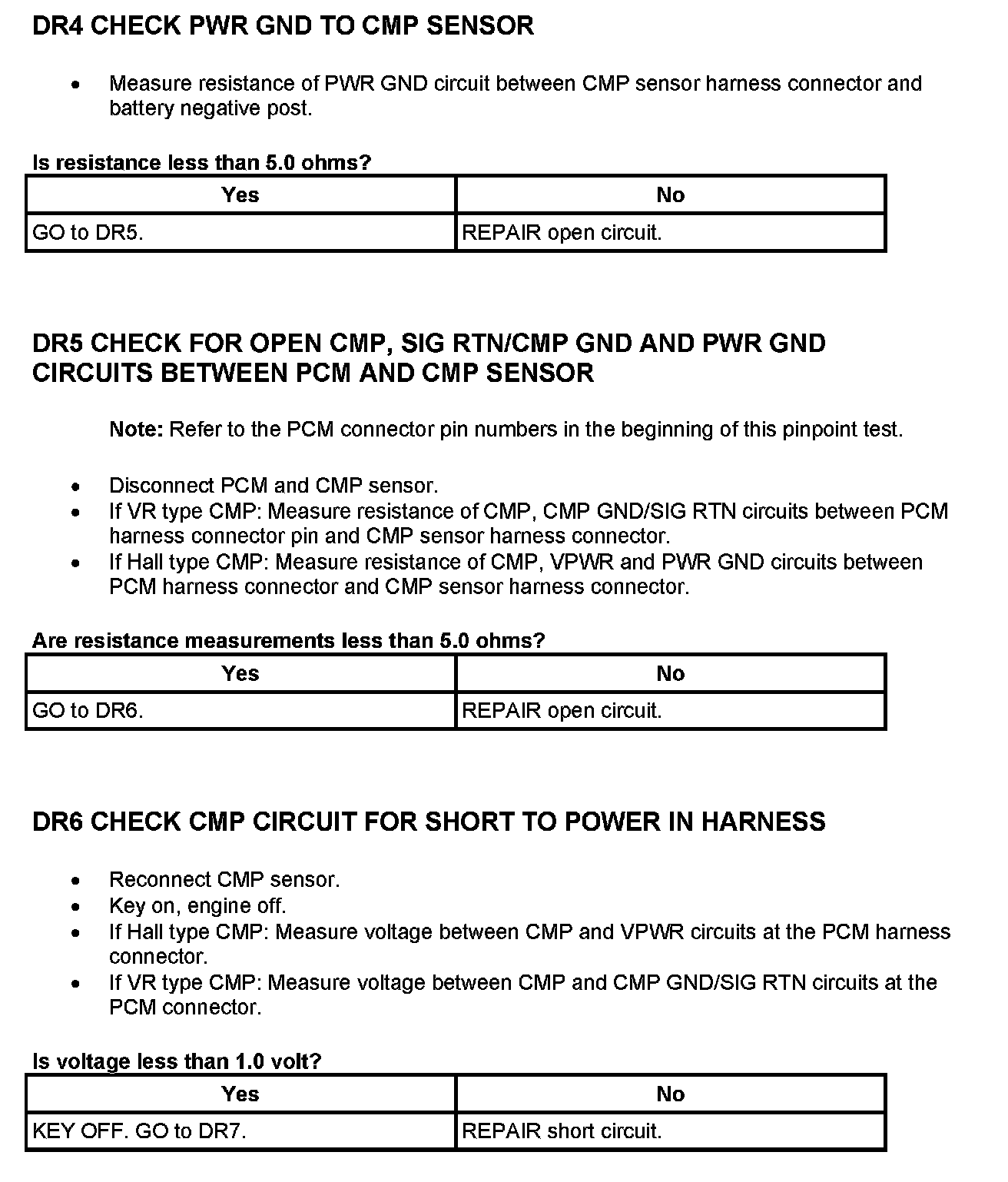

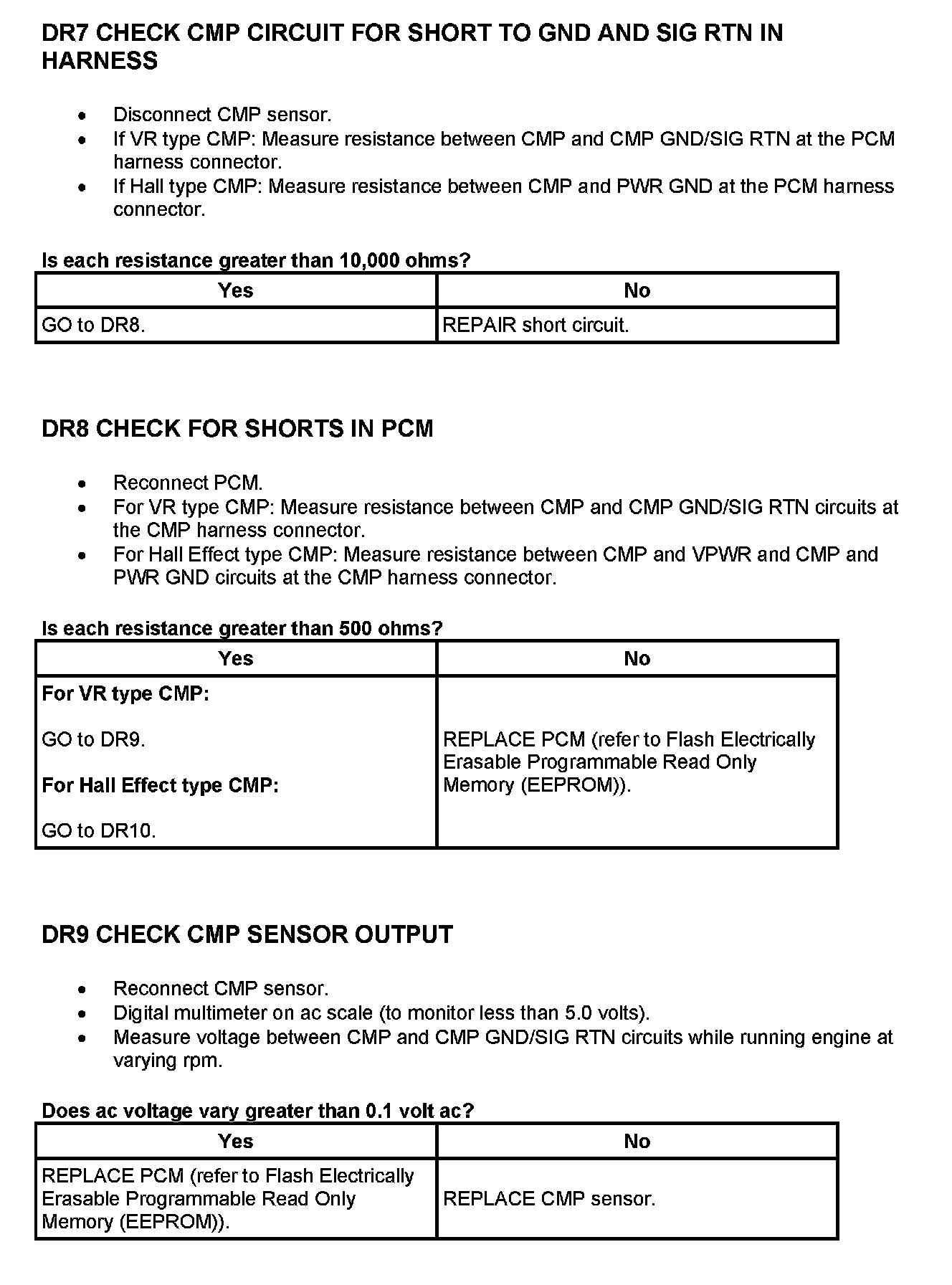

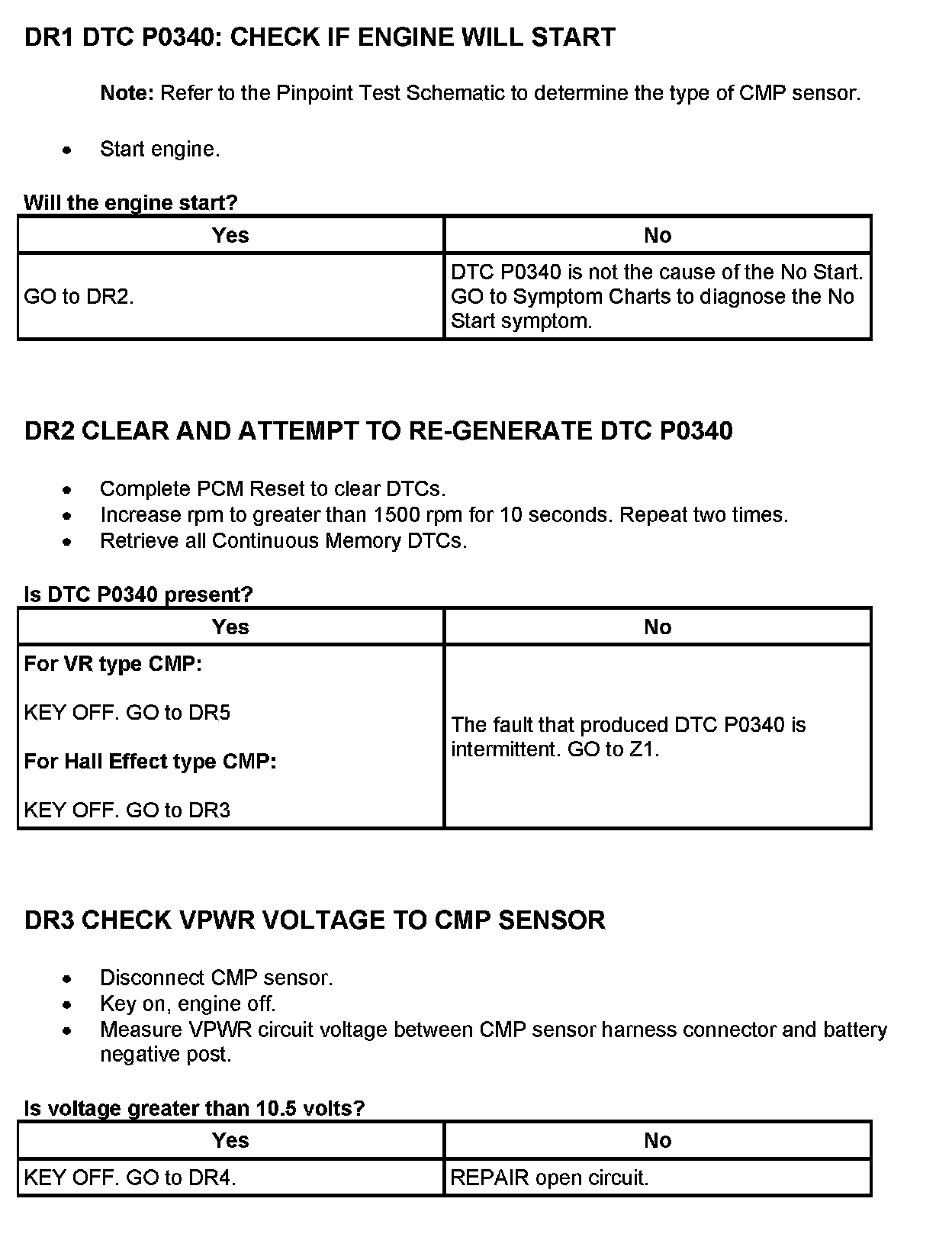

Tests DR: Camshaft Position (CMP) Sensor

NOTE
This Pinpoint Test is intended to diagnose the following:
- Camshaft Position (CMP) Sensor
- Harness Circuits: CMP, VPWR, SIG RTN, PWR GND, CMP/TSS GND
- Powertrain Control Module (PCM)

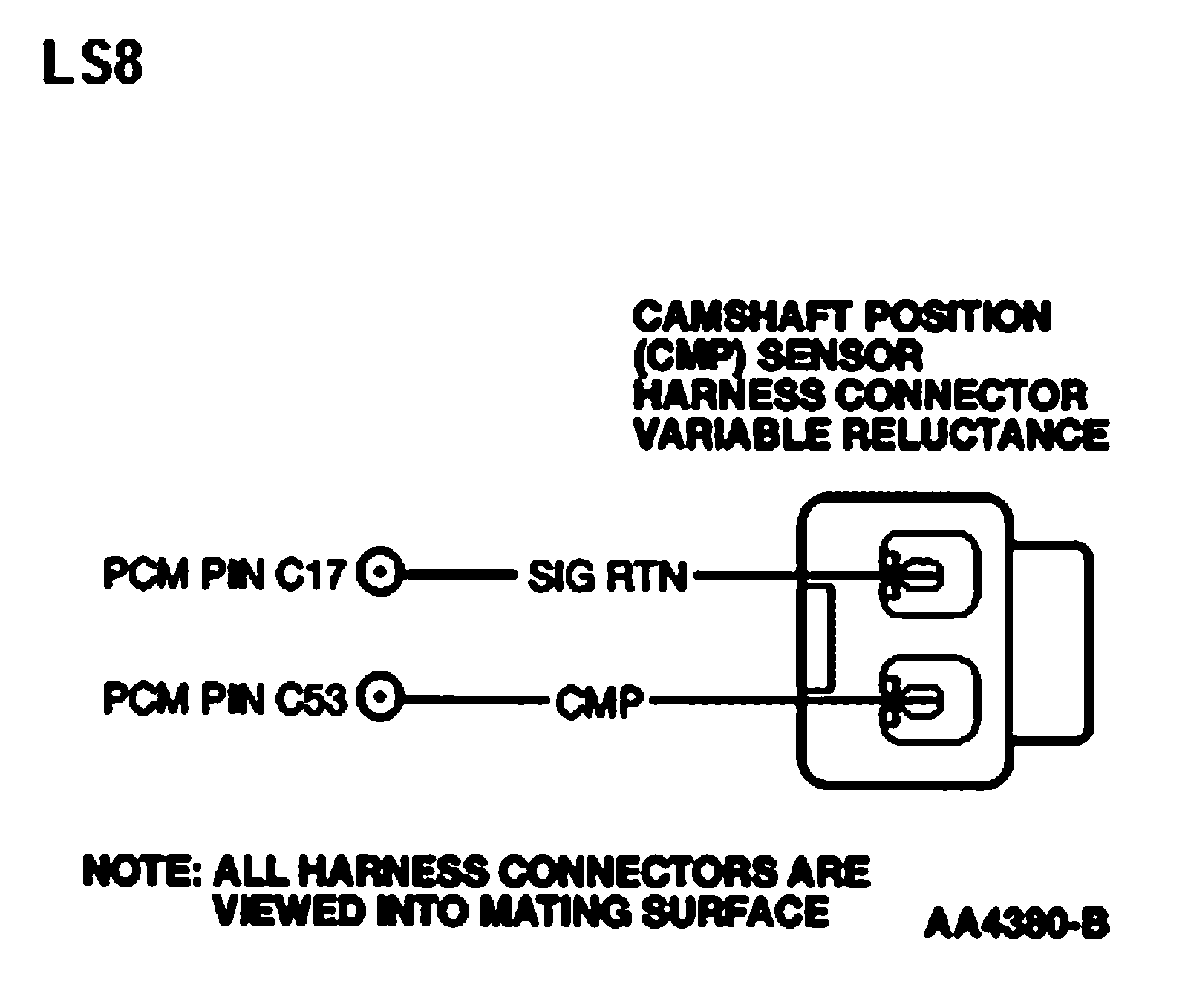

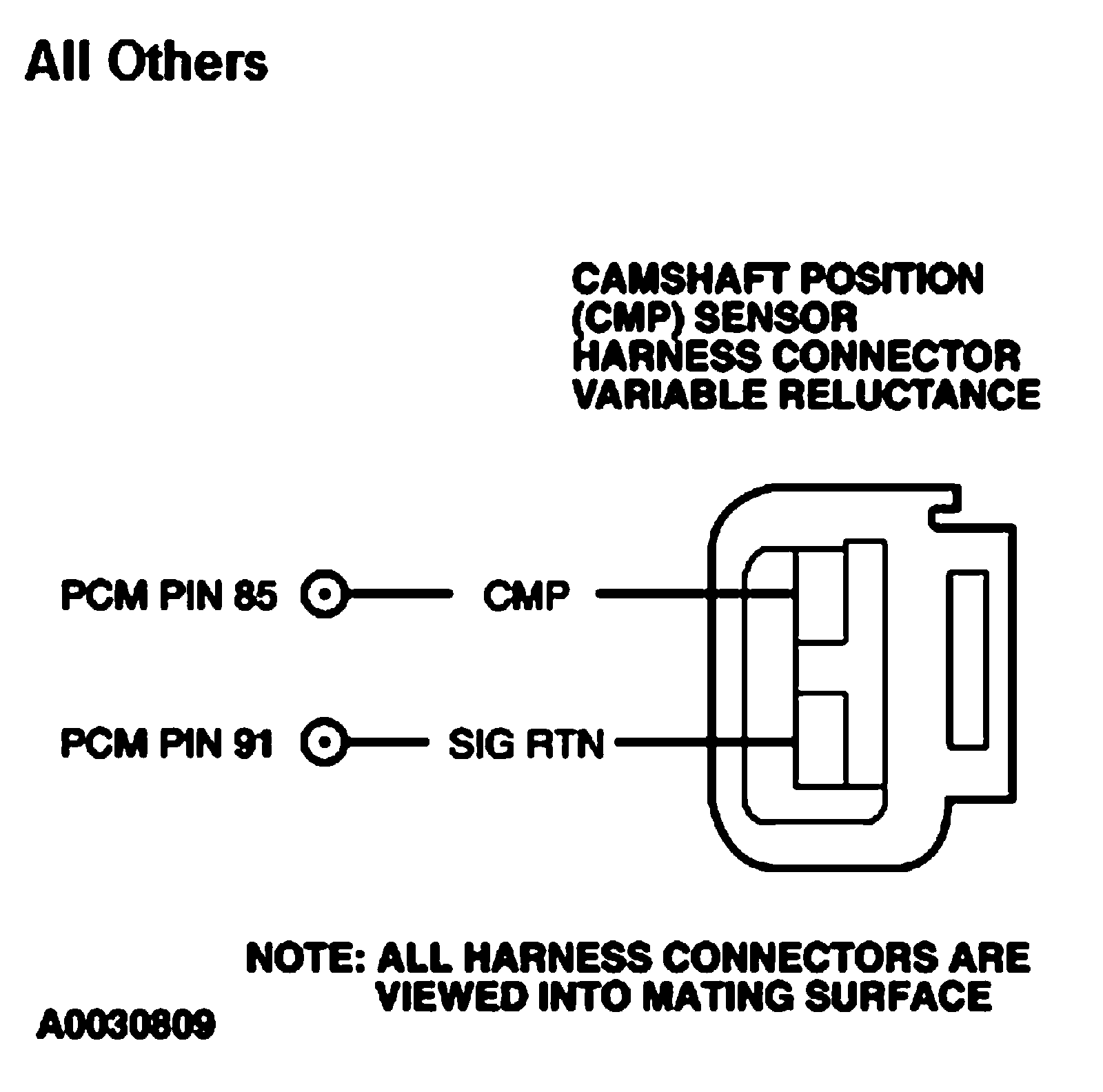

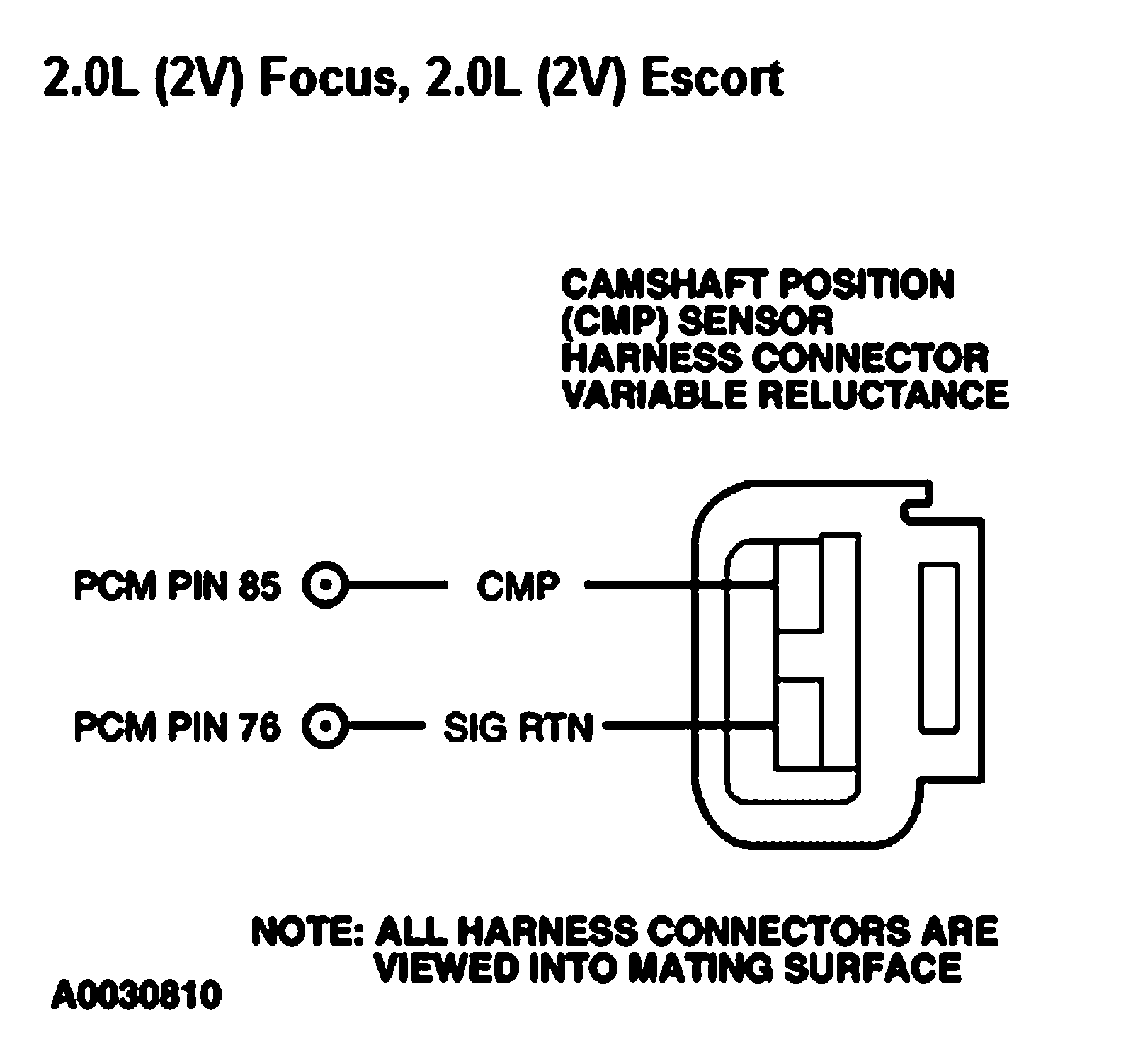

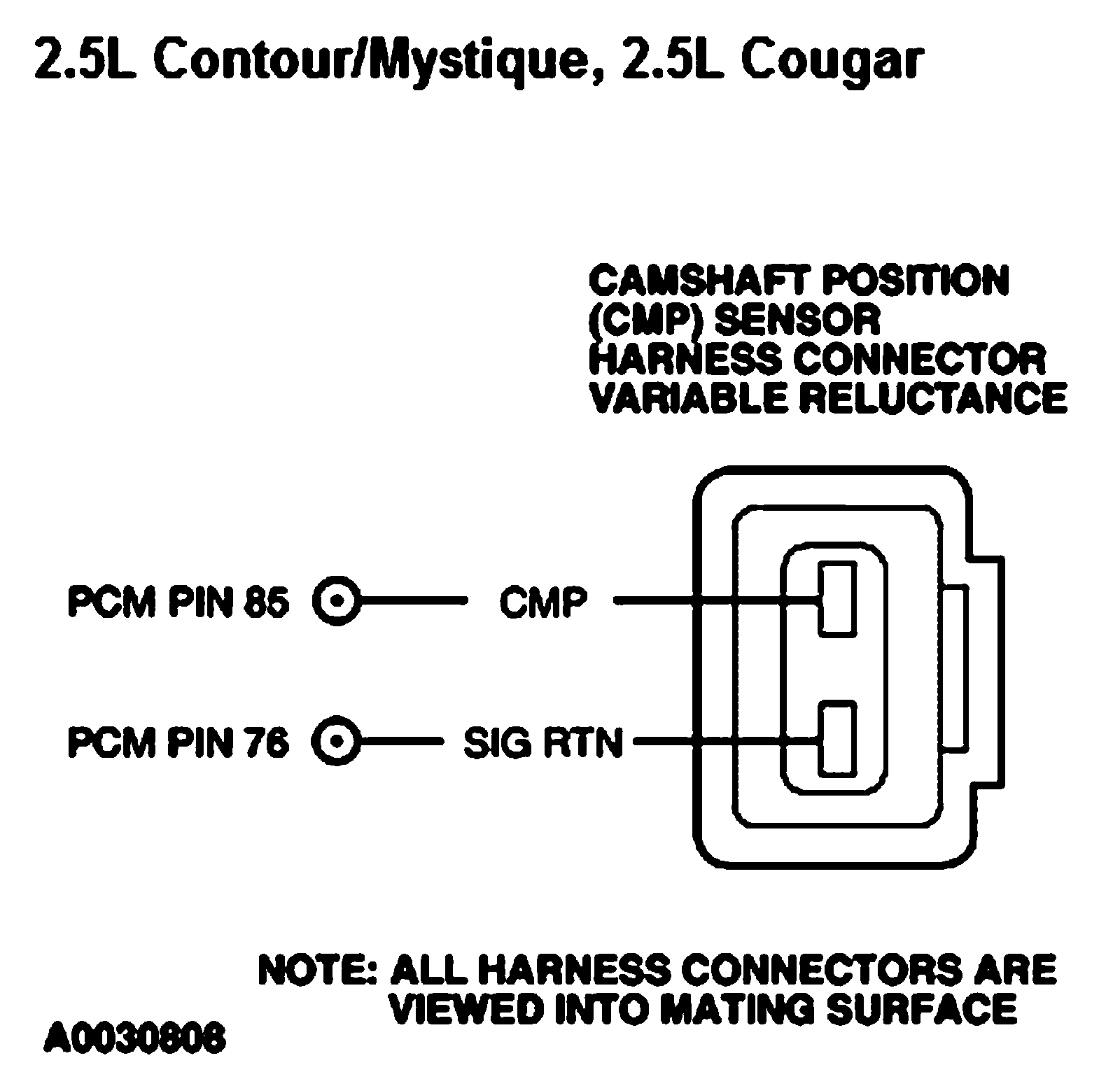

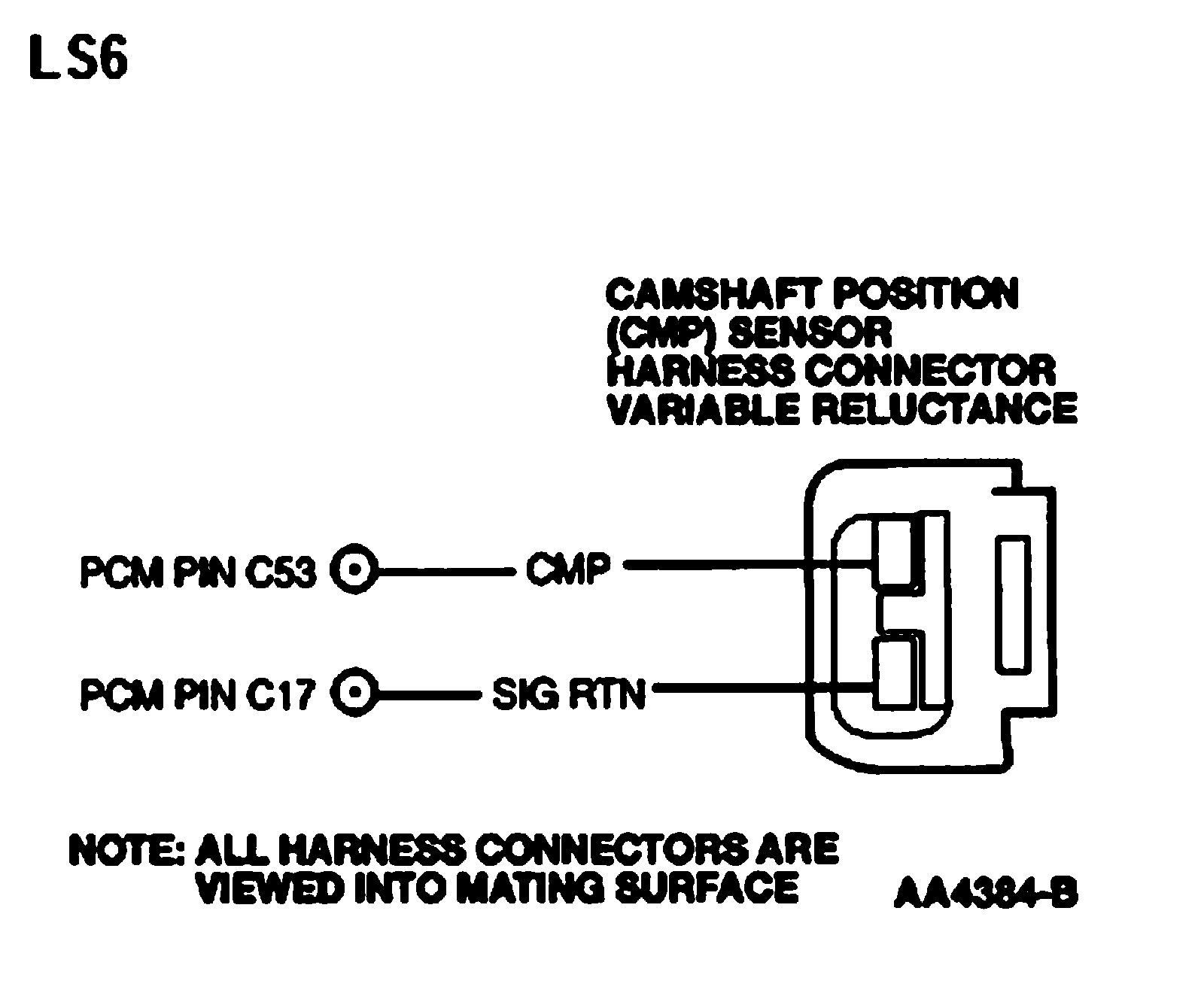

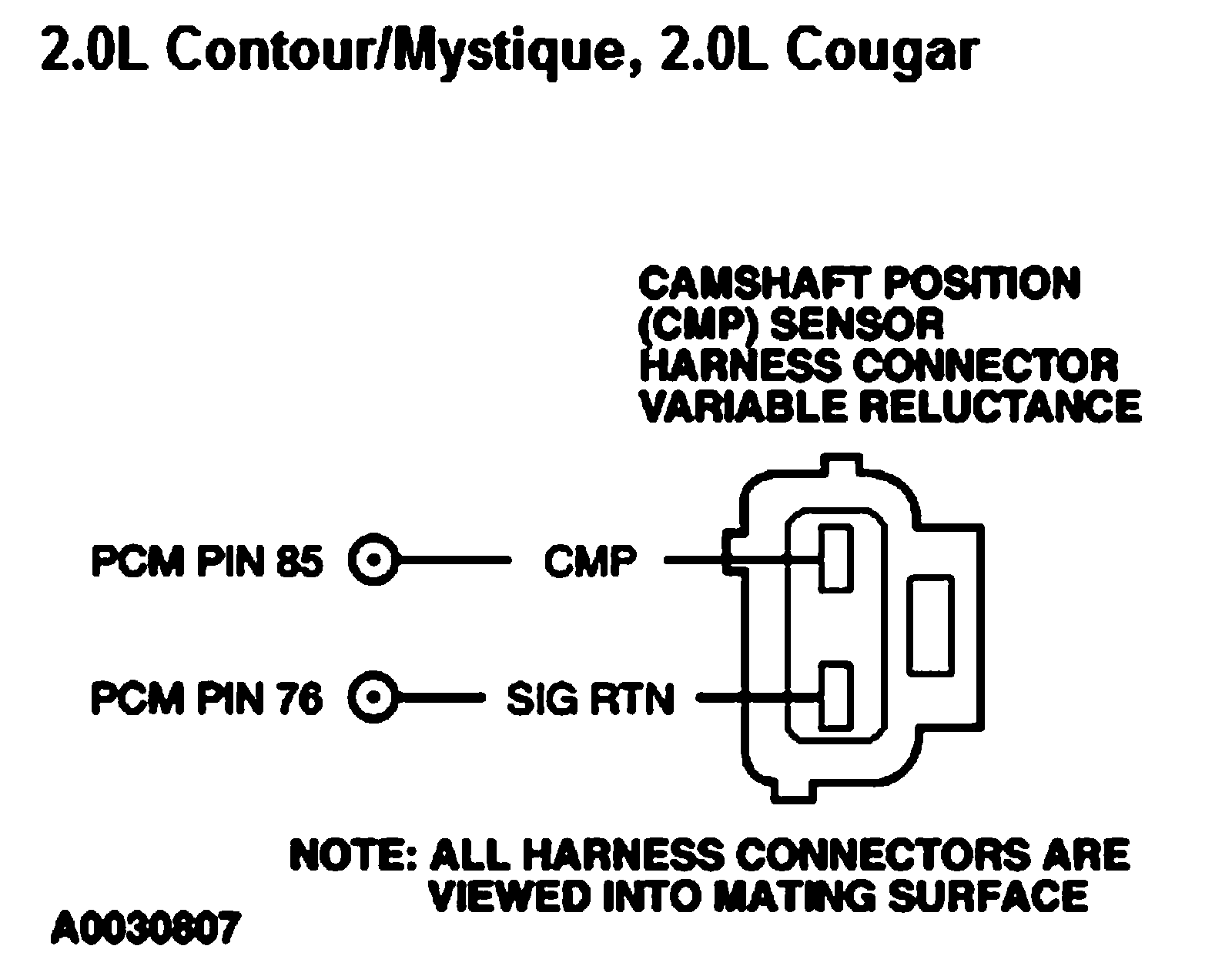

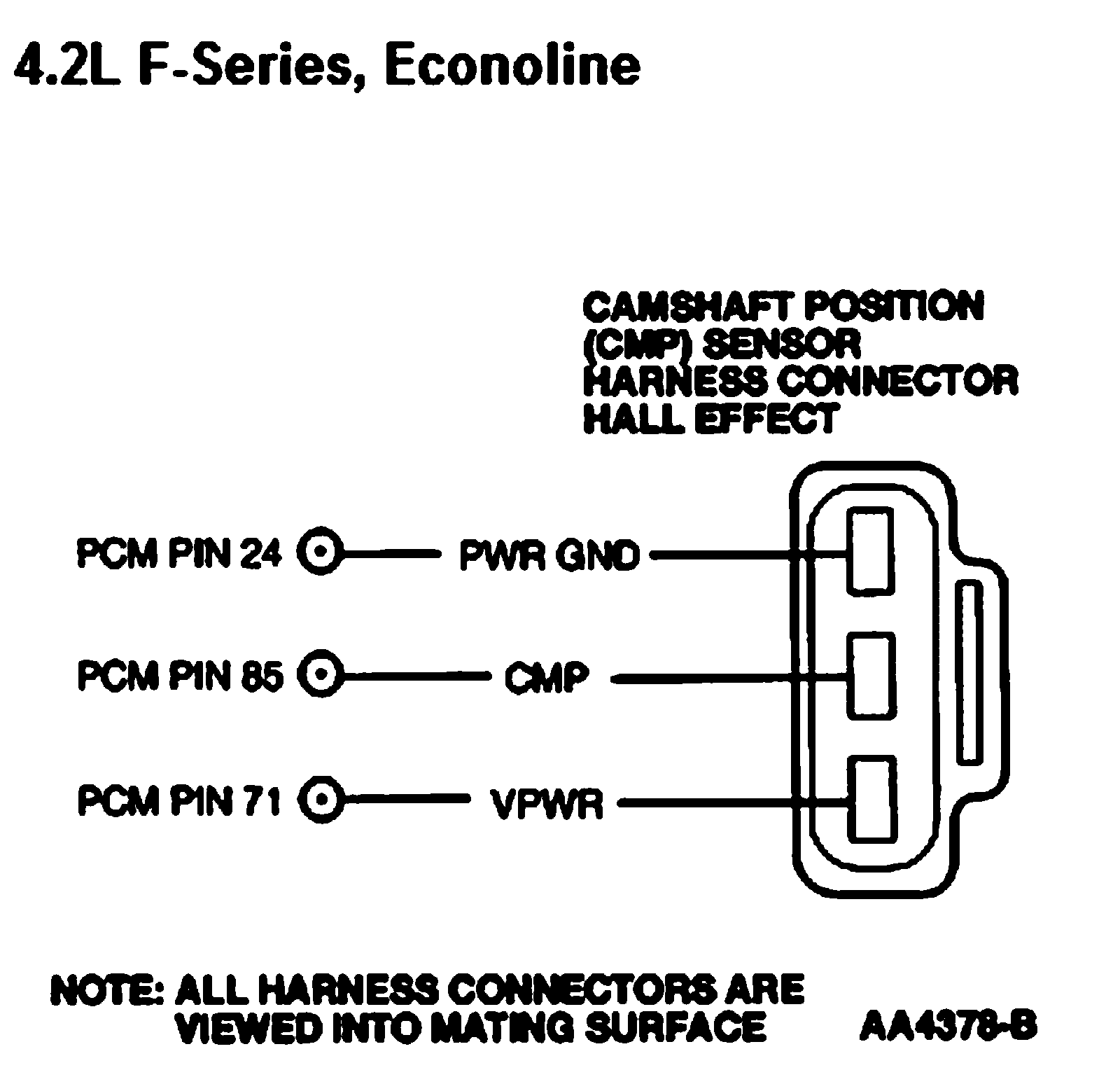

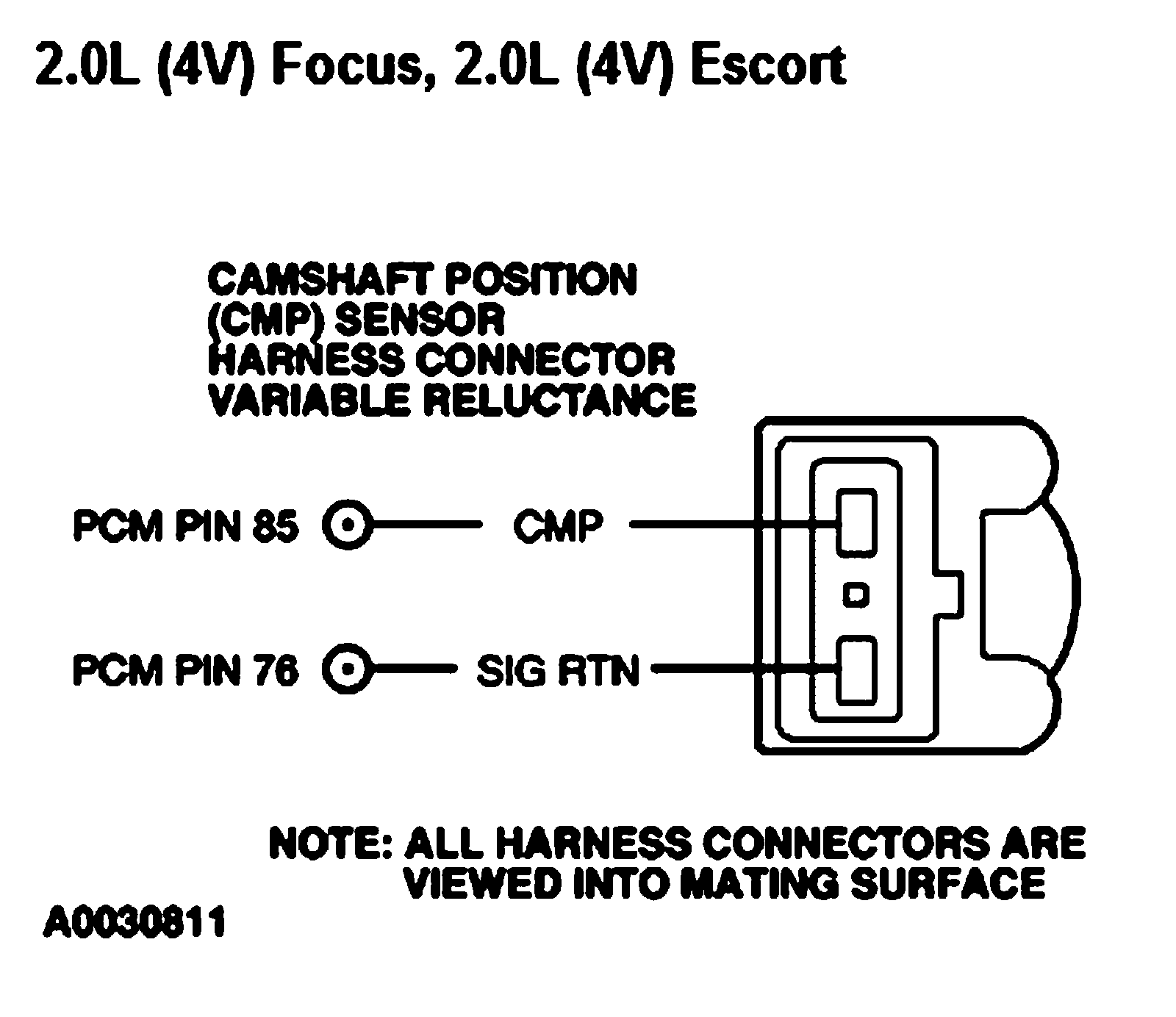

Pinpoint Test Schematics and Connectors
