Home >> Ford >> 2000 >> Excursion 2WD V10-6.8L VIN S >> Repair and Diagnosis >> Heating and Air Conditioning >> Expansion Block/Orifice Tube >> Locations

Expansion Block/Orifice Tube: Locations

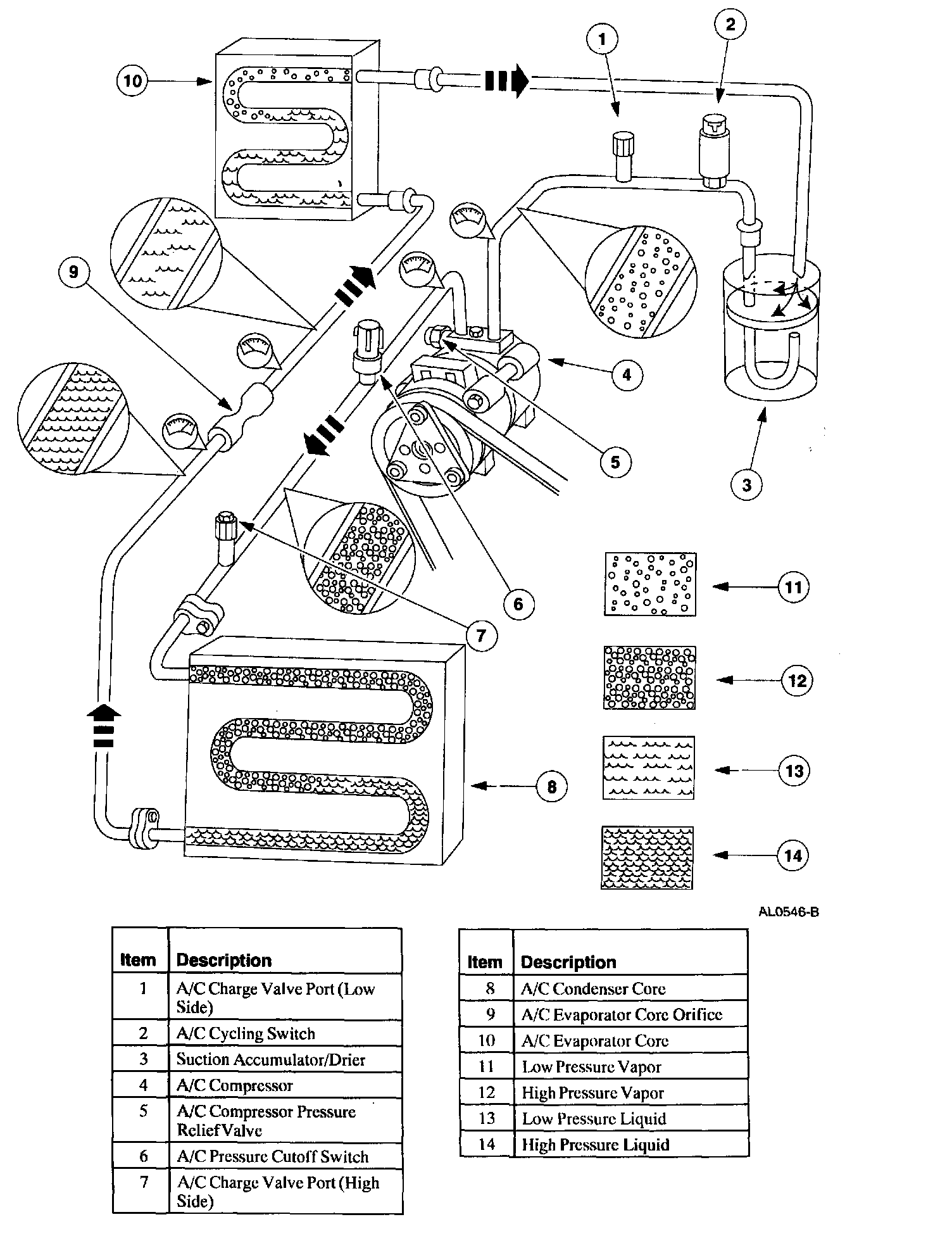

Clutch Cycling Orifice Tube Type Refrigerant System:
