Auxiliary Climate Control

Blower Motor Resistor - Auxiliary

REMOVAL
1. Remove the RH rear quarter trim panel access panel.

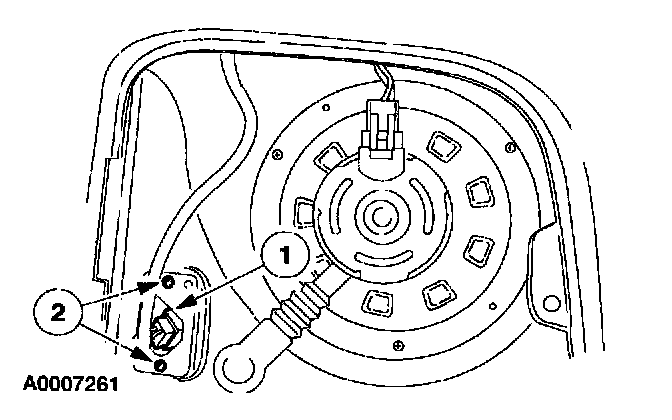

2. Remove the heater blower motor resistor.
1 Disconnect the electrical connector.
2 Remove the screws and remove the blower motor resistor.

INSTALLATION
1. To install, reverse the removal procedure.
