F: C1230-Rear Axle Speed Sensor Input Circuit Failure
F: C1230-Rear Axle Speed Sensor Input Circuit Failure

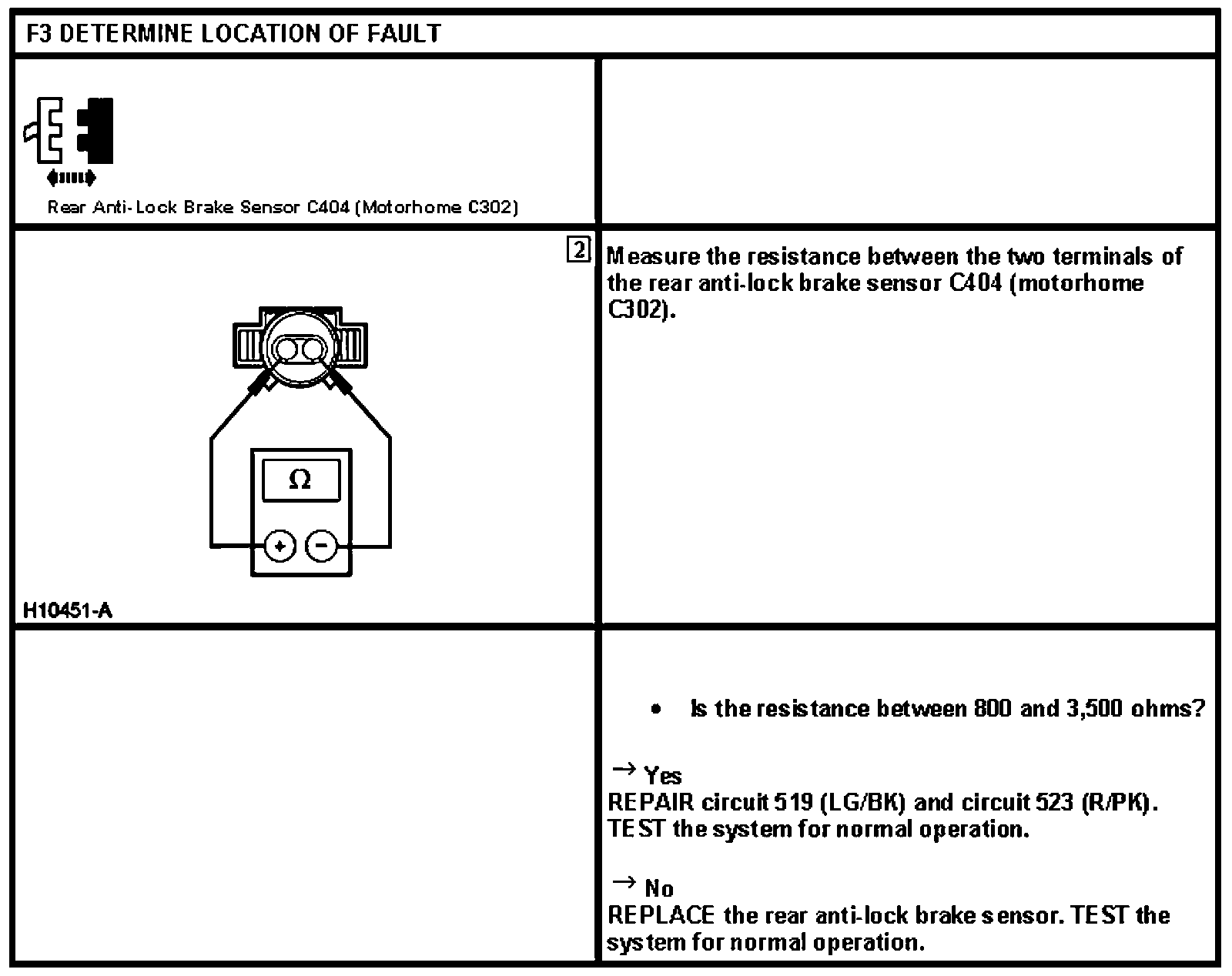

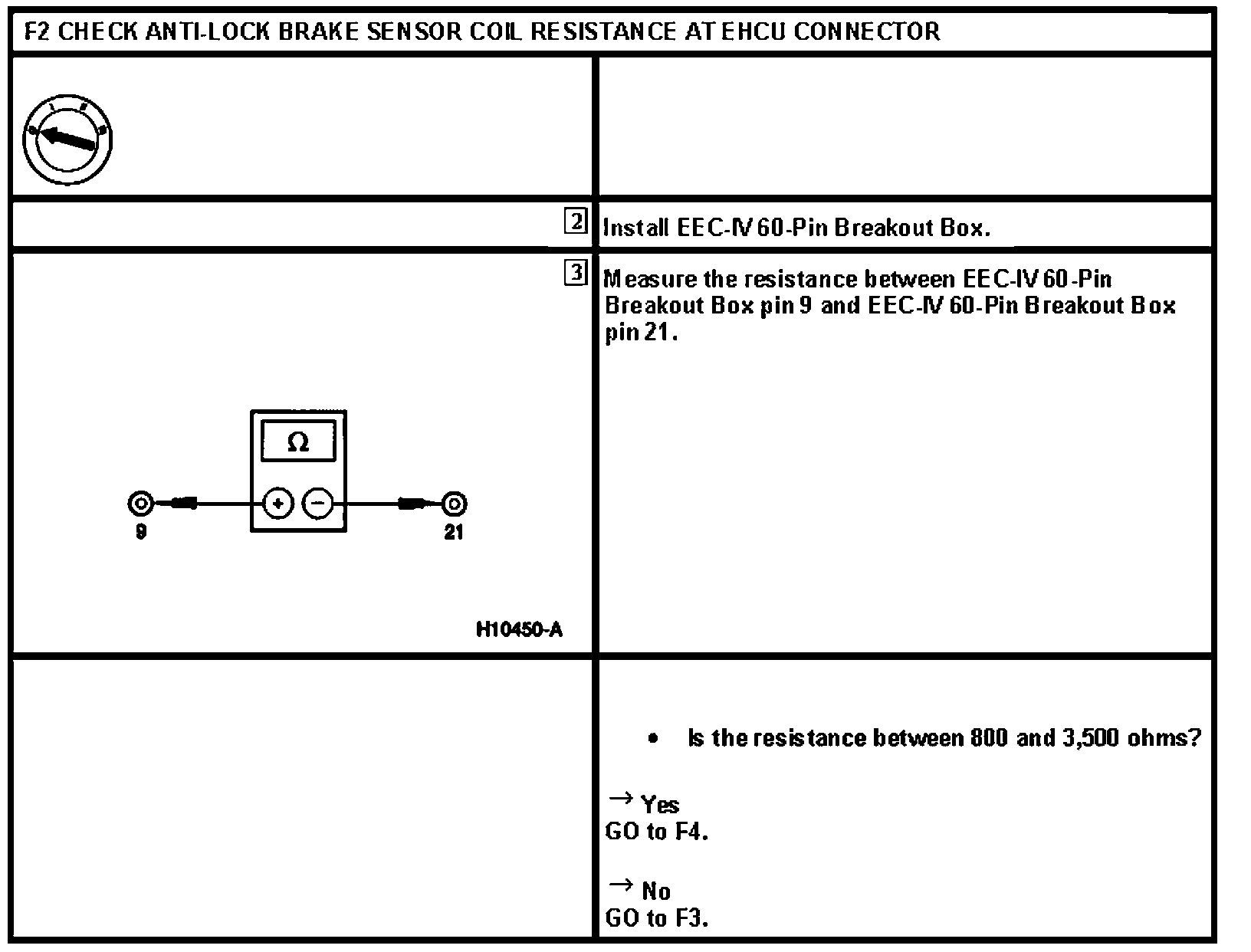

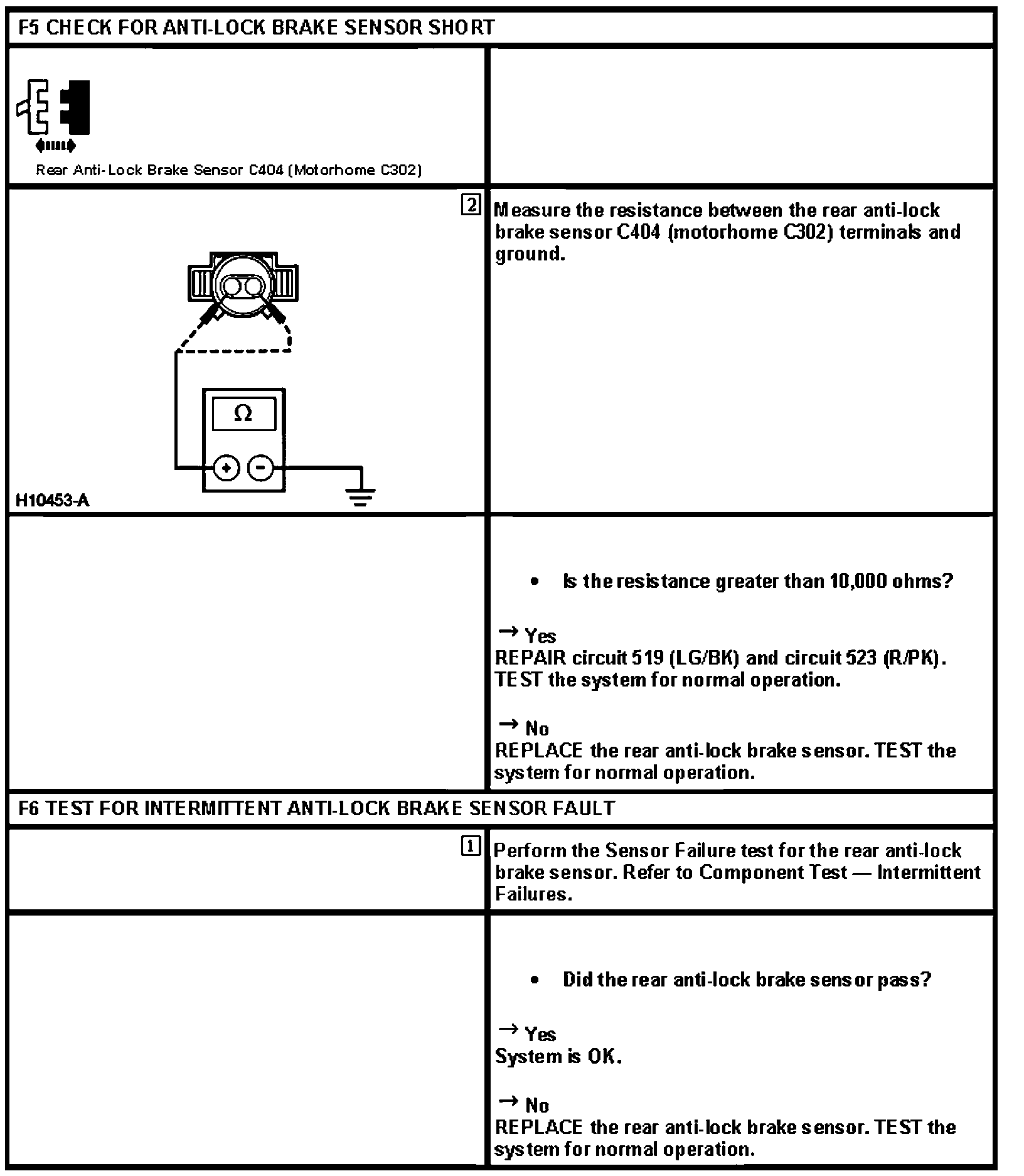

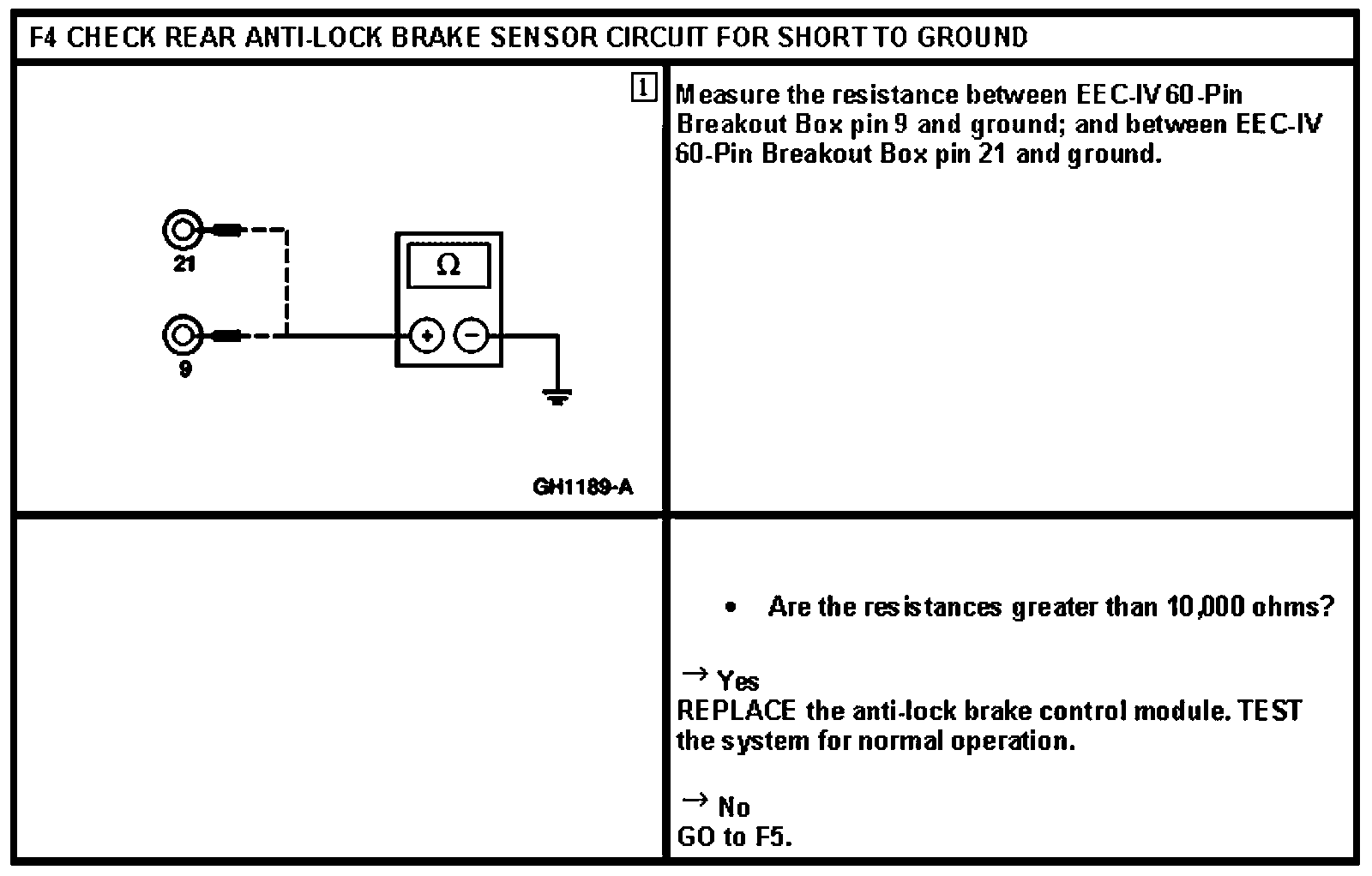

PINPOINT TEST F: DTC C1230 - REAR
ANTI-LOCK BRAKE SENSOR
(ELECTRICAL/STATIC)
