Home >> Ford >> 2000 >> Econoline E150 1/2 Ton V6-4.2L VIN 2 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Front Door

Front Door

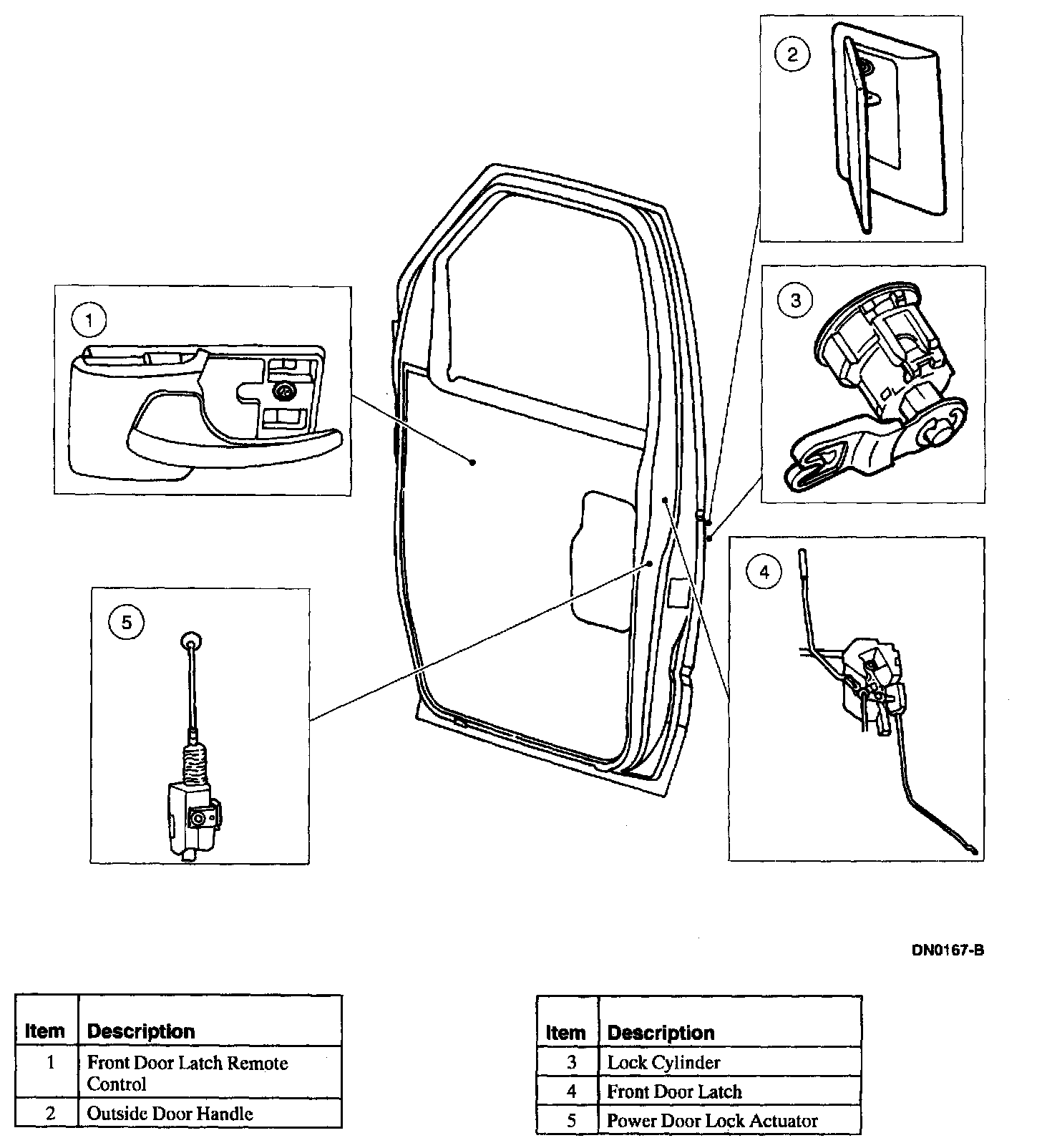

Handle, Lock, Latch And Actuator (RH Shown, LH Symmetrically Opposite):
