Windstar V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
Engine

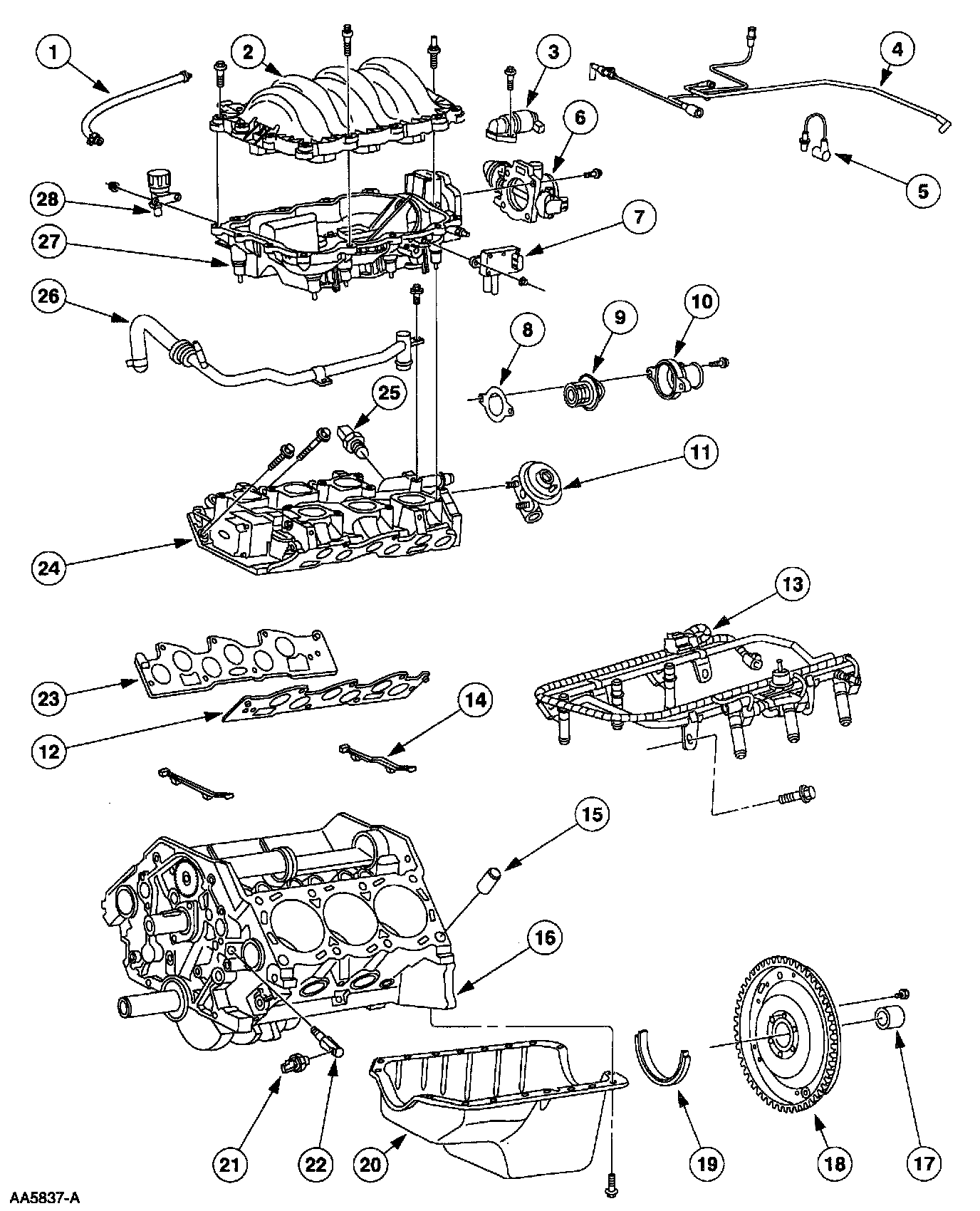

Exploded View:

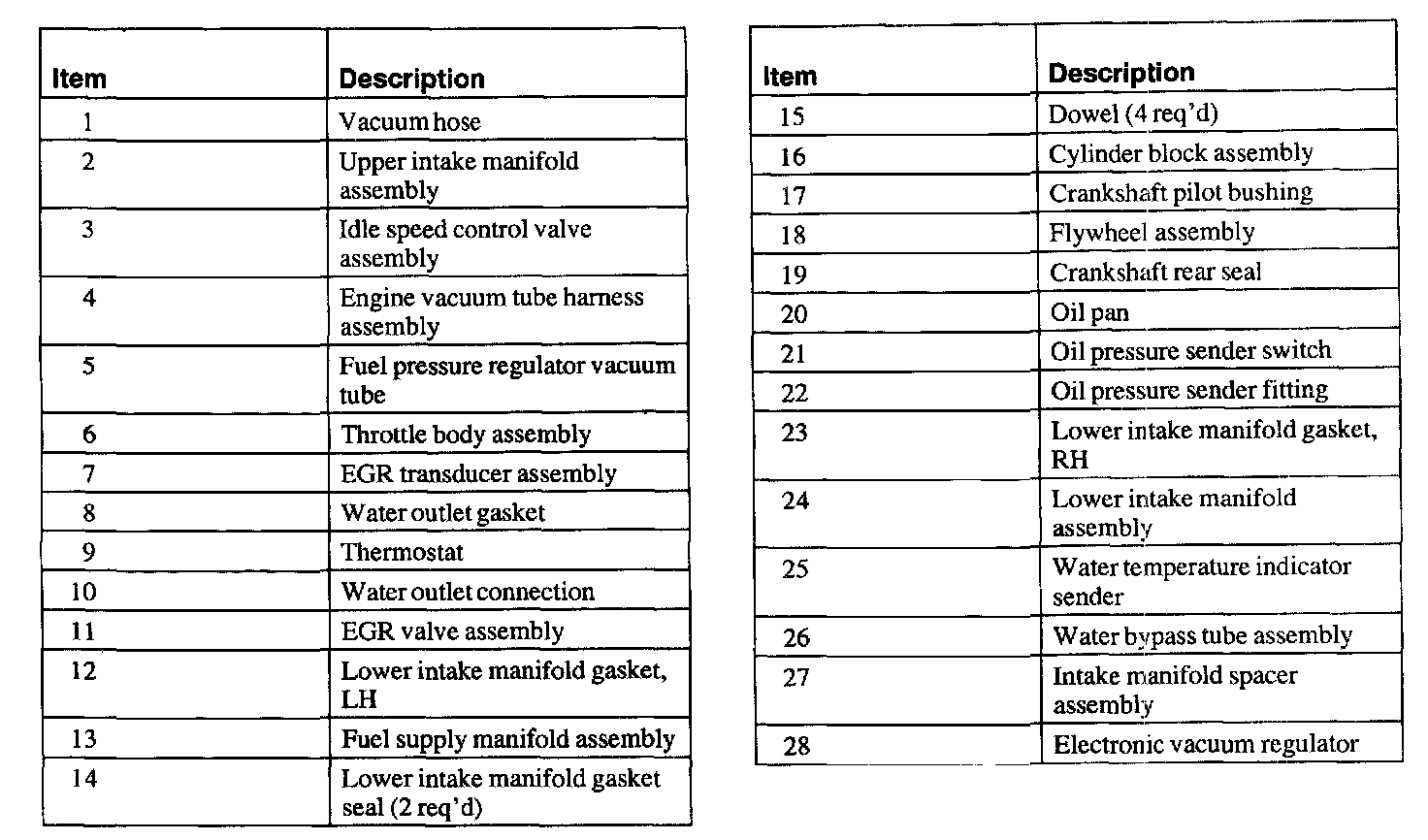

Legend:
Cylinder Head

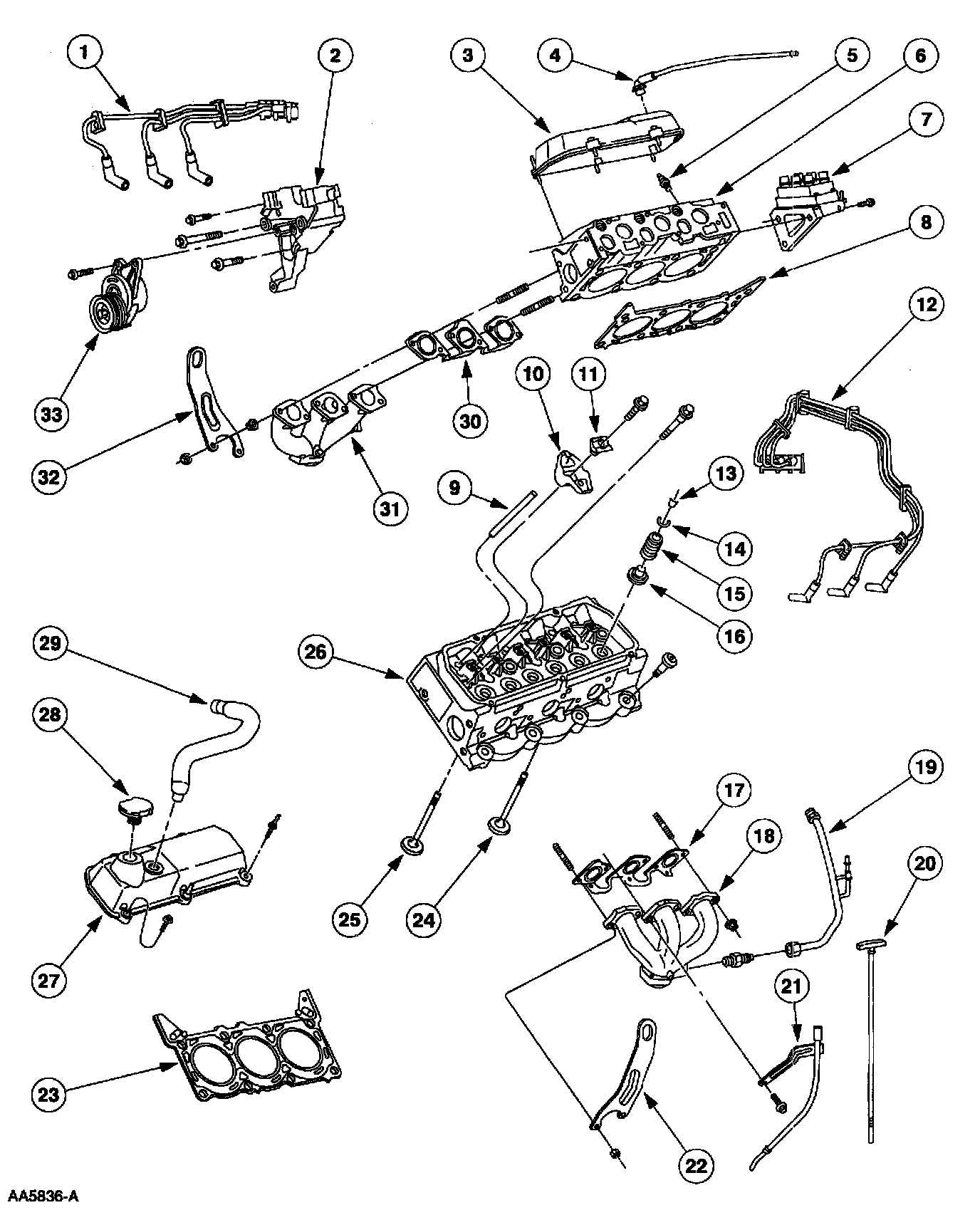

Exploded View:

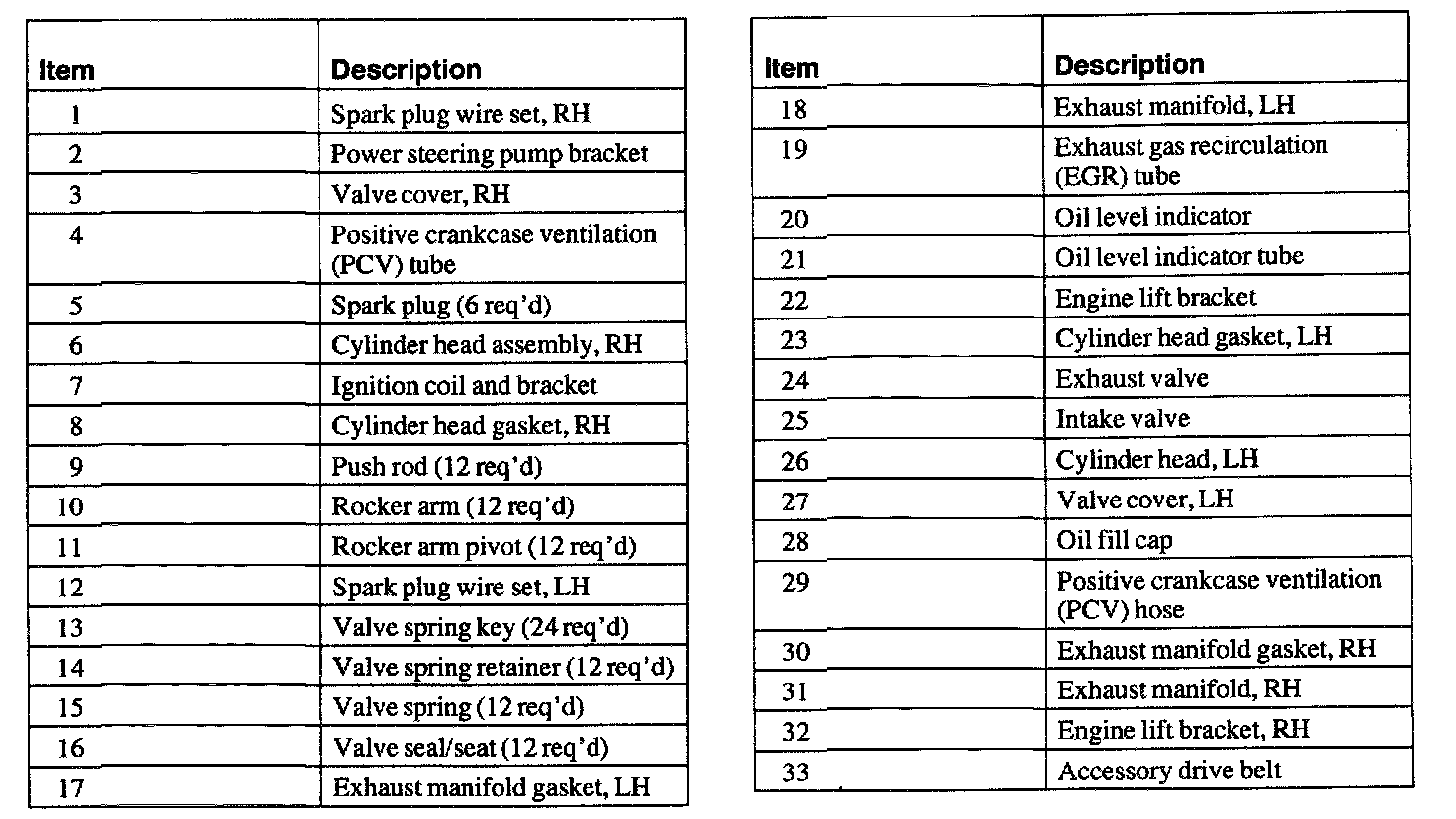

Legend:
Engine - Front

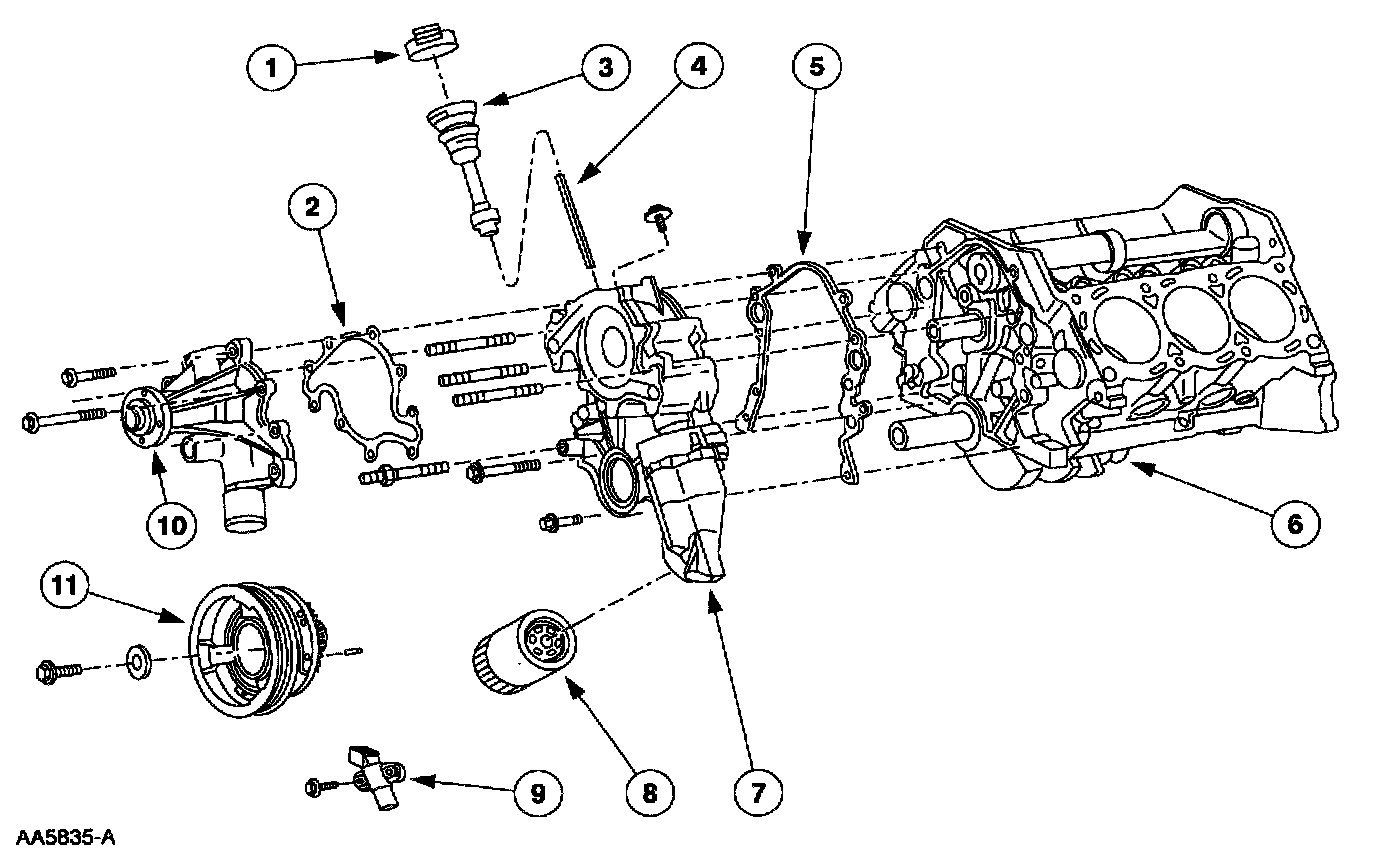

Exploded View:
Legend:
Engine - Upper

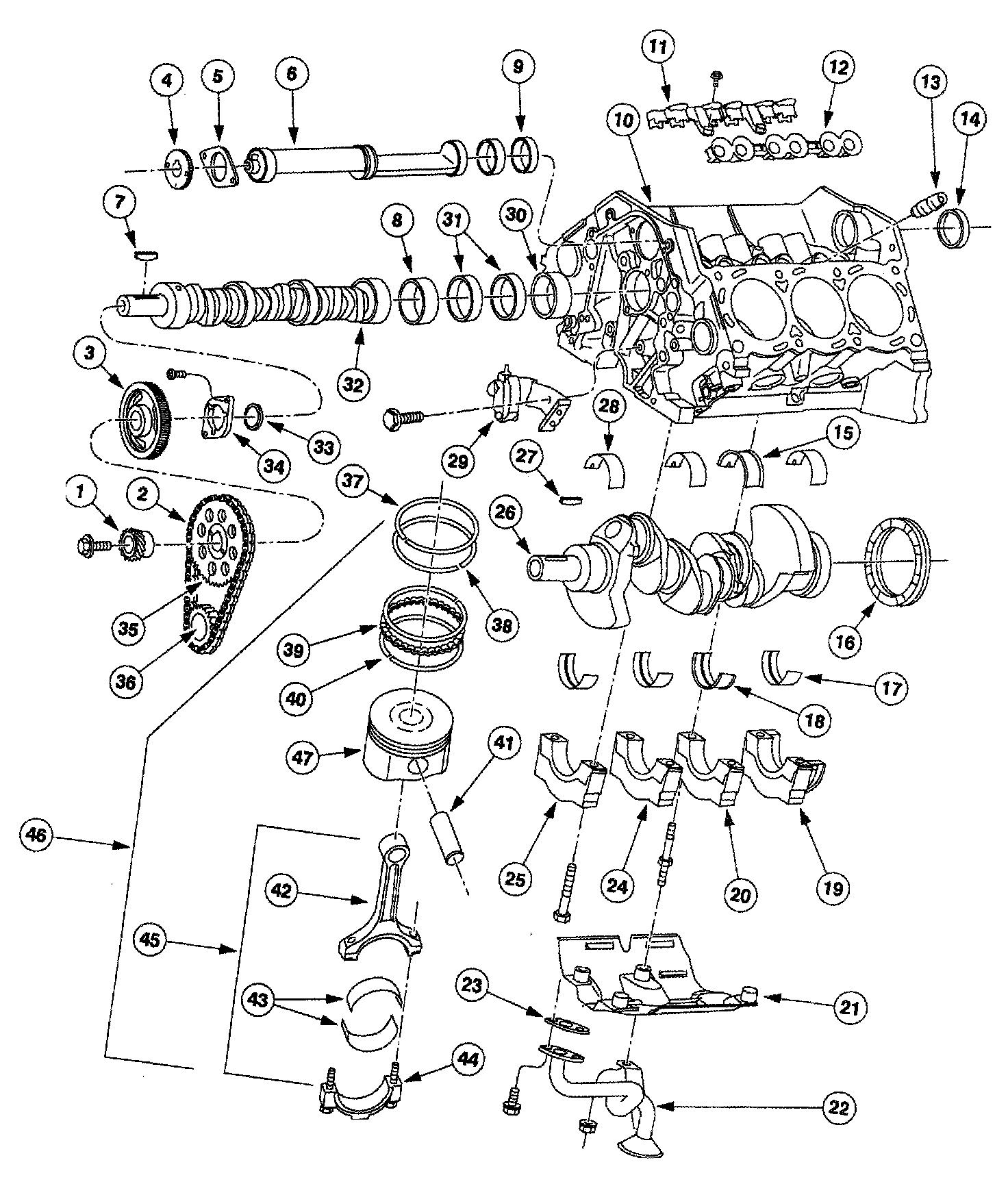

Exploded View:

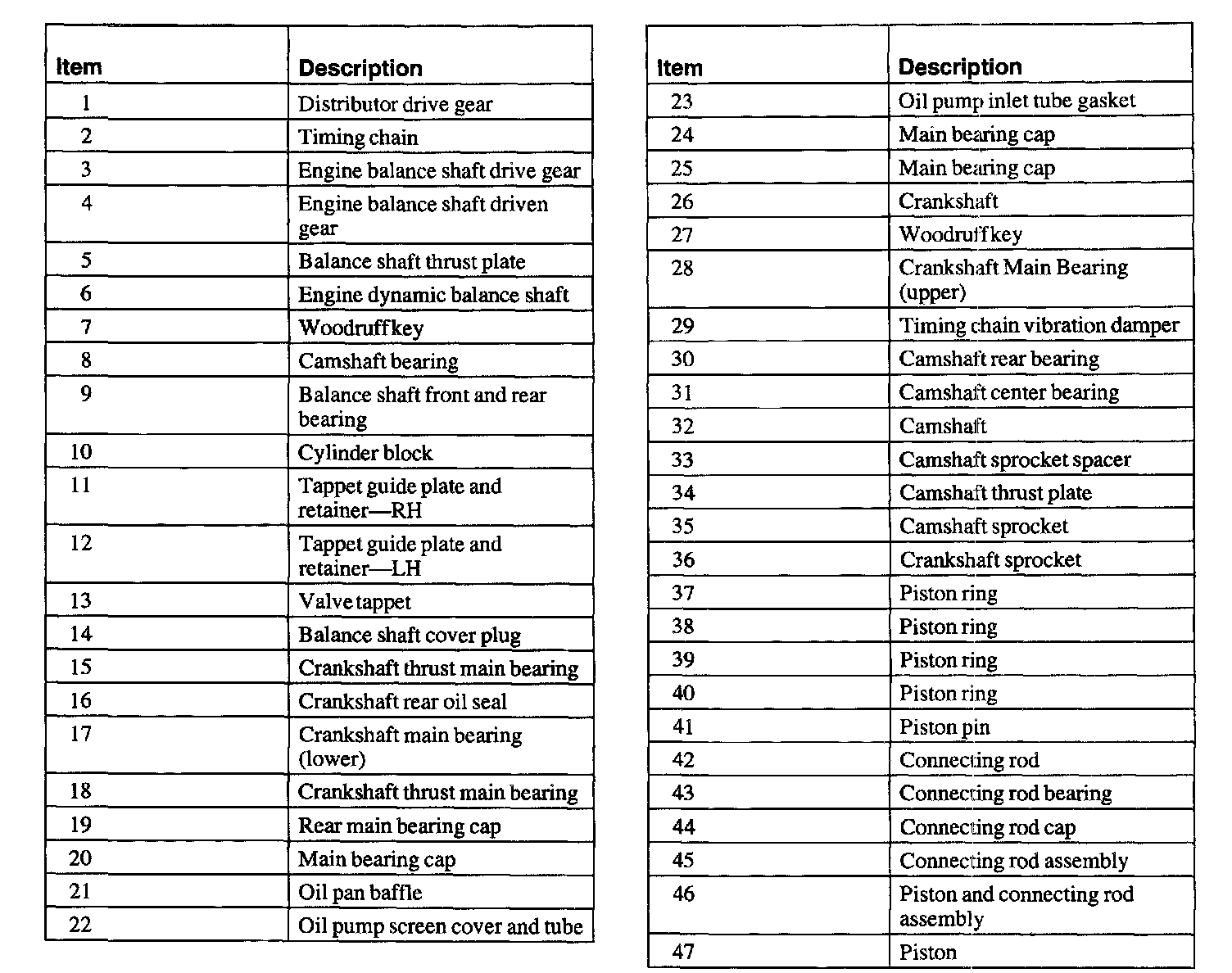

Legend:
Engine - Lower
