Automatic Transmission/Transaxle
>>
AX4S
AX4S
1 of 7:
2 Of 7:
3 Of 7:
4 Of 7:
5 Of 7:
6 Of 7:
7 Of 7:

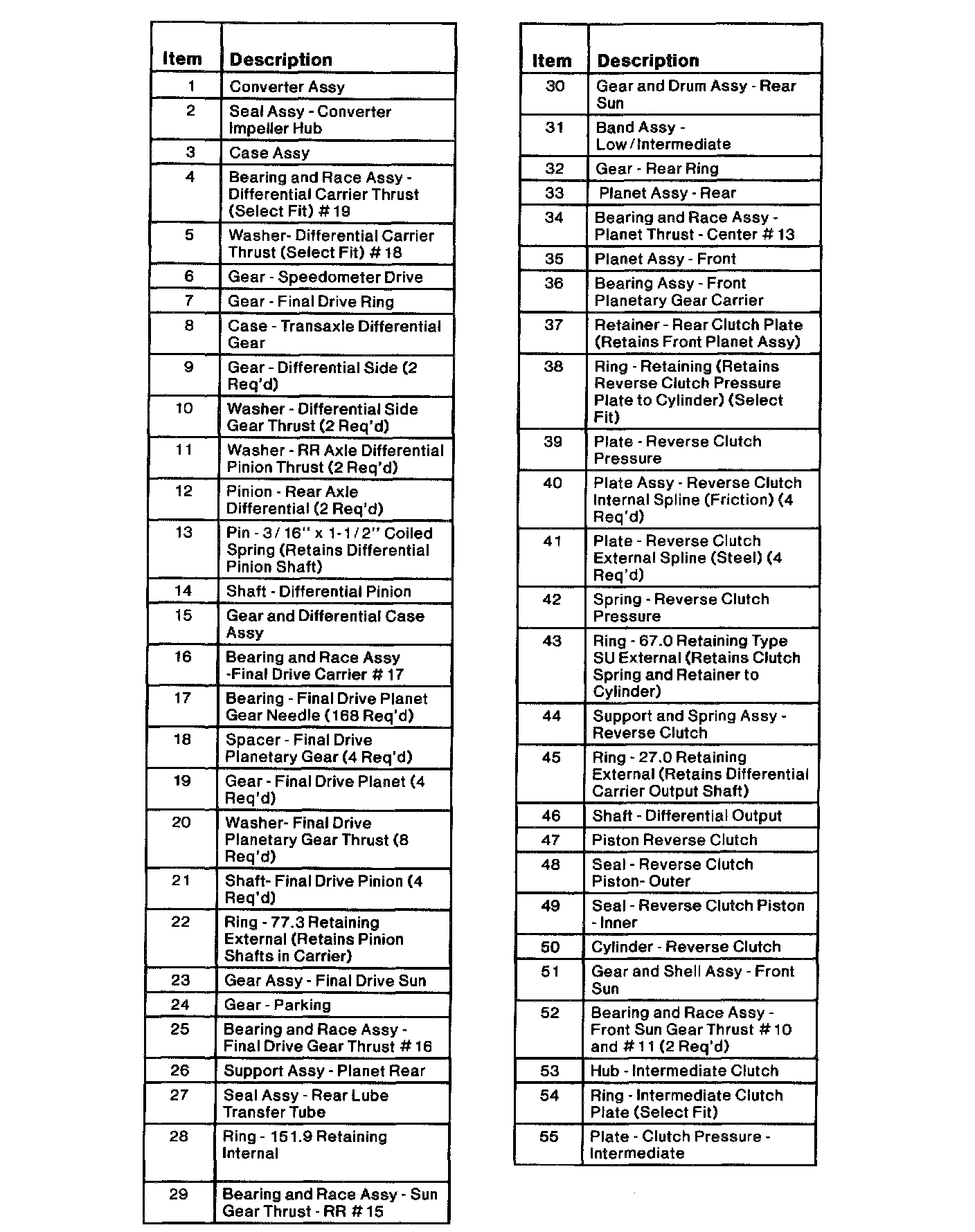

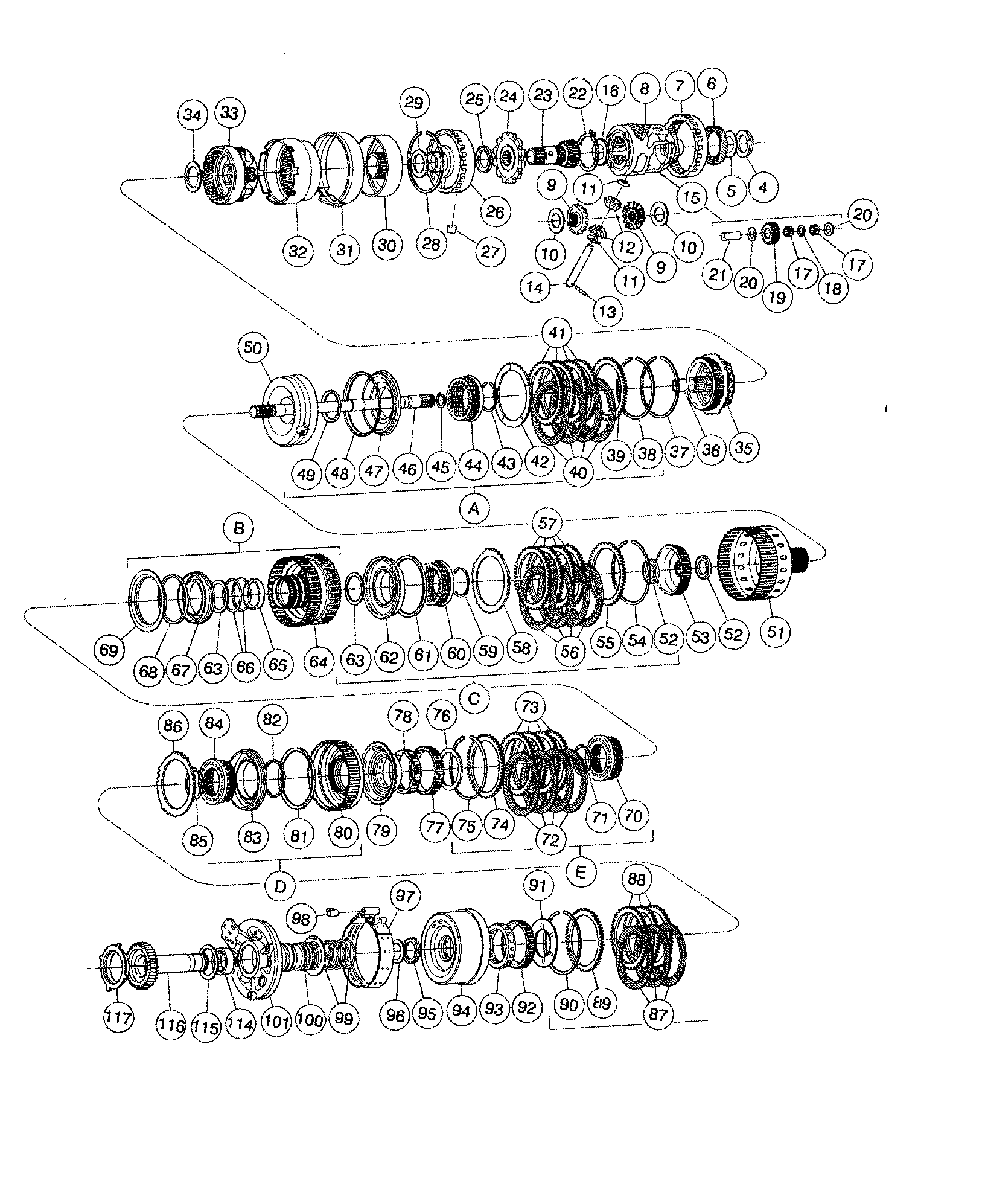

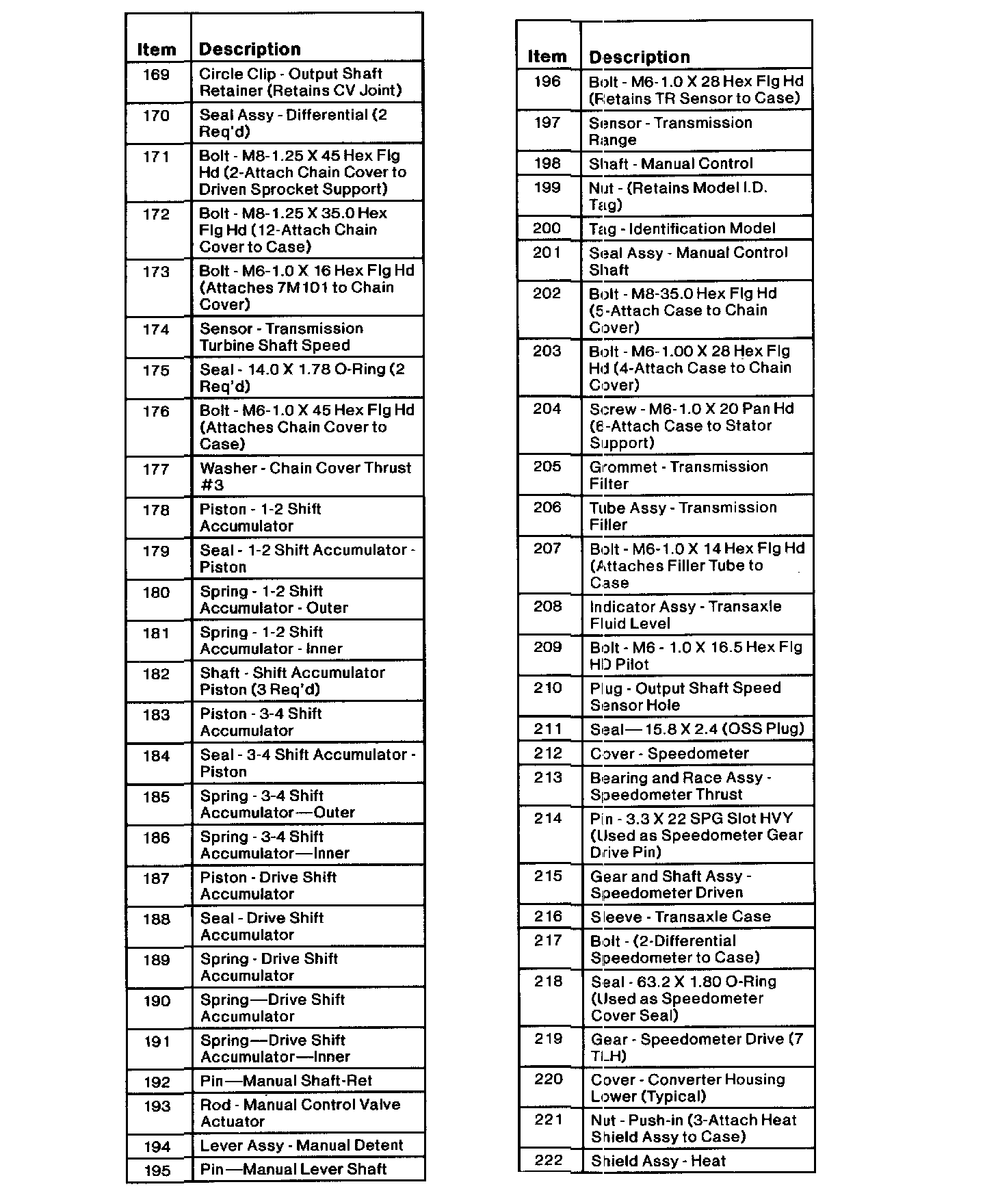

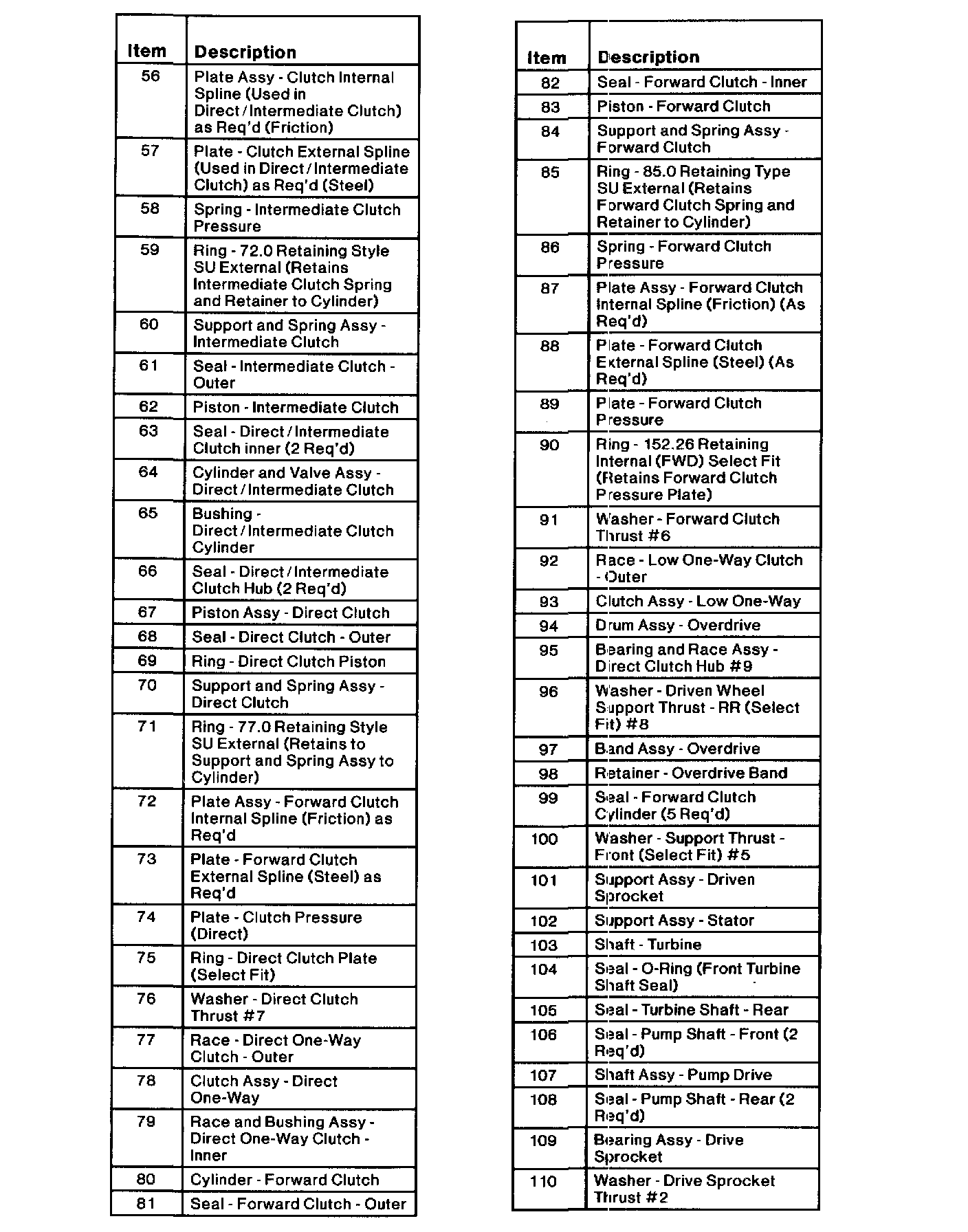

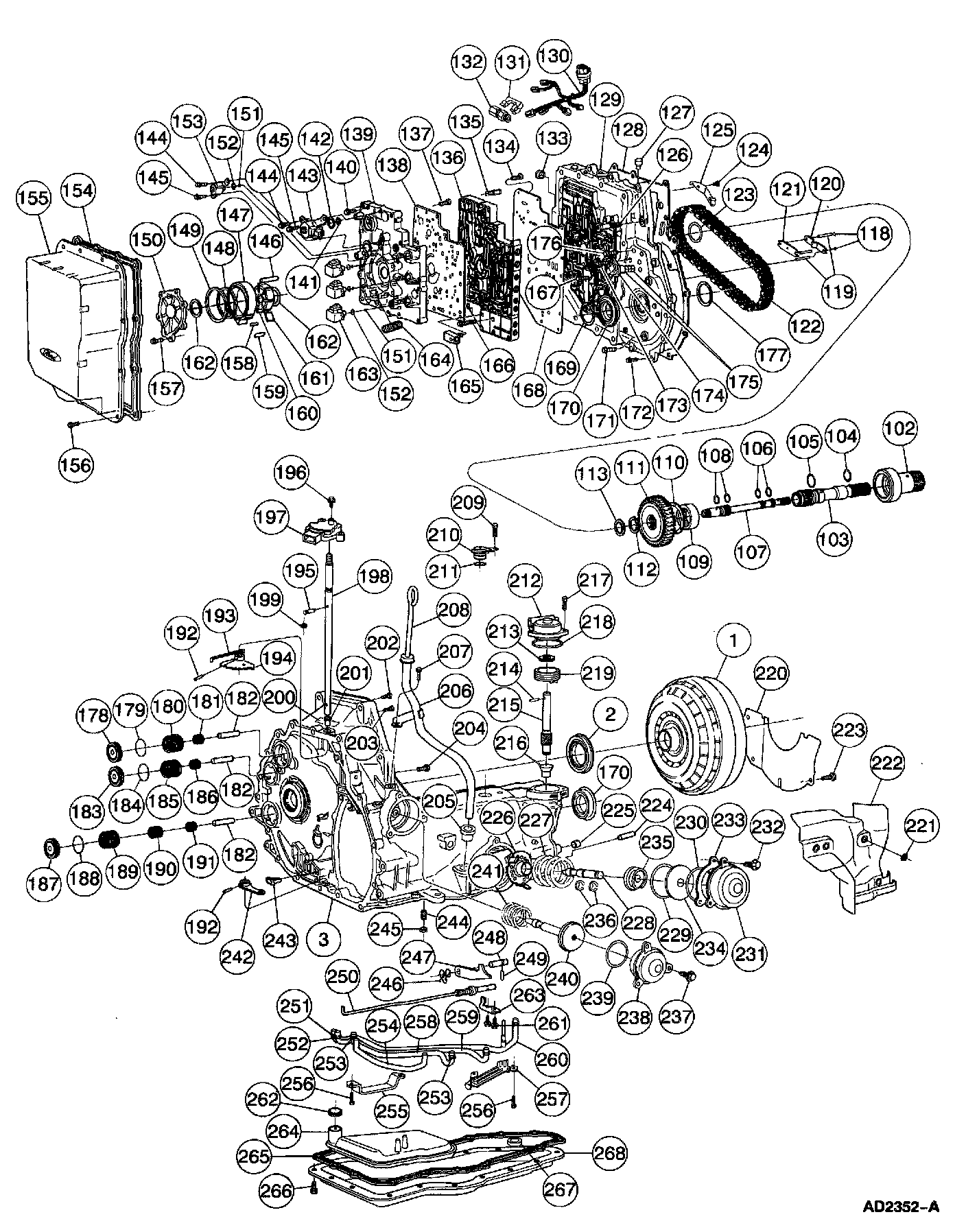

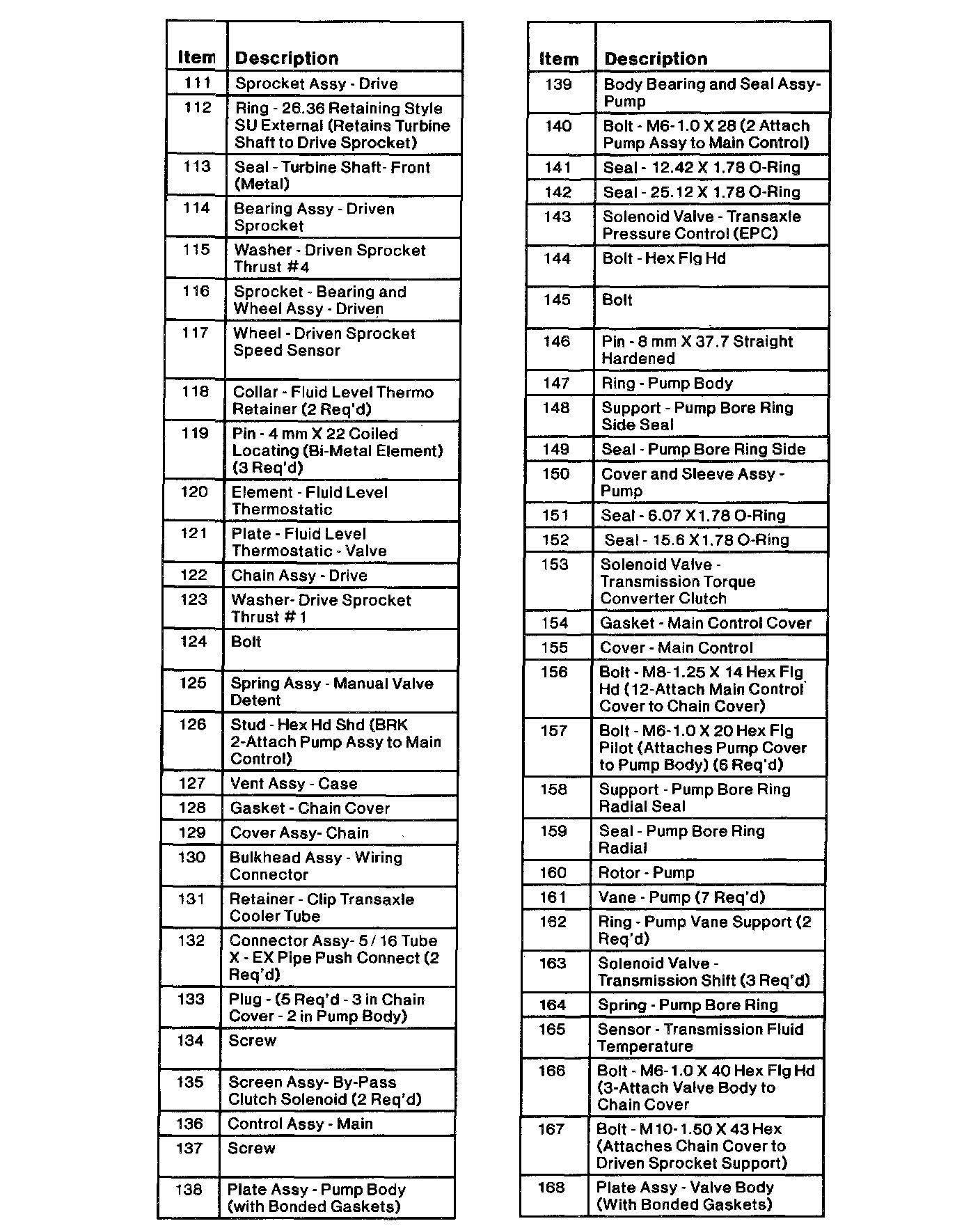

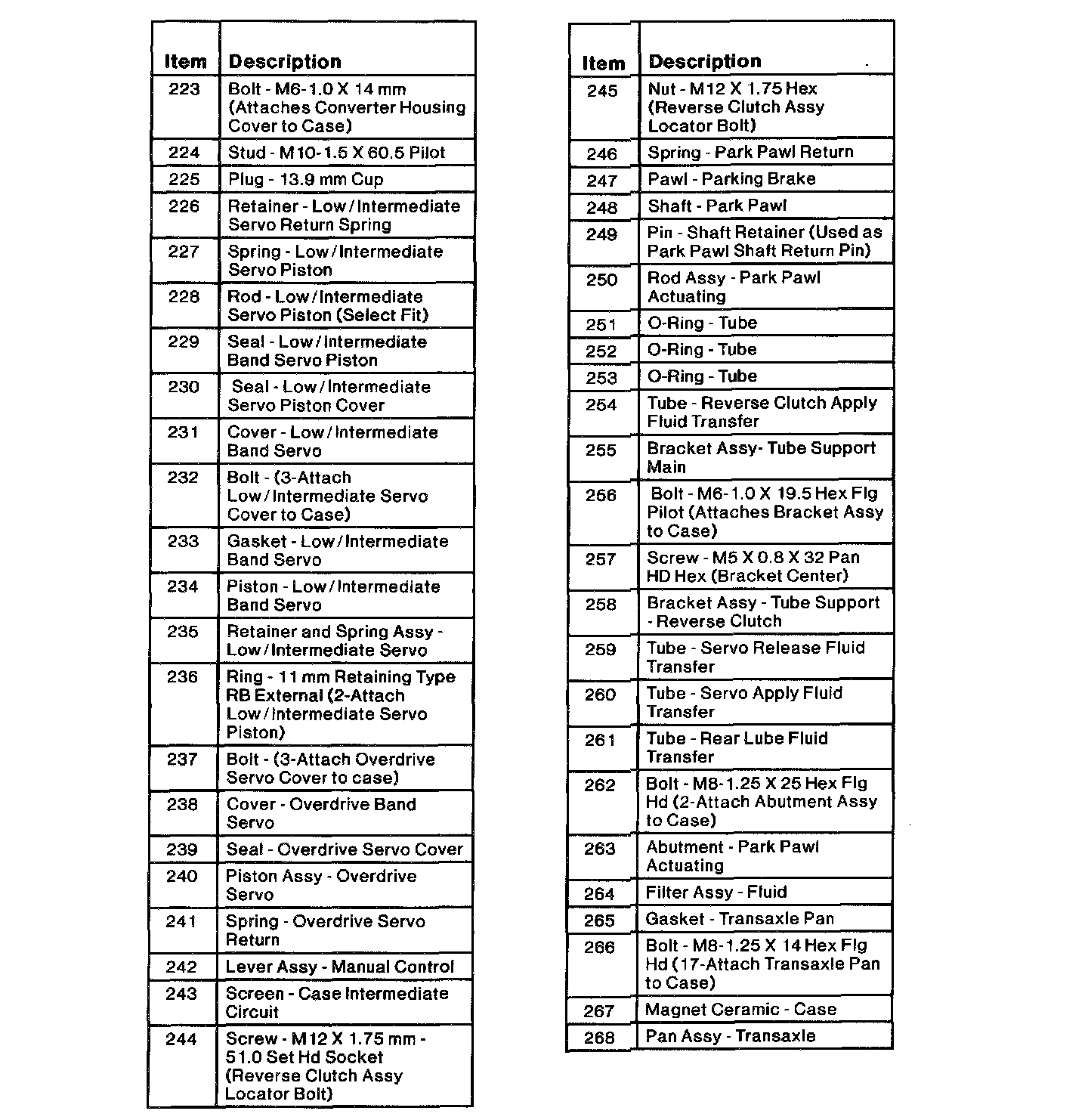

Disassembled View - Transaxle, Automatic
