General Module

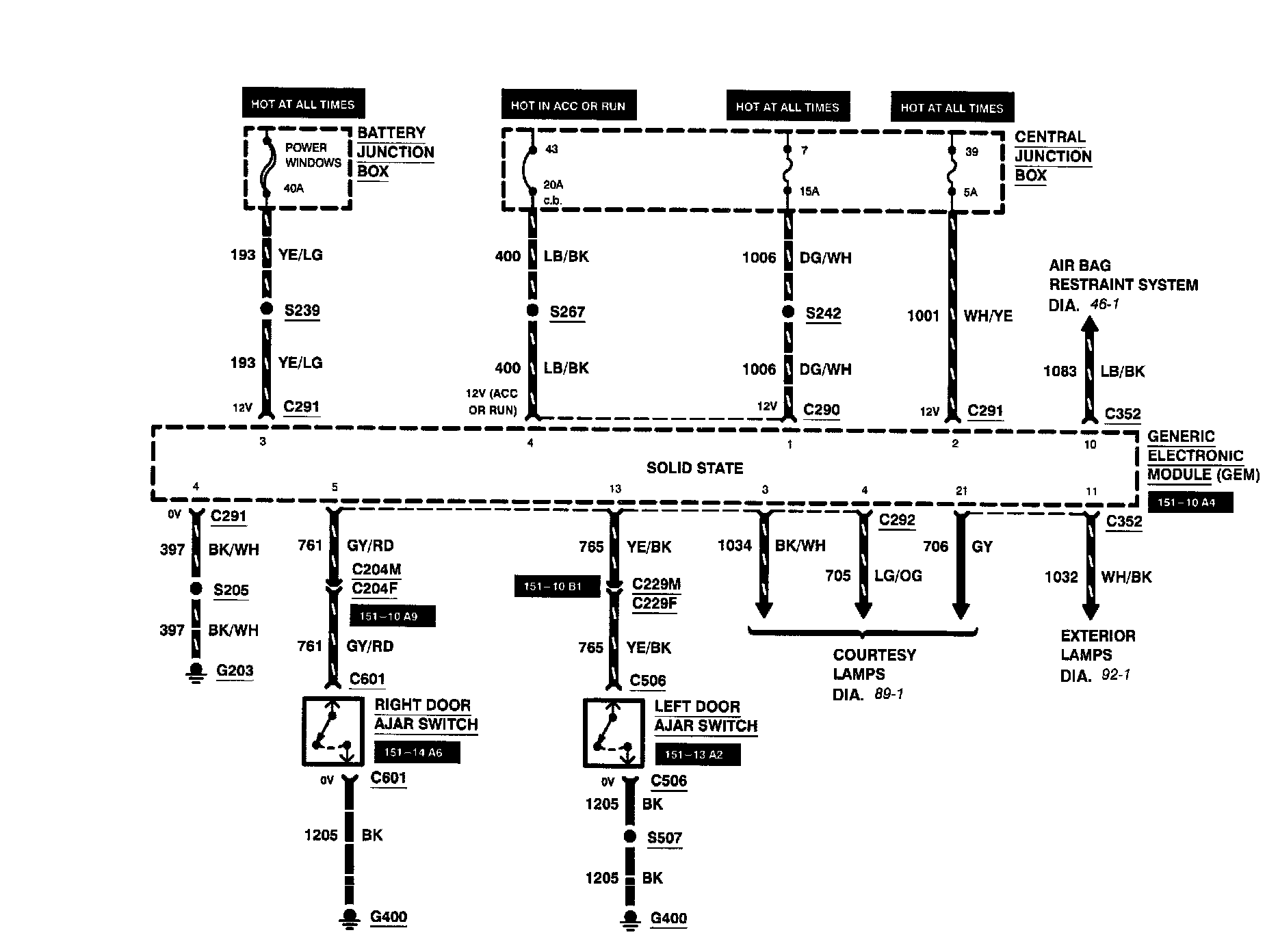

Diagram 59-1:

Battery Junction Box
Central Junction Box
Circuit Breaker 43
Fuse 39
Fuse 7
Fuse POWER WINDOWS
[1][2][3][4]Generic Electronic Module
Left Door Ajar Switch
Right Door Ajar Switch

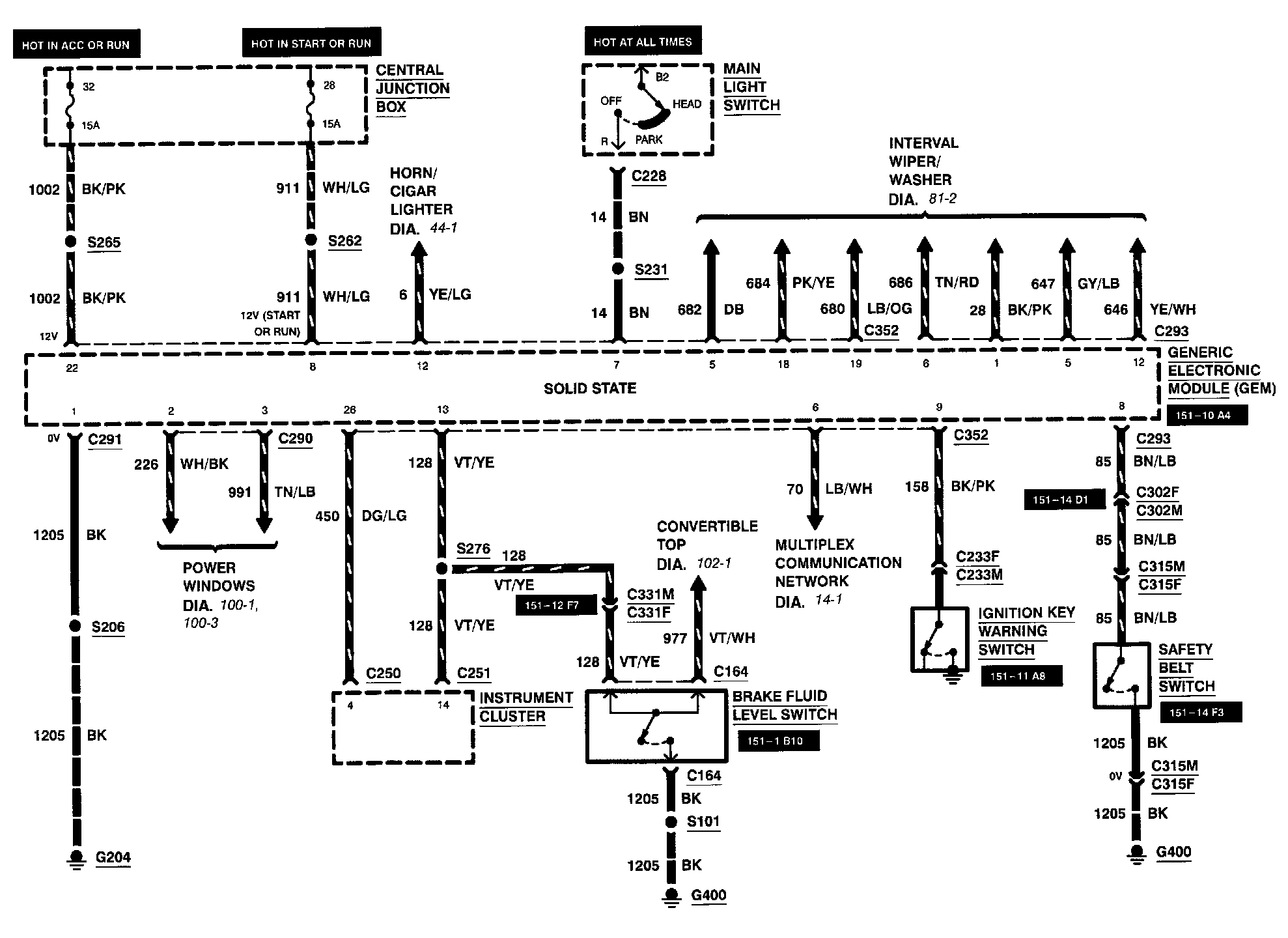

Diagram 59-2:

Brake Fluid Level Switch
Central Junction Box
Fuse 28
Fuse 32
[1][2][3][4]Generic Electronic Module
Ignition Key Warning Switch
Instrument Cluster
Main Light Switch
Safety Belt Switch

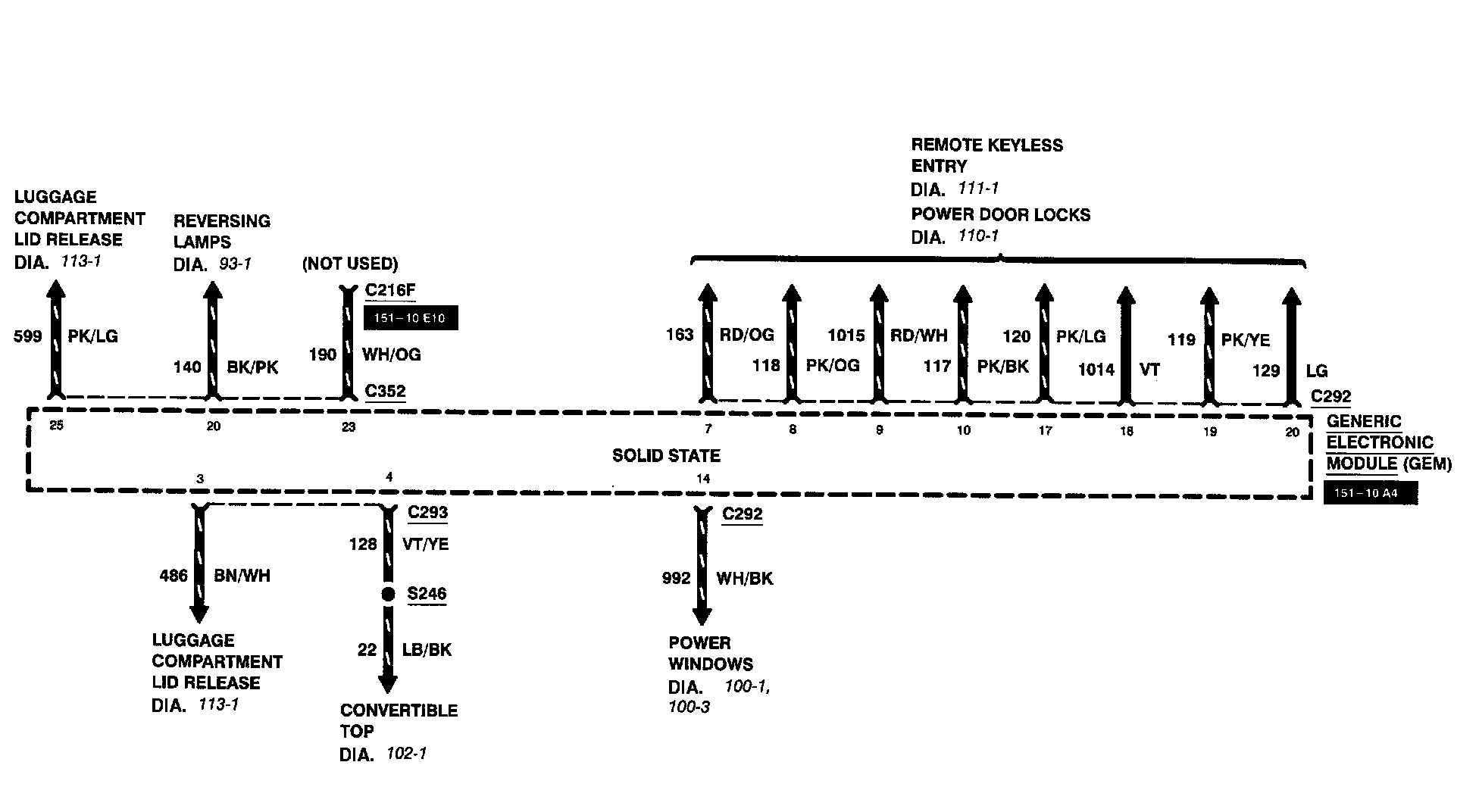

Diagram 59-3:

[1][2][3][4]Generic Electronic Module
