Test B: Doors Do Not Lock/Unlock Using the Keyless Entry Keypad

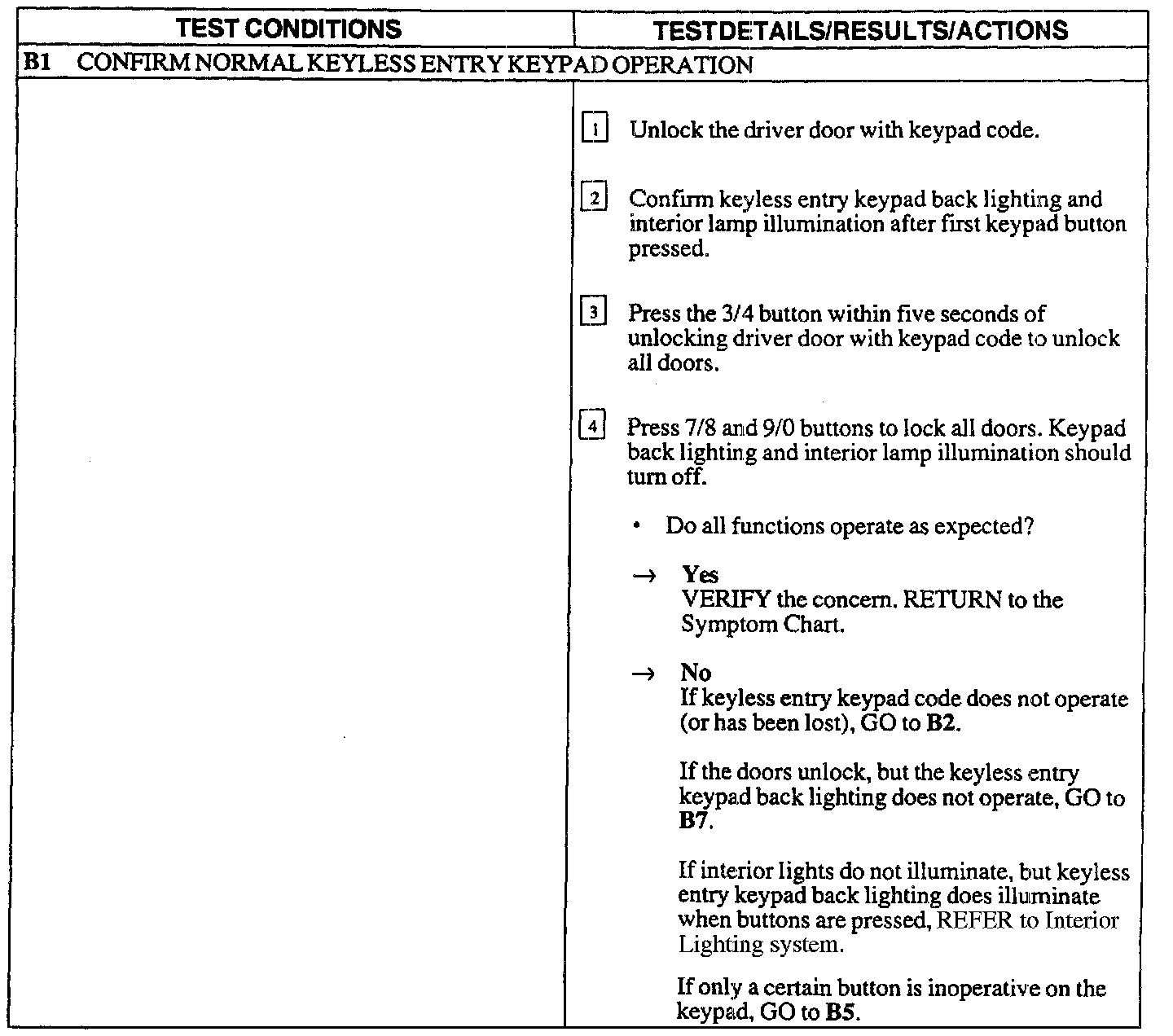

B1:

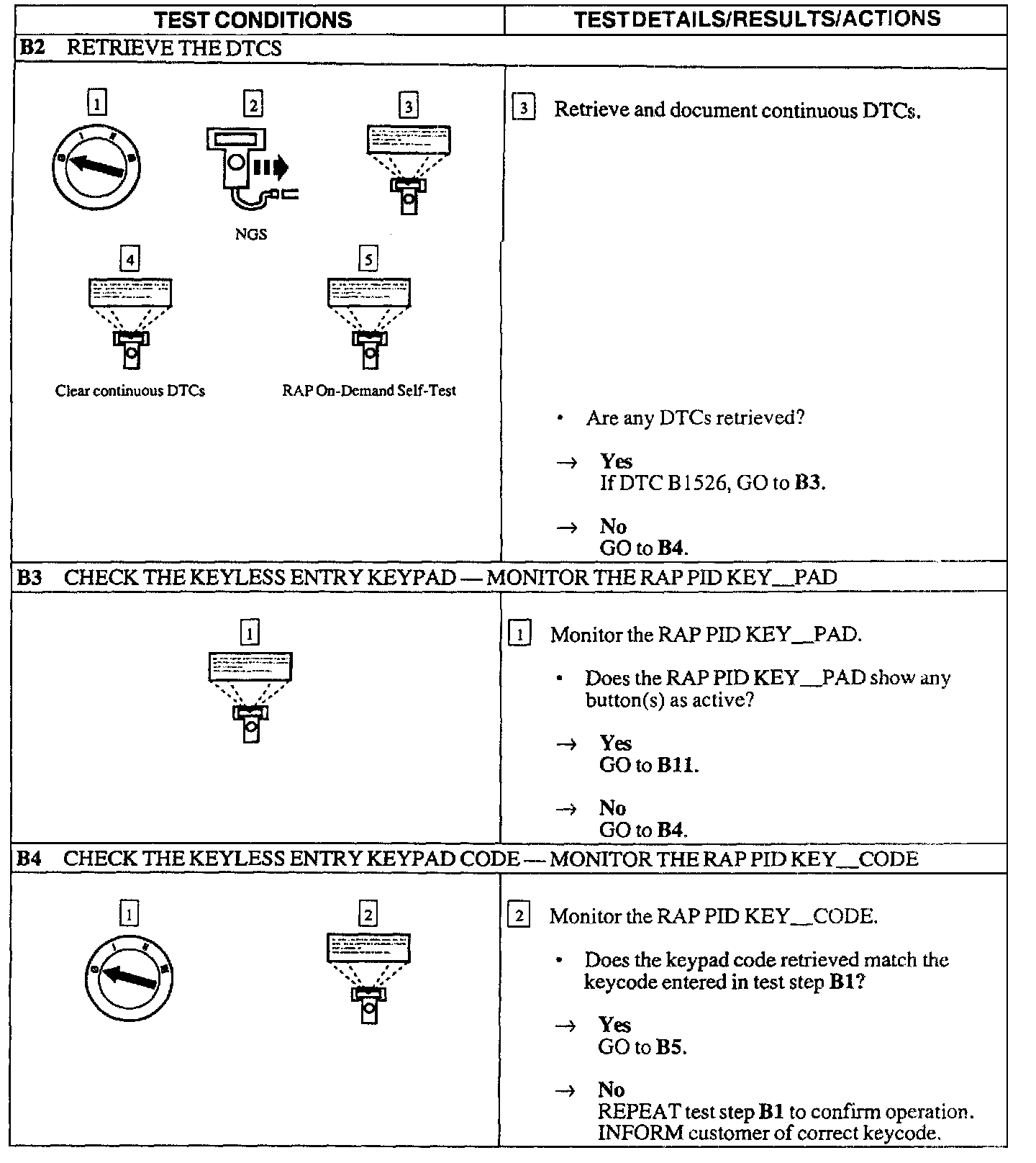

B2 - B4:

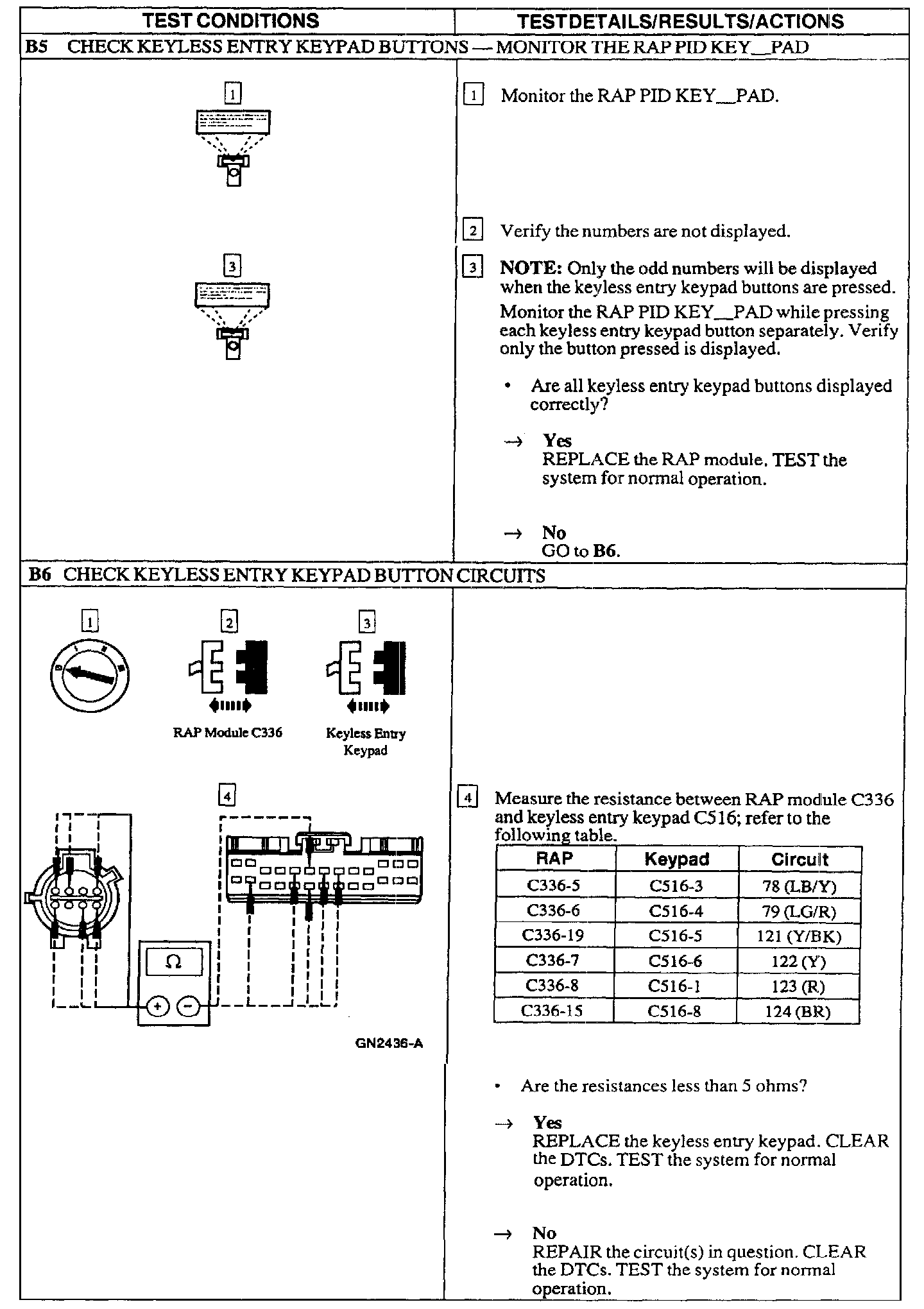

B5 - B6:






B7:

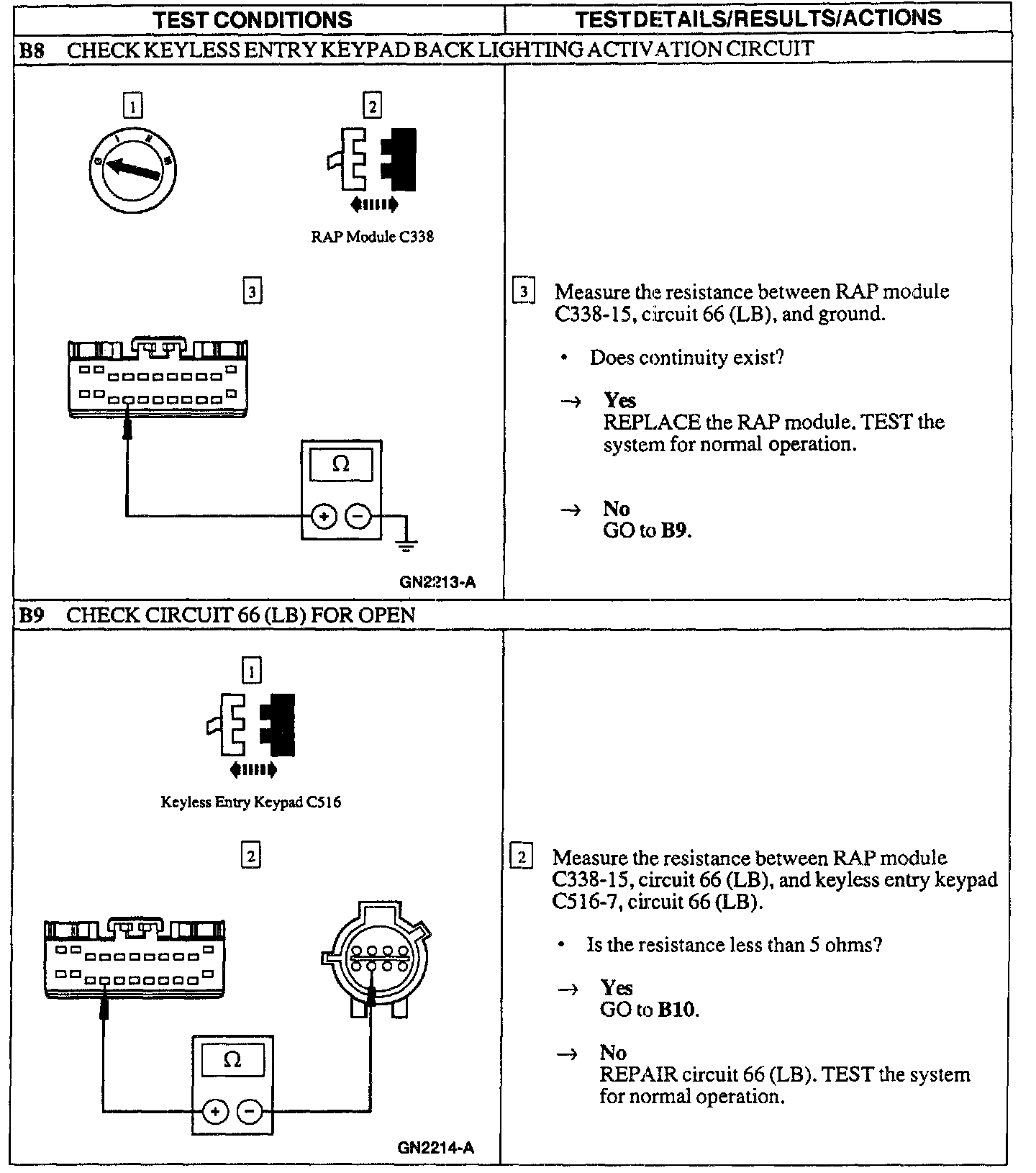

B8 - B9:

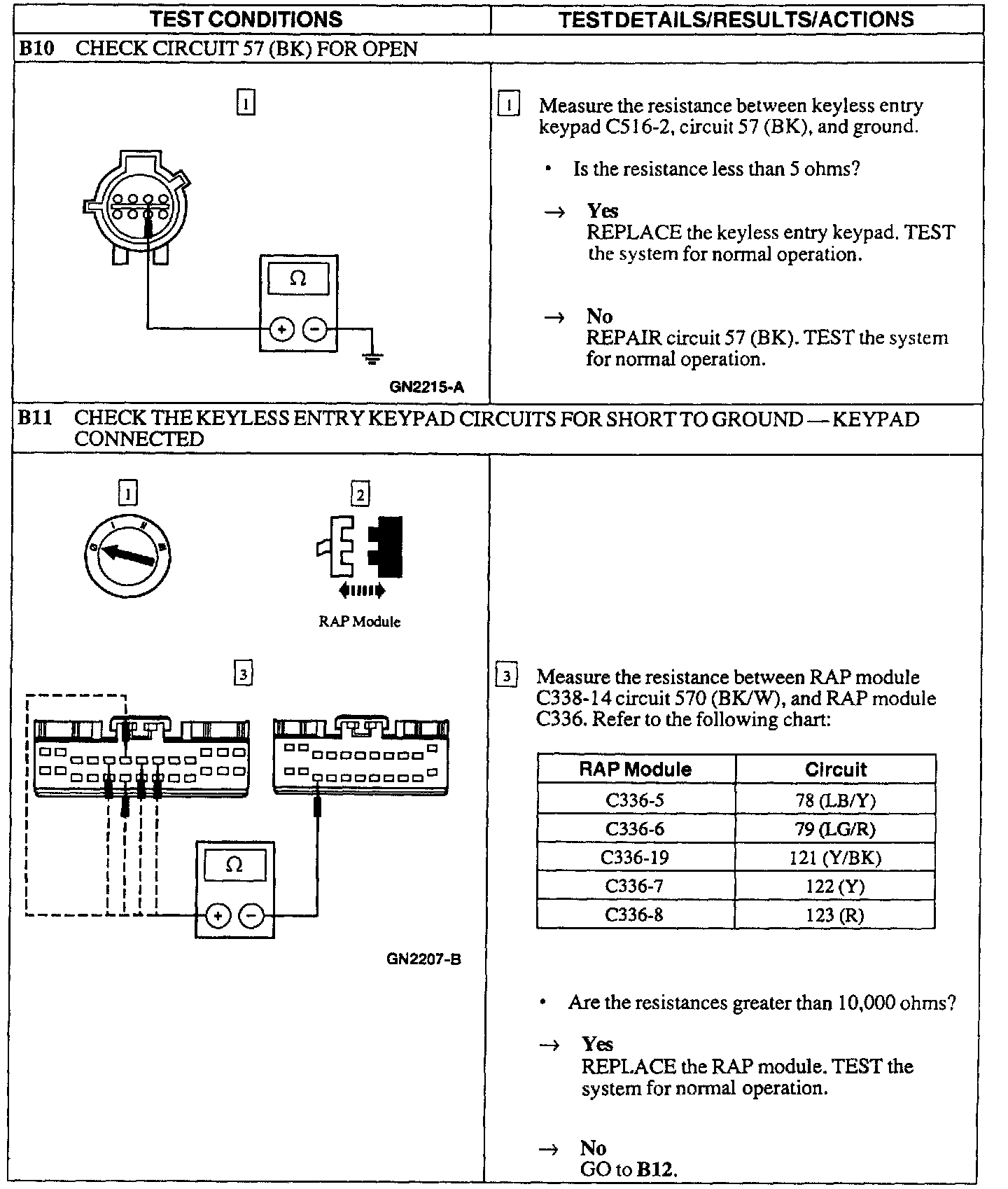

B10 - B11:

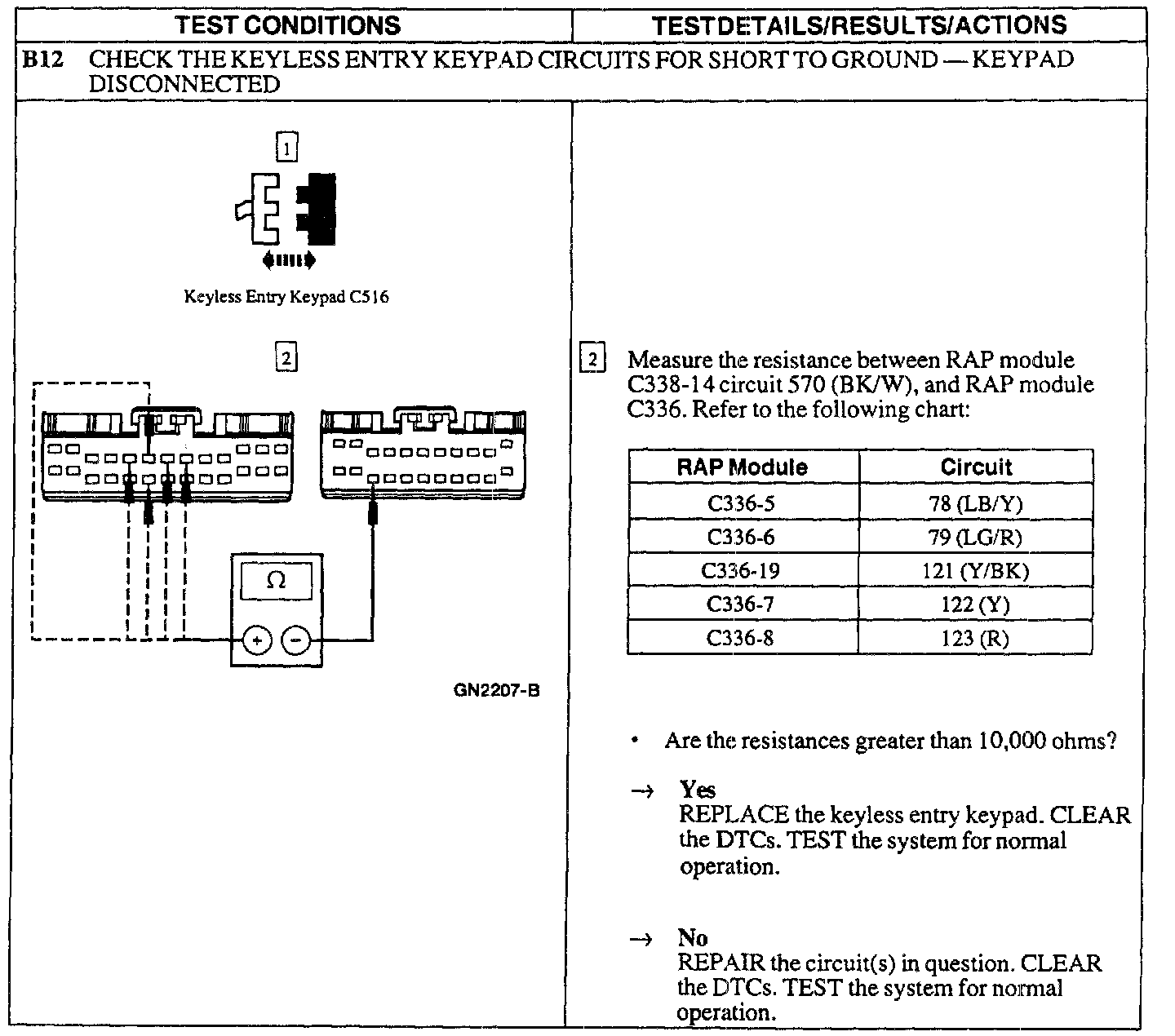

B12:
