A: No Communication With Lighting Control Module

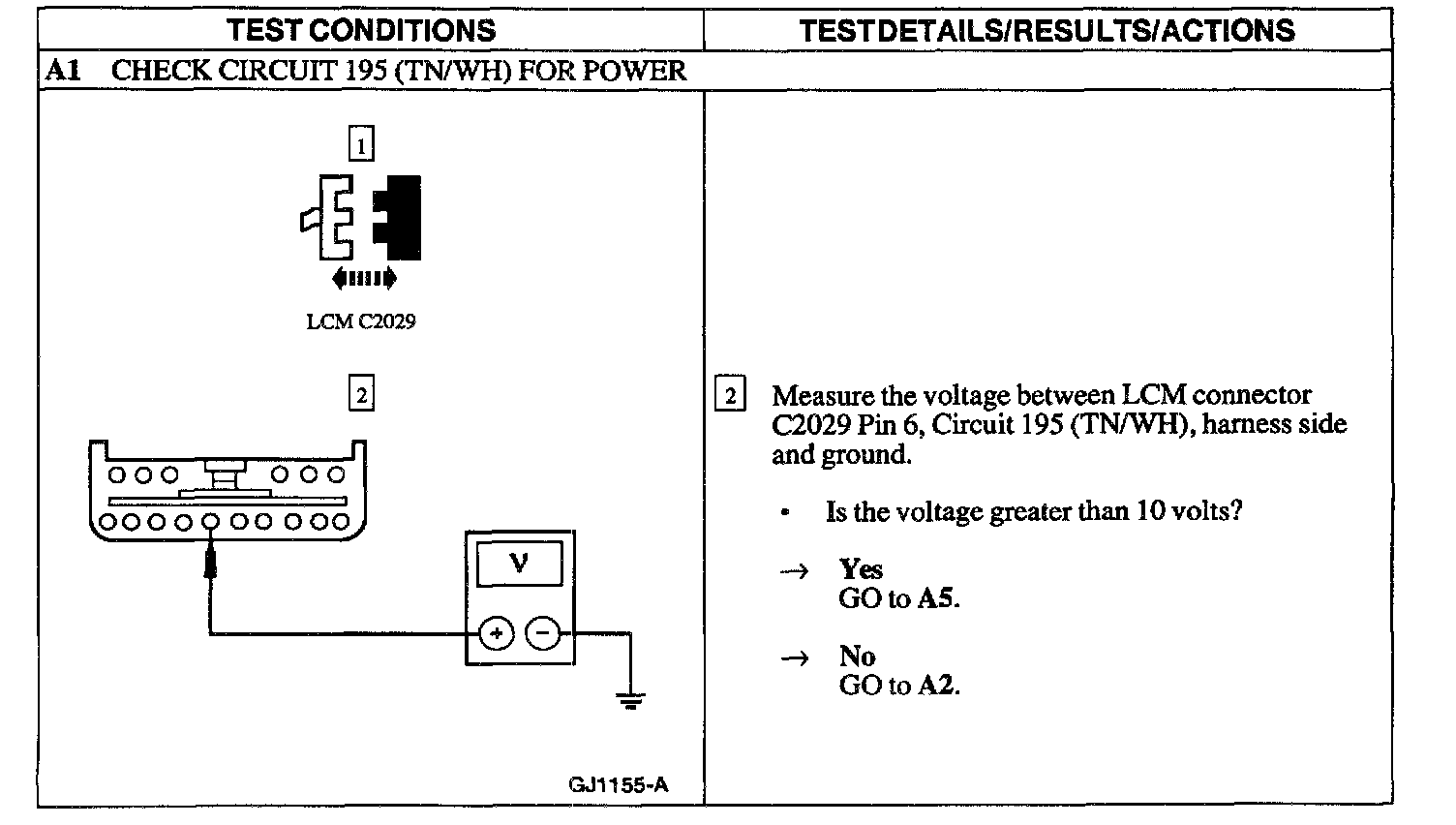

Test A1:

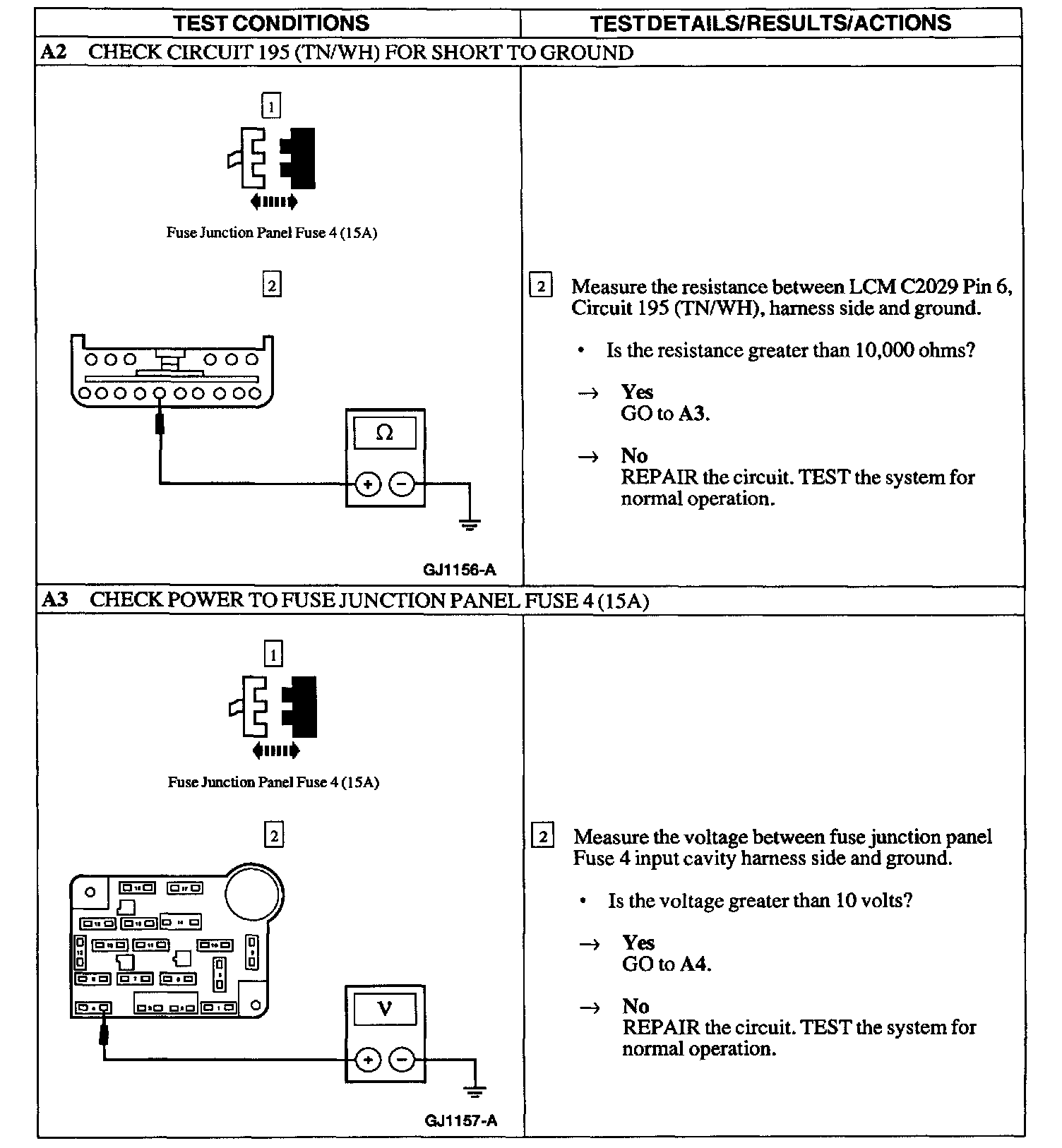

Test A2 - A3:

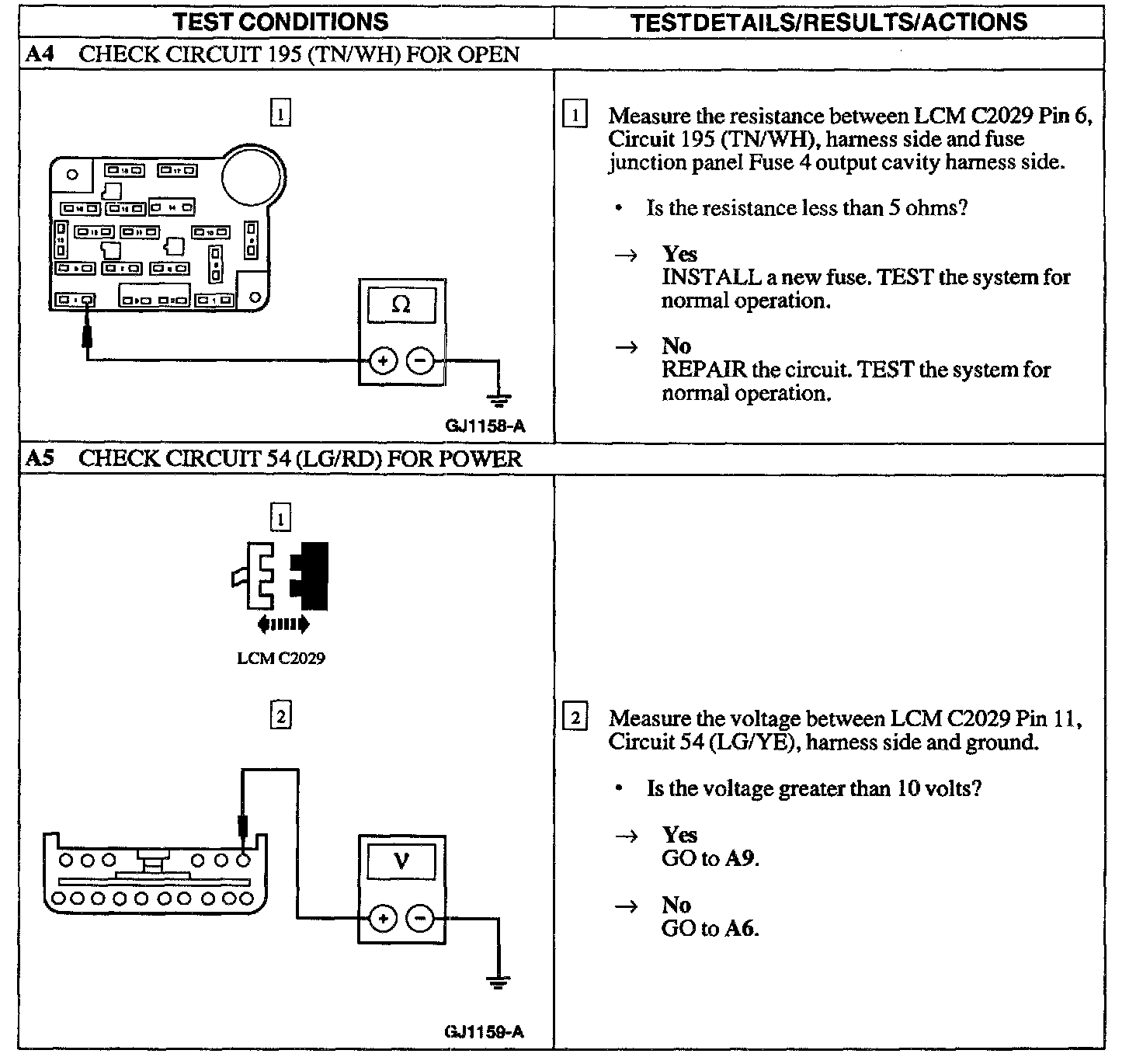

Test A4 - A5:

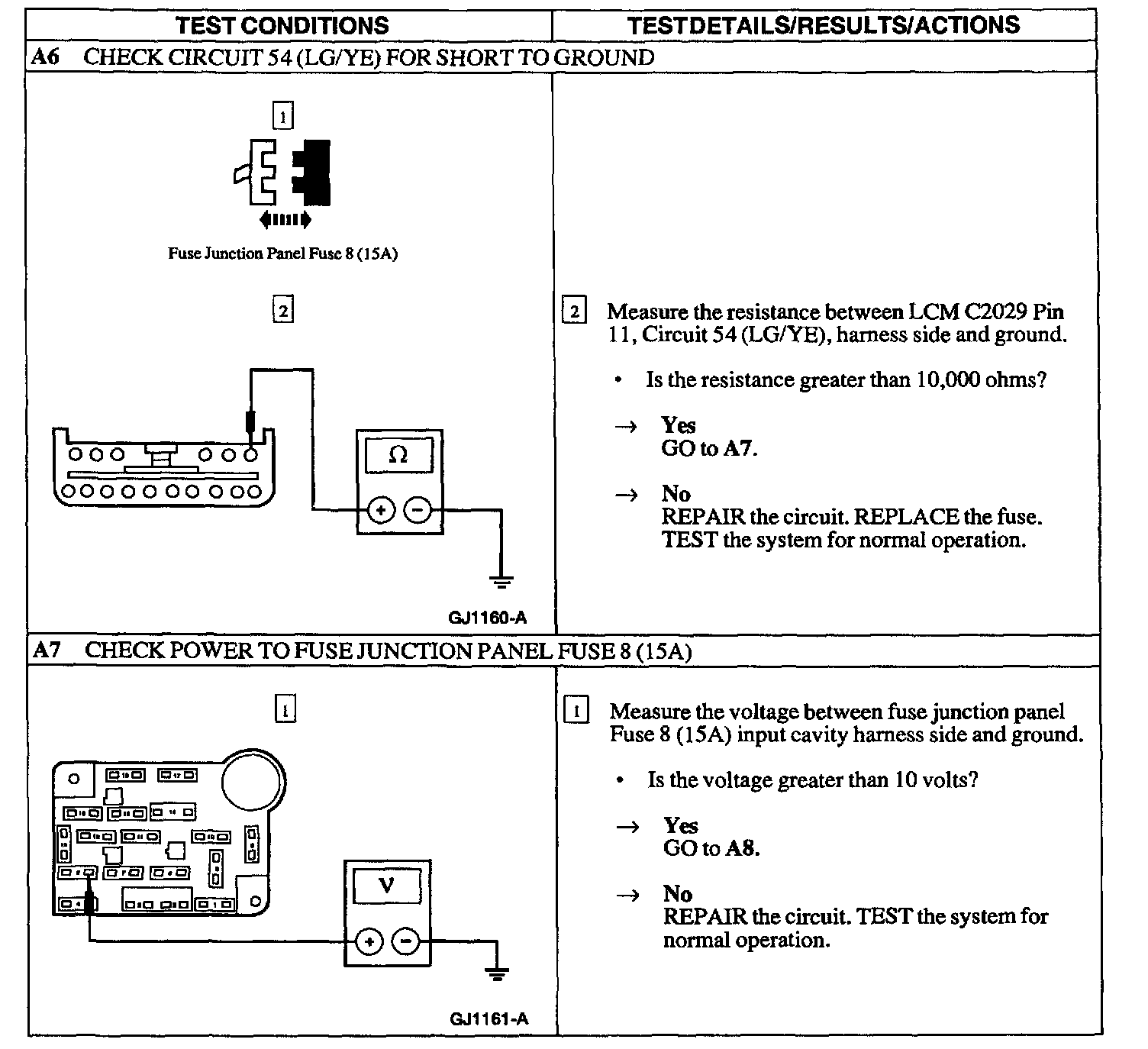

Test A6 - A7:

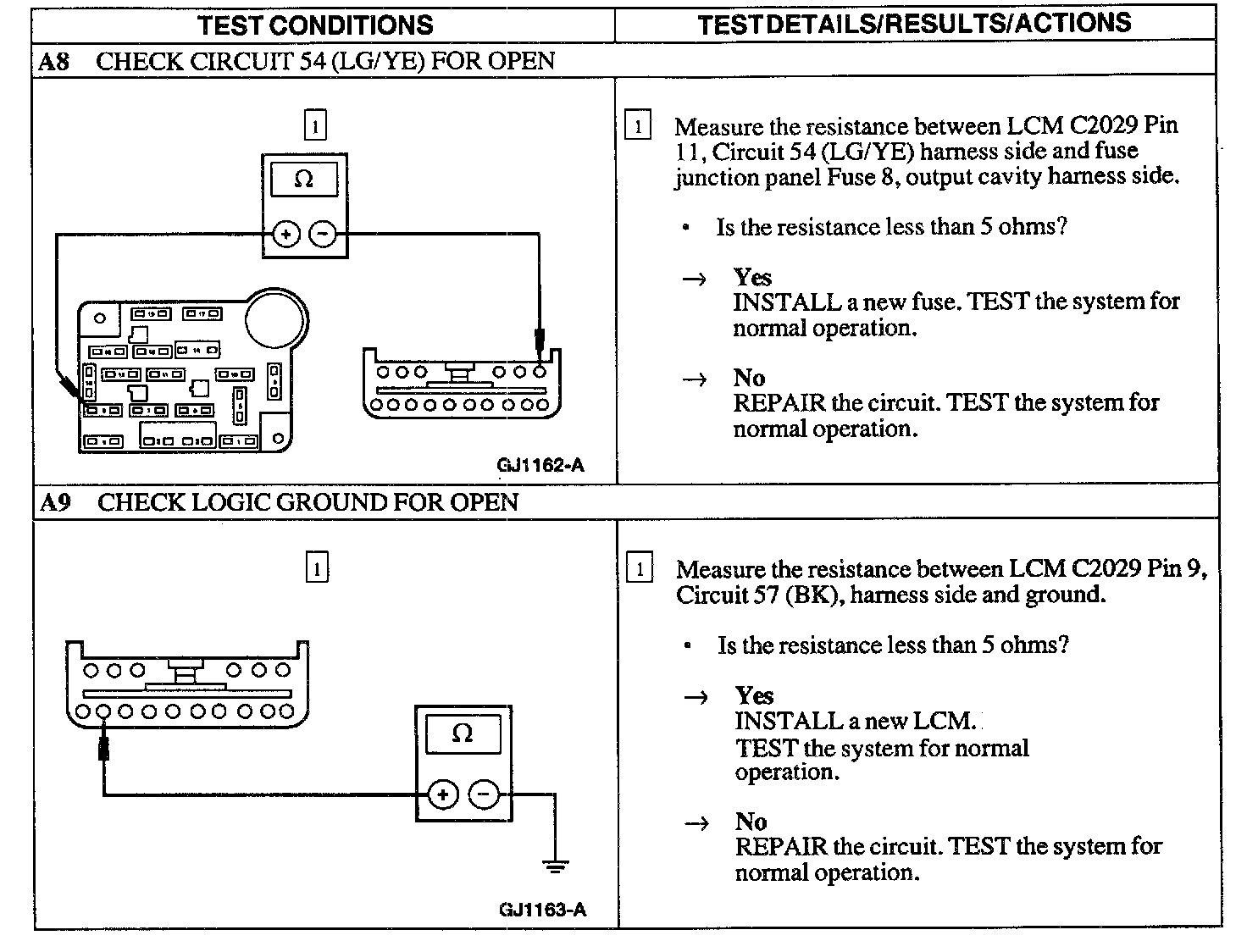

Test A8 - A9:
