Throttle Position Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

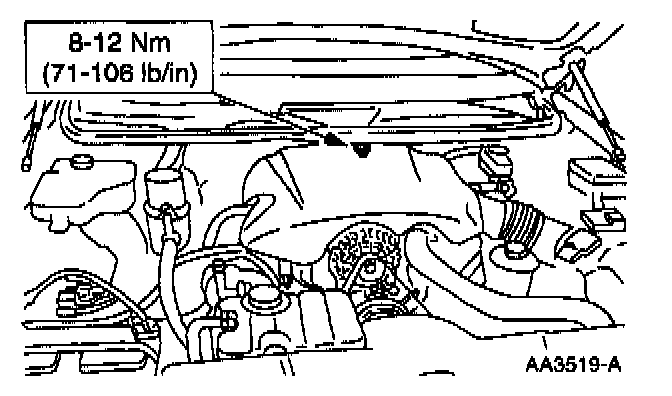

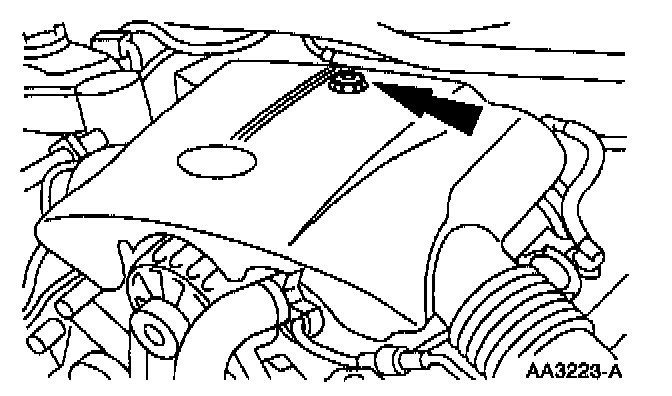

2. Remove the engine appearance cover.

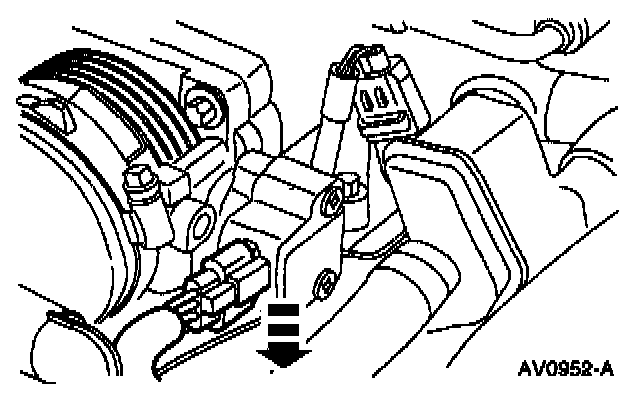

3. Disconnect the electrical connector from the Throttle Position (TP) sensor.

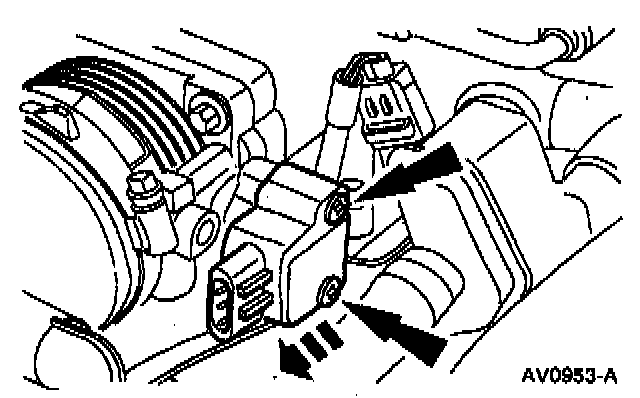

4. Remove the screws and the throttle position sensor.

INSTALLATION







1. To install, reverse the removal procedure.
