Pressure Feedback Exhaust Sensor: Service and Repair

REMOVAL

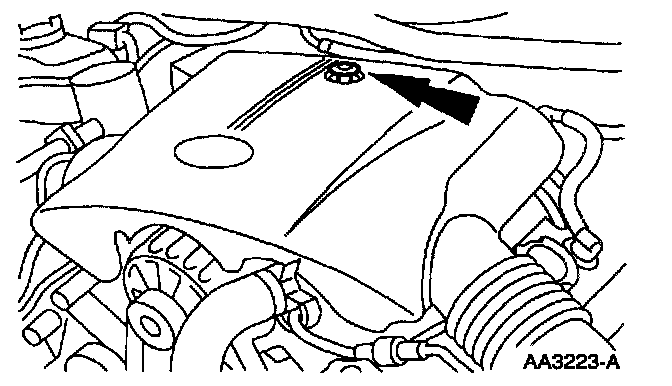

1. Remove the appearance cover.

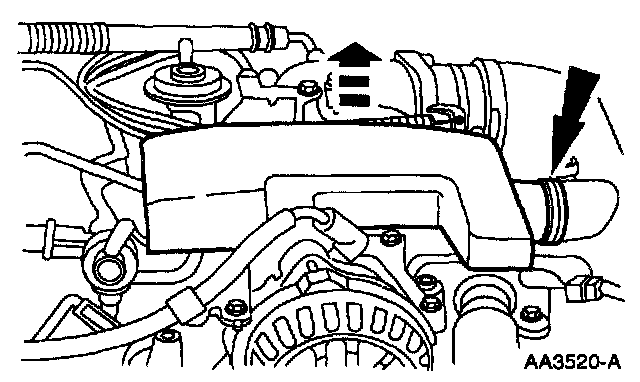

2. Loosen the clamp and remove the engine air cleaner tube.

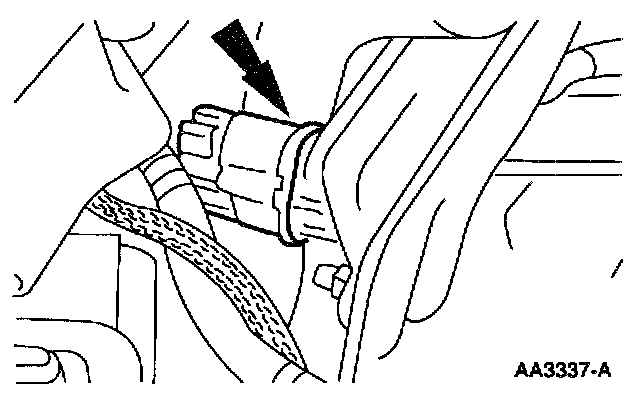

3. Disconnect the engine control sensor wiring.

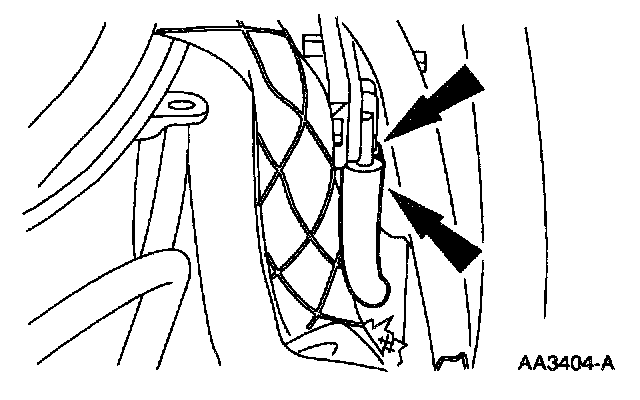

4. Remove the two hoses.

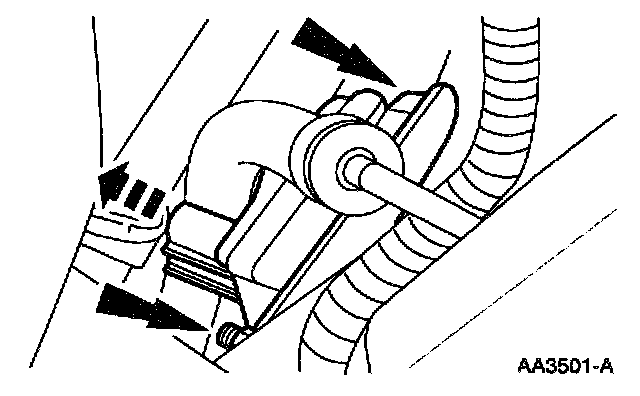

5. Remove the two nuts and the differential pressure feedback EGR valve.

INSTALLATION

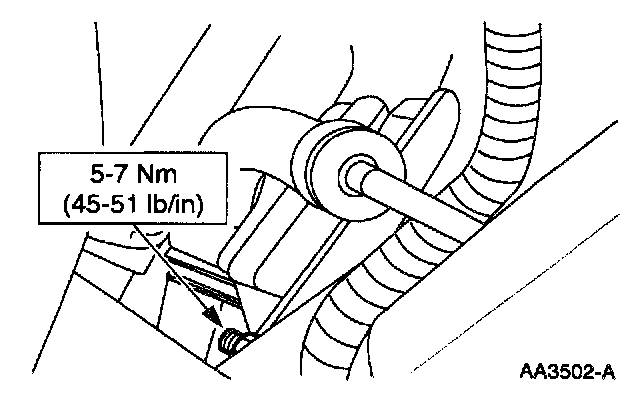

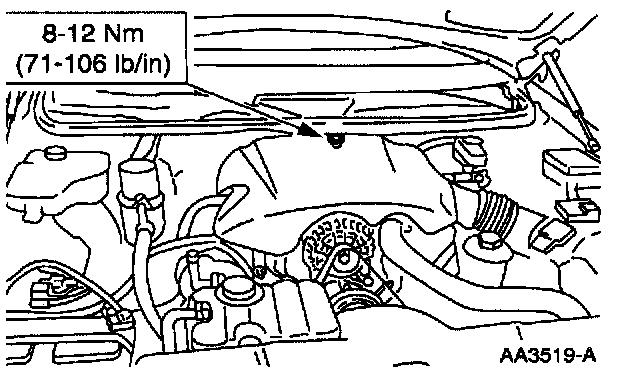

1. To install, reverse the removal procedure.
