Knock Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the lower intake manifold.

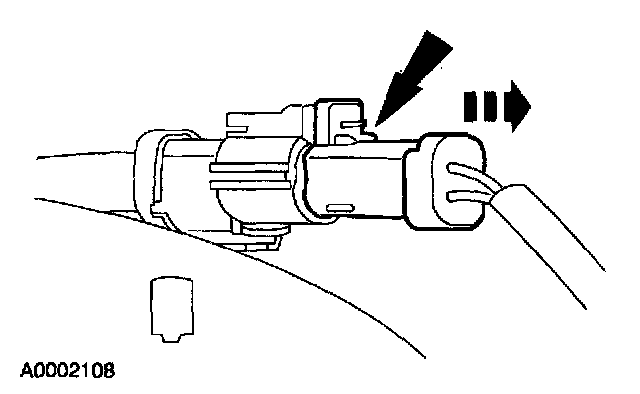

3. Disconnect the electrical connector from the Knock Sensor (KS).

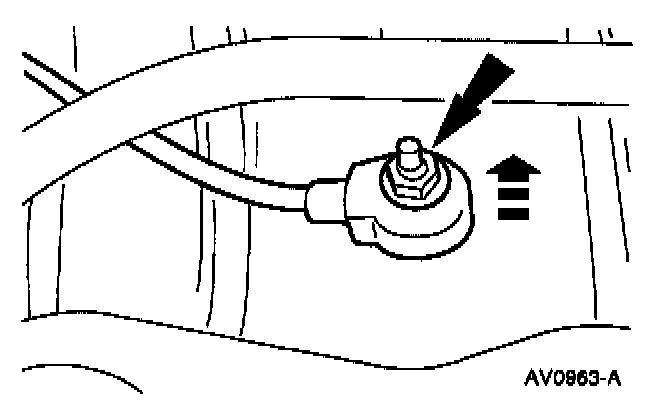

4. Remove the nut and the knock sensor.

INSTALLATION

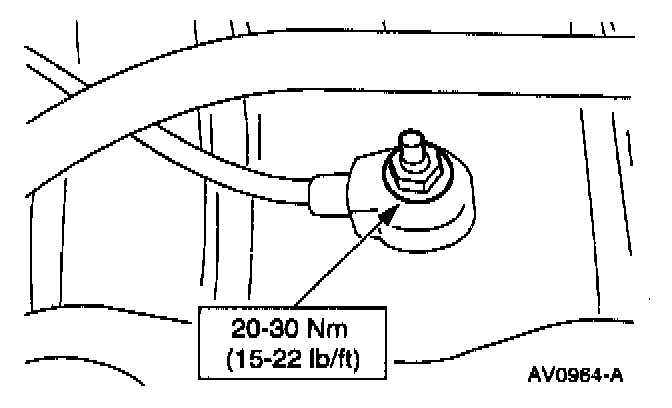

1. To install, reverse the removal procedure.
