Engine Temperature Sensor: Service and Repair

REMOVAL
1. Remove the lower intake manifold.

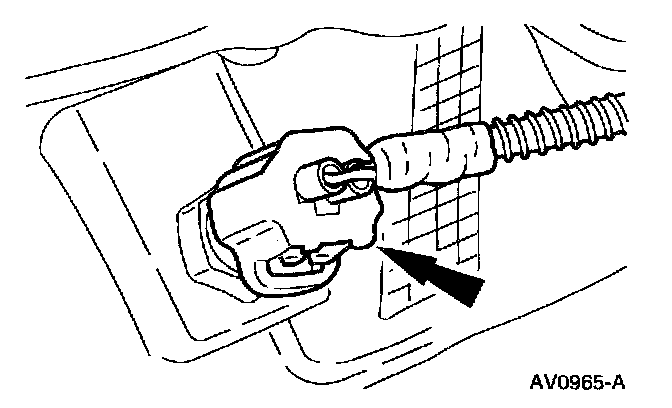

2. Disconnect the electrical connector from the Cylinder Head Temperature (CHT) sensor.

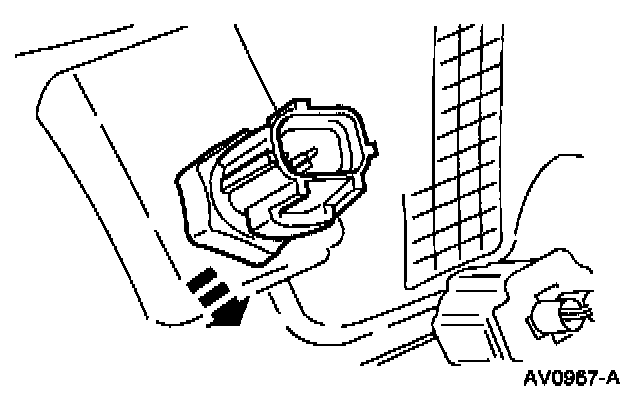

3. If necessary, remove the wiring connector.

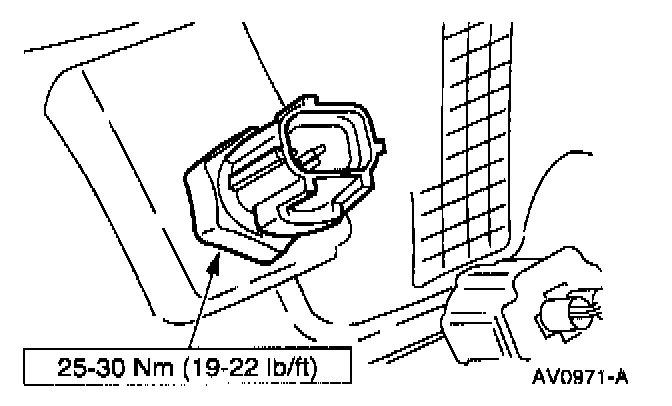

4. Remove the cylinder head temperature sensor.

INSTALLATION







1. To install, reverse the removal procedure.
