Camshaft Position Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

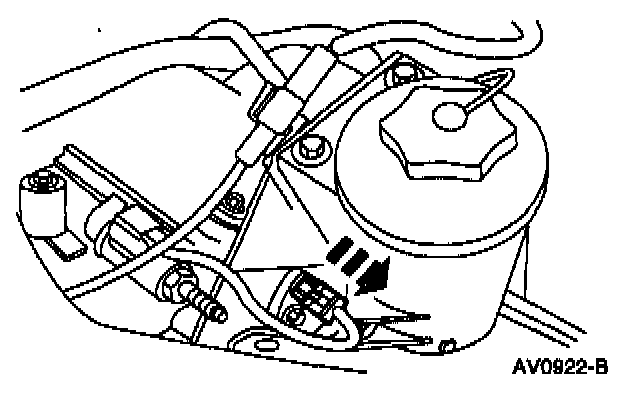

2. Disconnect the electrical connector from the Camshaft Position (CMP) sensor.

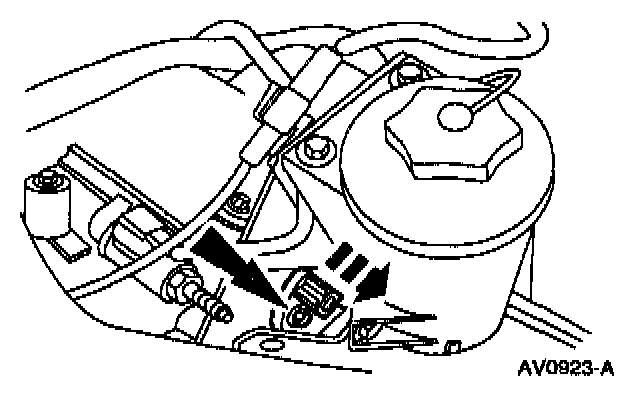

3. Remove the bolt and the camshaft position sensor.

INSTALLATION

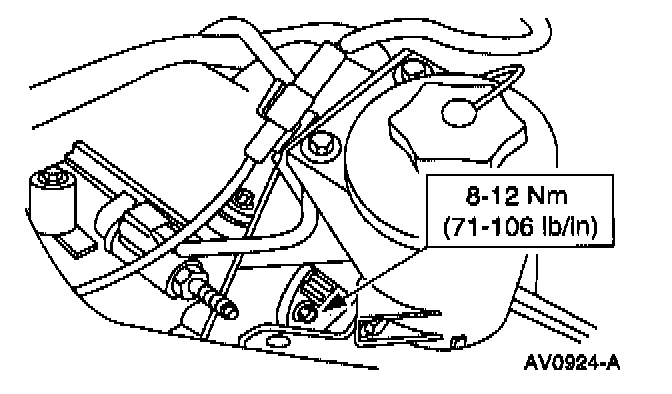

1. To install, reverse the removal procedure.
