Automatic Transmission/Transaxle
Automatic Transmission/Transaxle
1 Of 6:
2 Of 6:
3 Of 6:
4 Of 6:
5 Of 6:
6 Of 6:

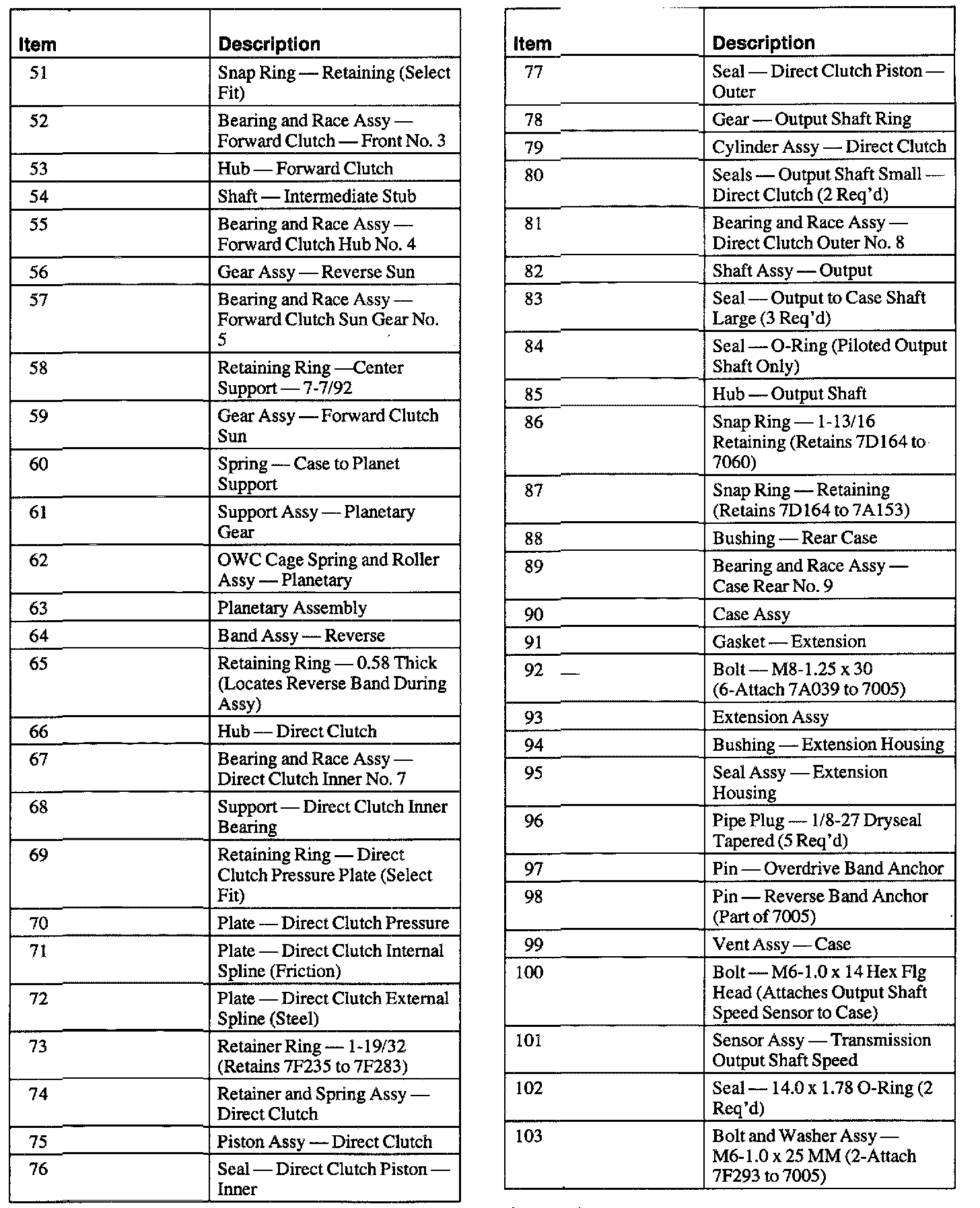

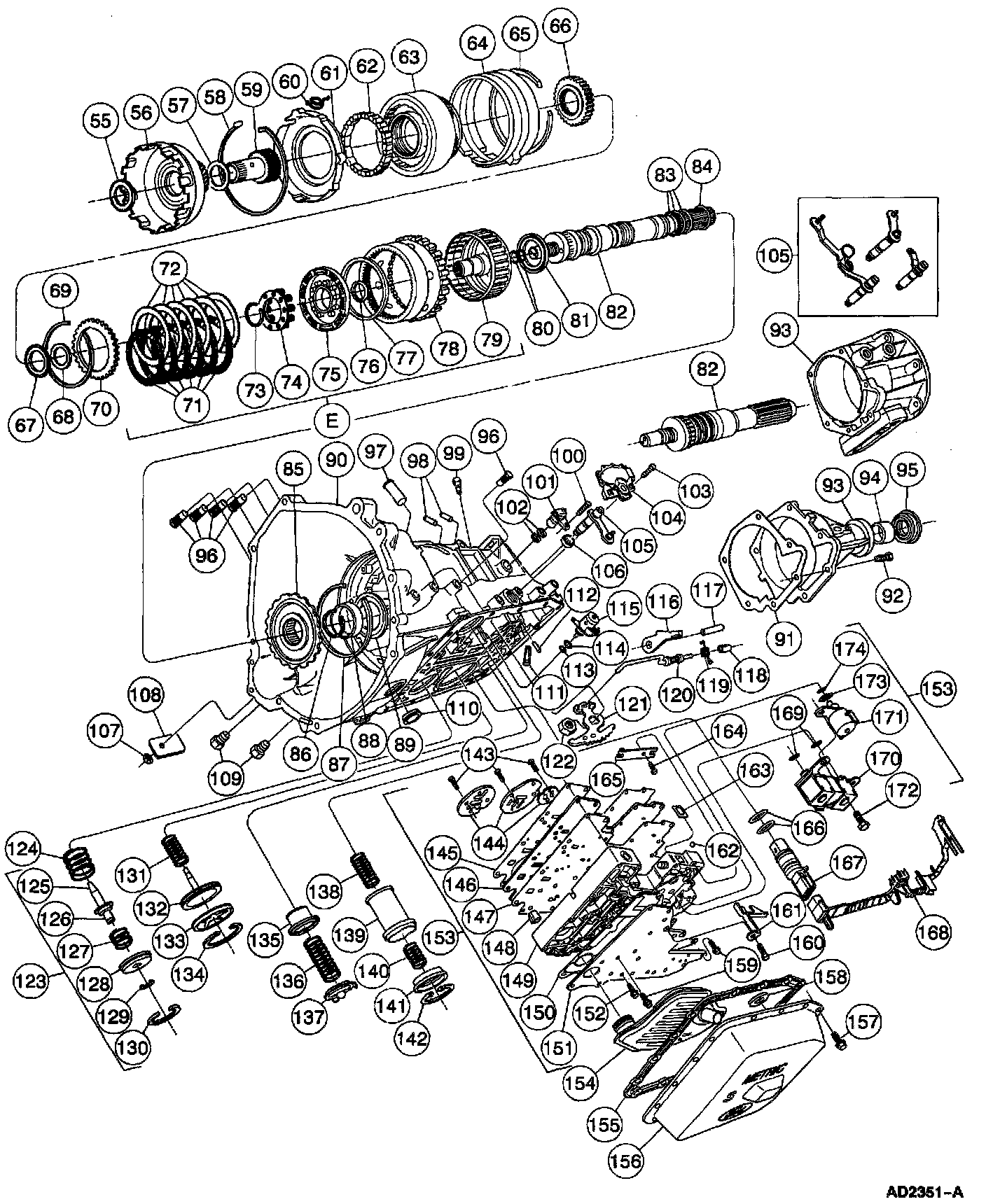

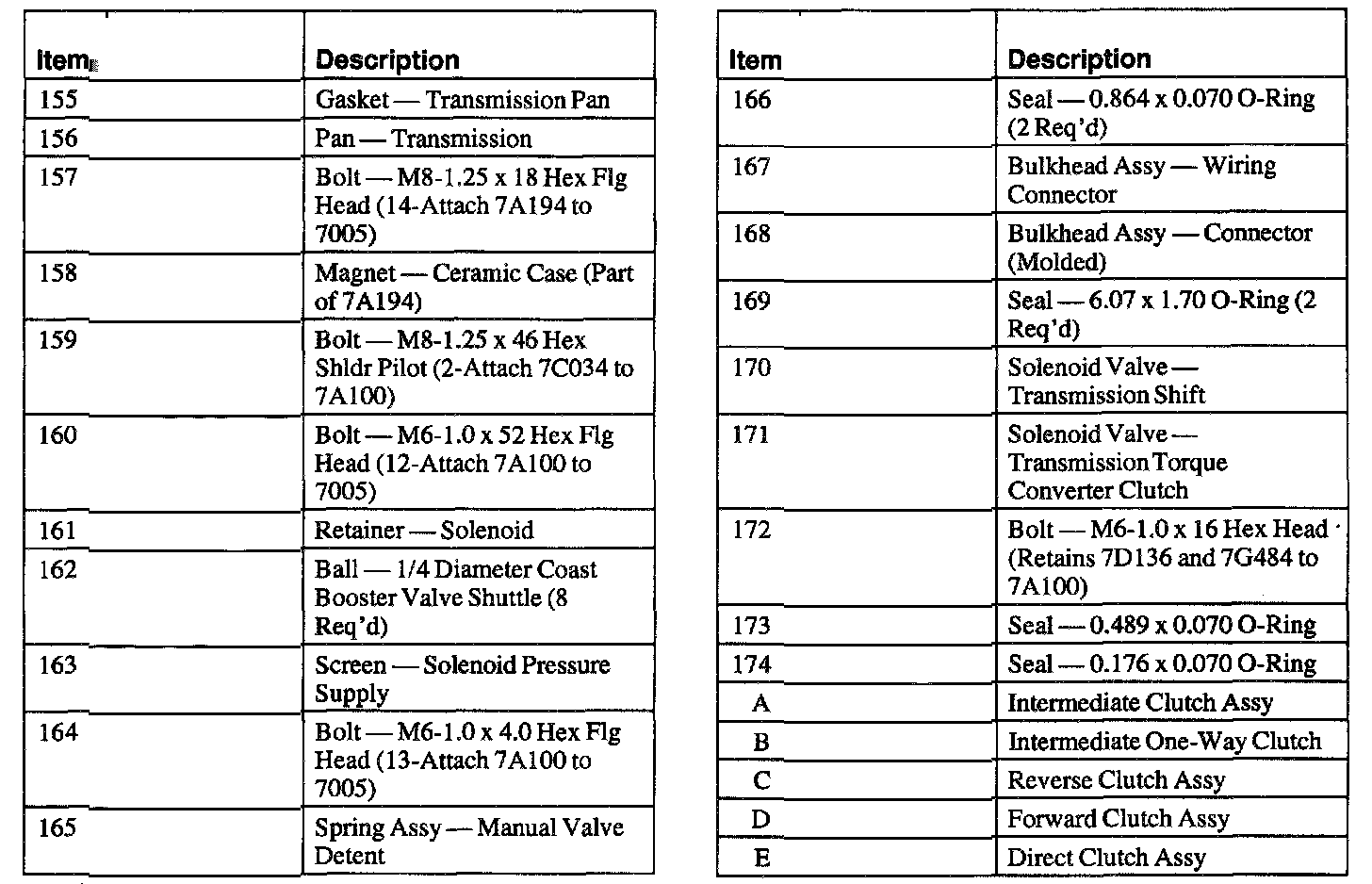

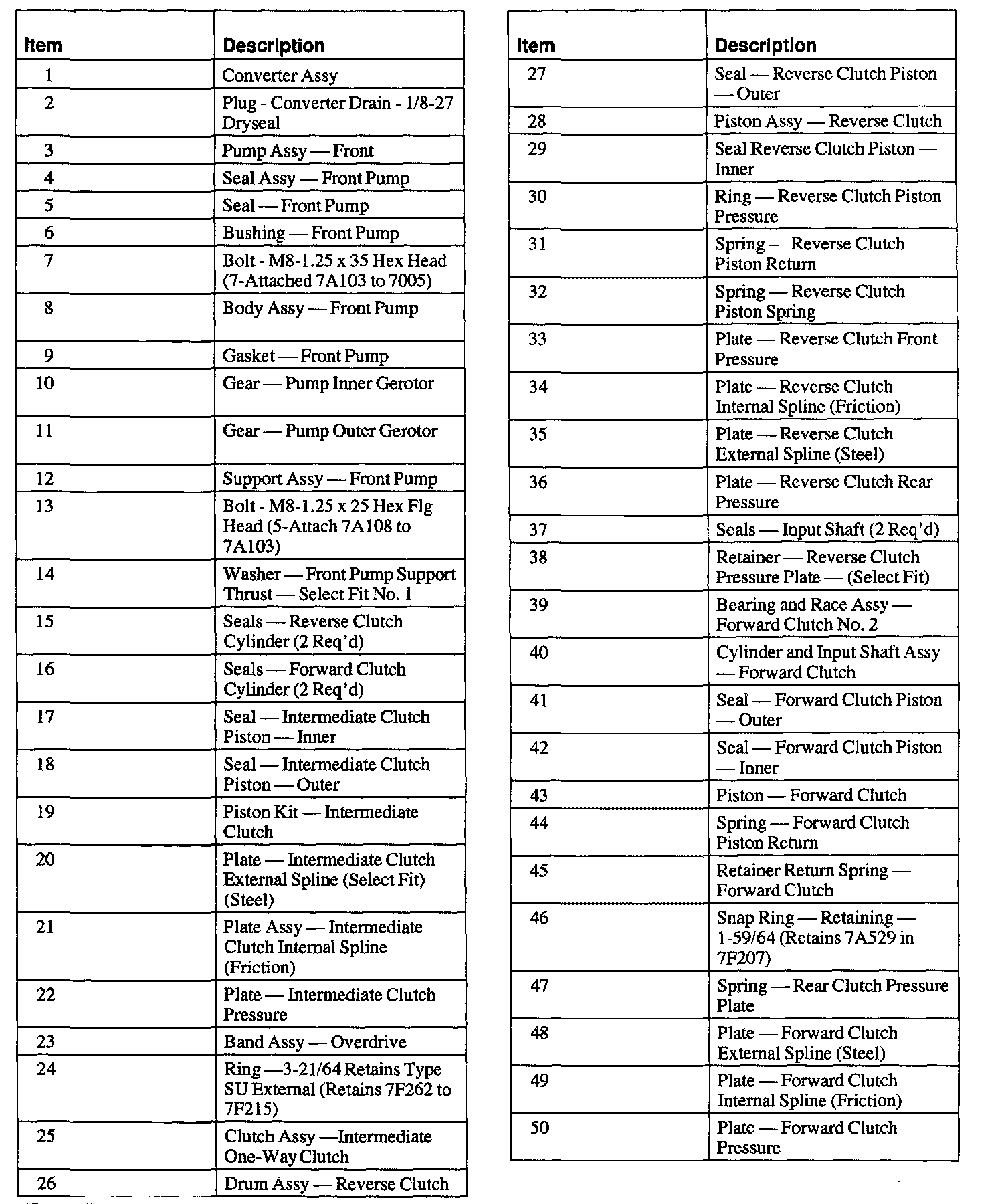

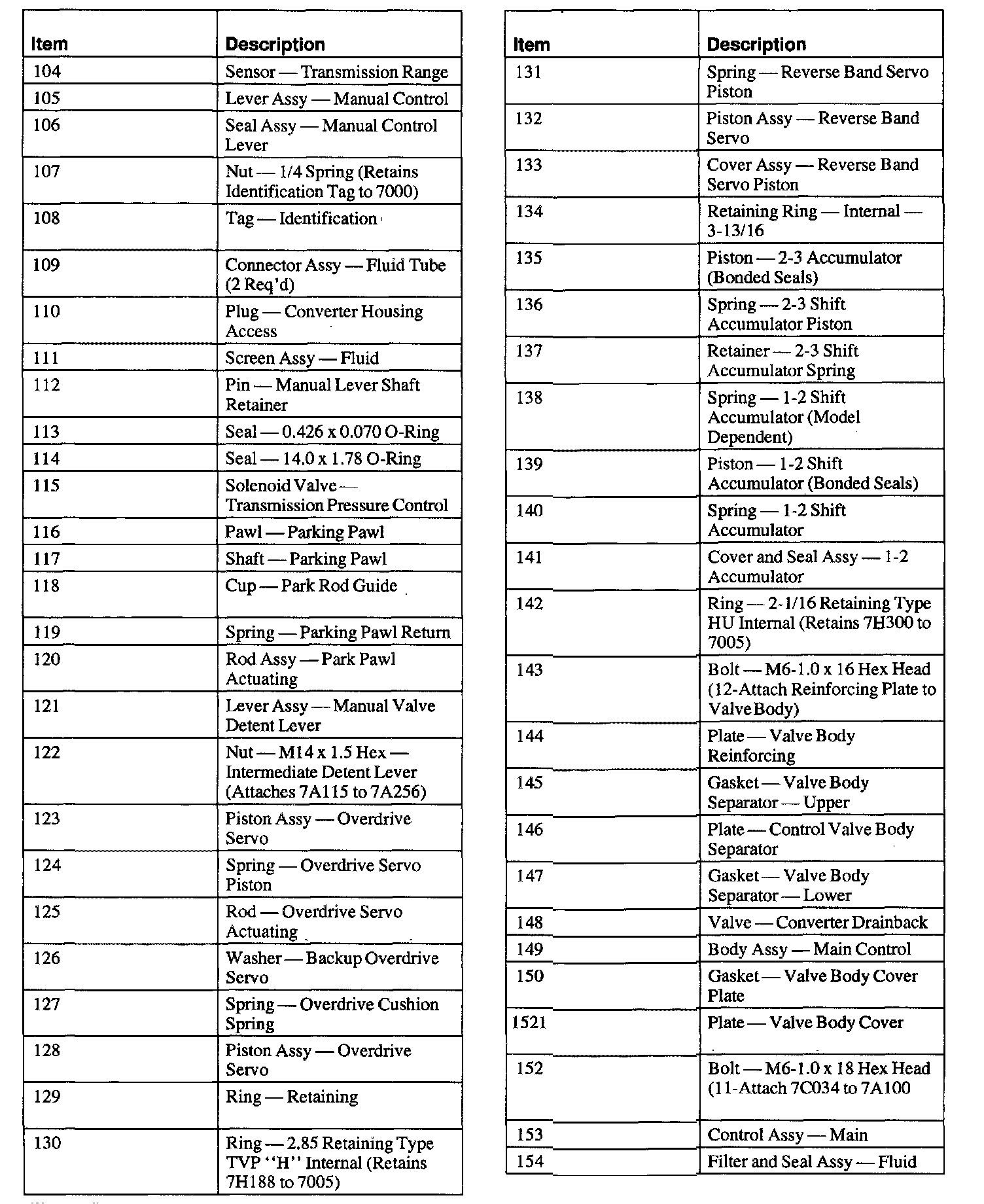

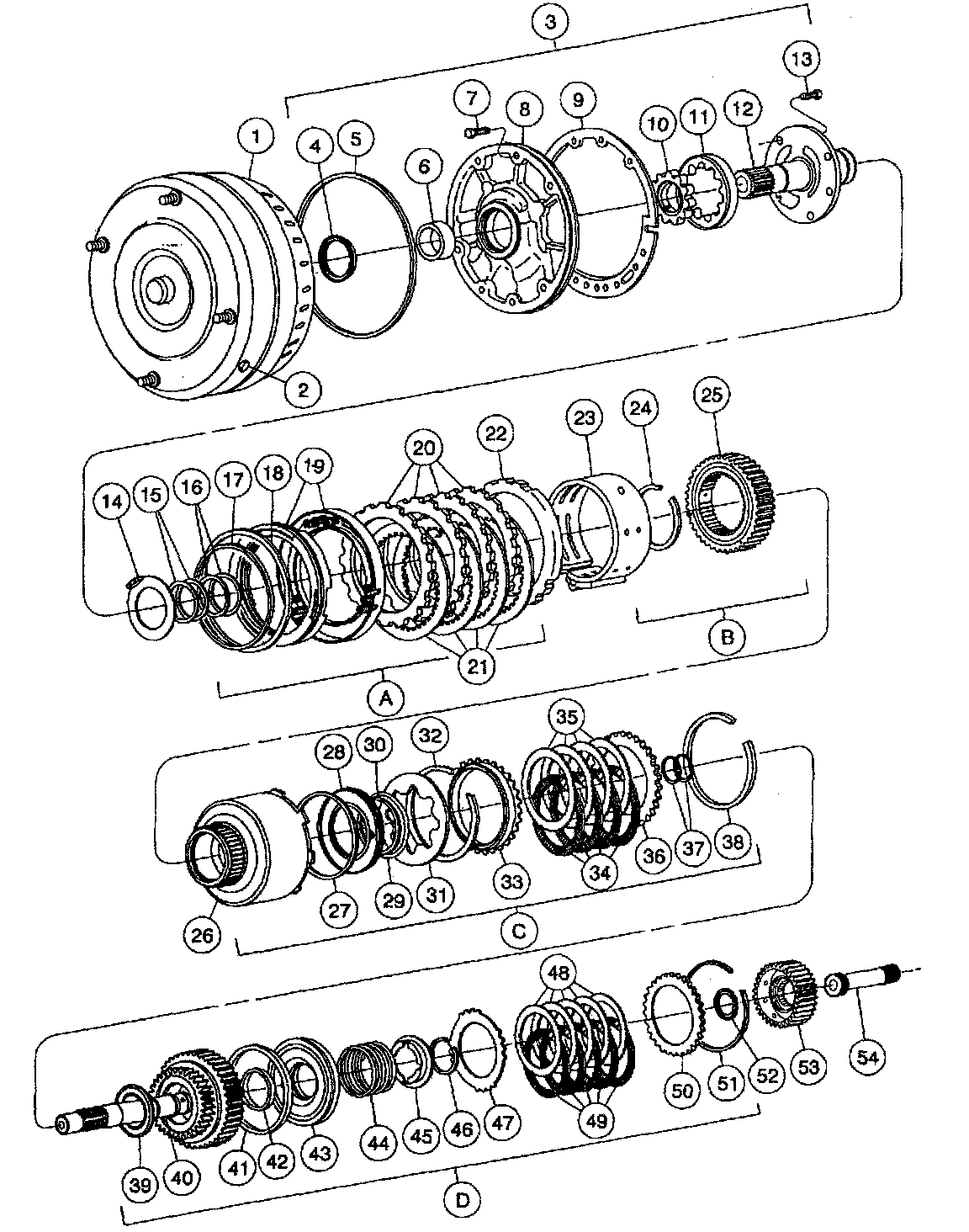

4R70W Automatic Transmission -Disassembled View
