Exhaust Manifold

TORQUE SPECIFICATIONS
Exhaust Manifold - Bolt/Stud: 20-30 Nm (15-22 Ft. Lbs.)

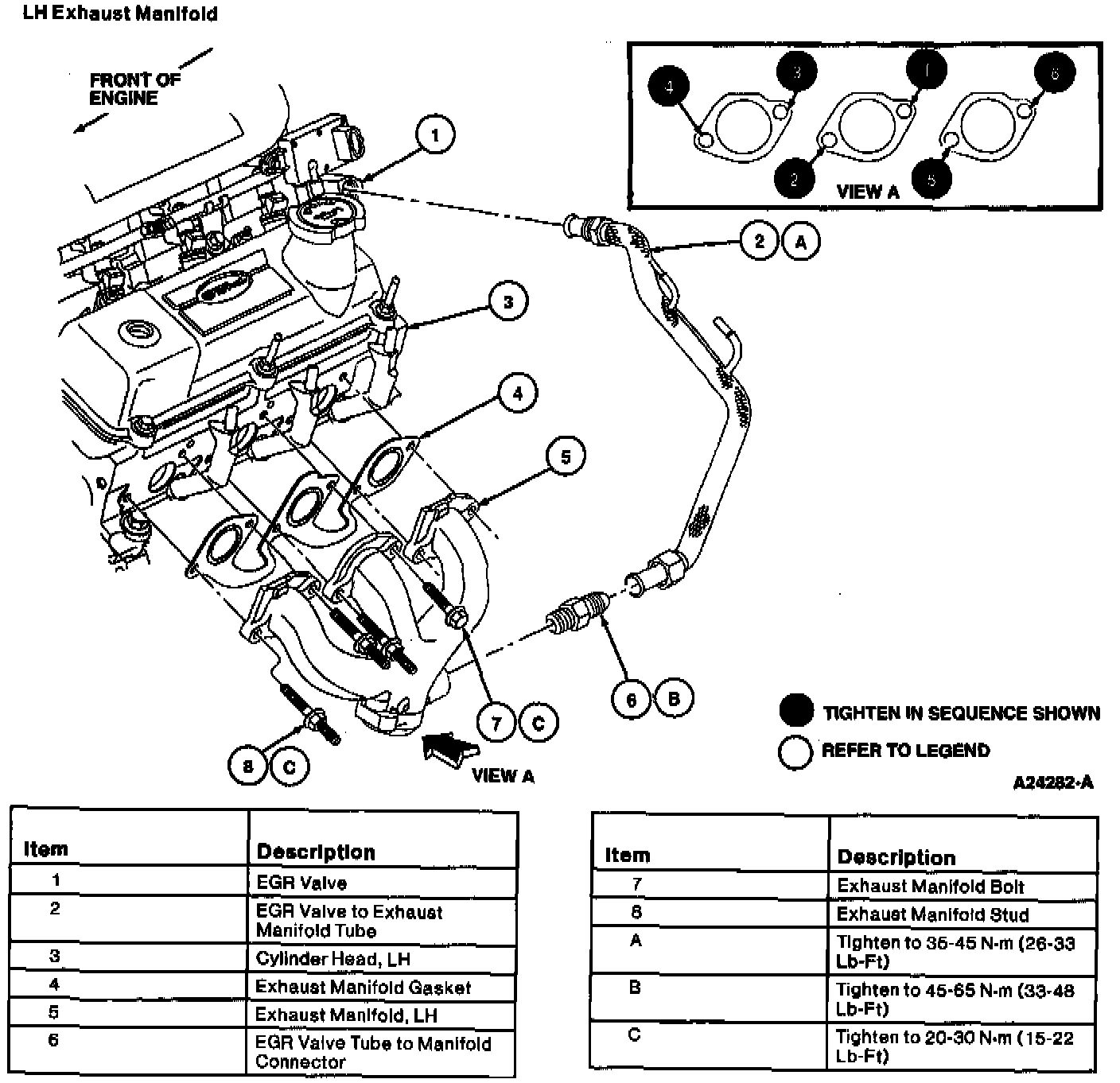

LH Sequence

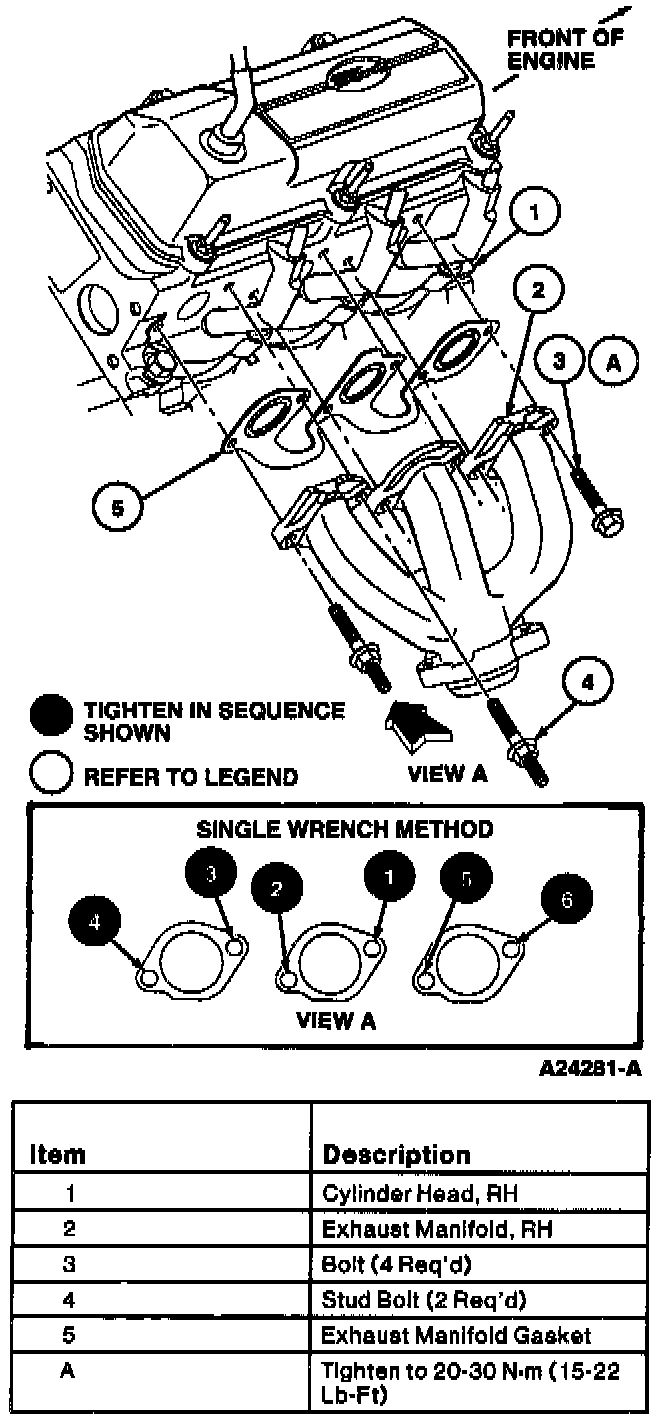

RH Sequence
