Alarm Module, (Vehicle Antitheft)

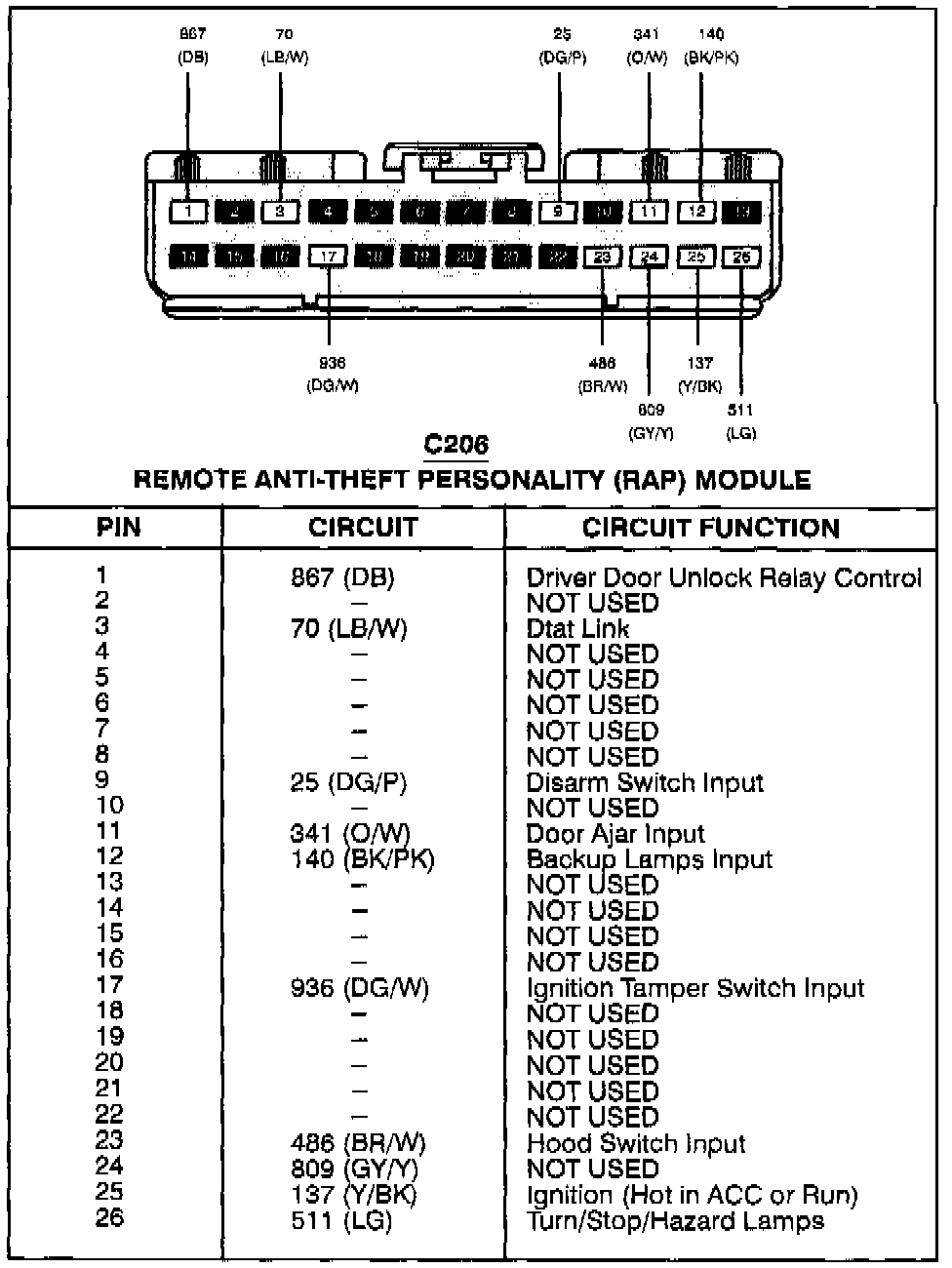

Remote Anti-Theft Personality Module (C206):



Remote Anti-Theft Personality Module (C207):
