Pressure Feedback Exhaust Sensor: Service and Repair

REMOVAL

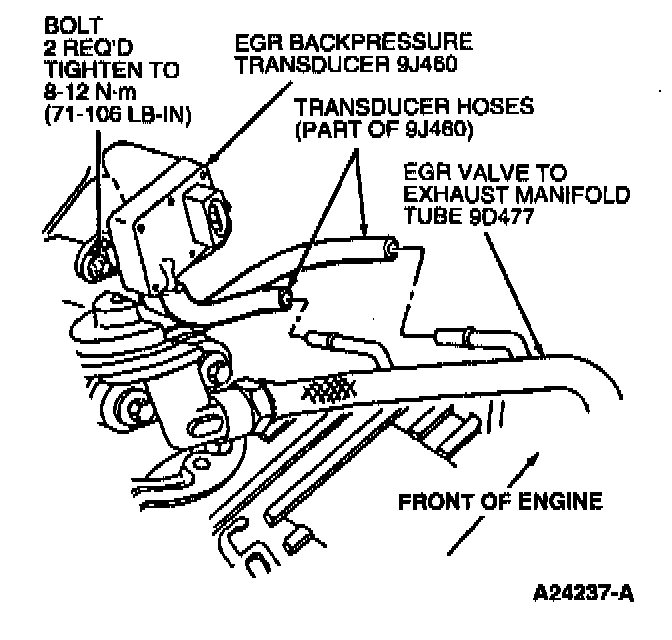

1. Disconnect EGR backpressure transducer hoses from EGR valve to exhaust manifold tube.
2. Remove EGR backpressure transducer retaining bolts from throttle body.
3. Disconnect fuel charging wiring from EGR backpressure transducer and remove EGR backpressure transducer.
4. Remove EGR backpressure transducer hoses from EGR backpressure transducer, if necessary.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten retaining bolts to 8-12 Nm (71-106 lb in).
