Home >> Ford >> 1998 >> Windstar V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

Engine

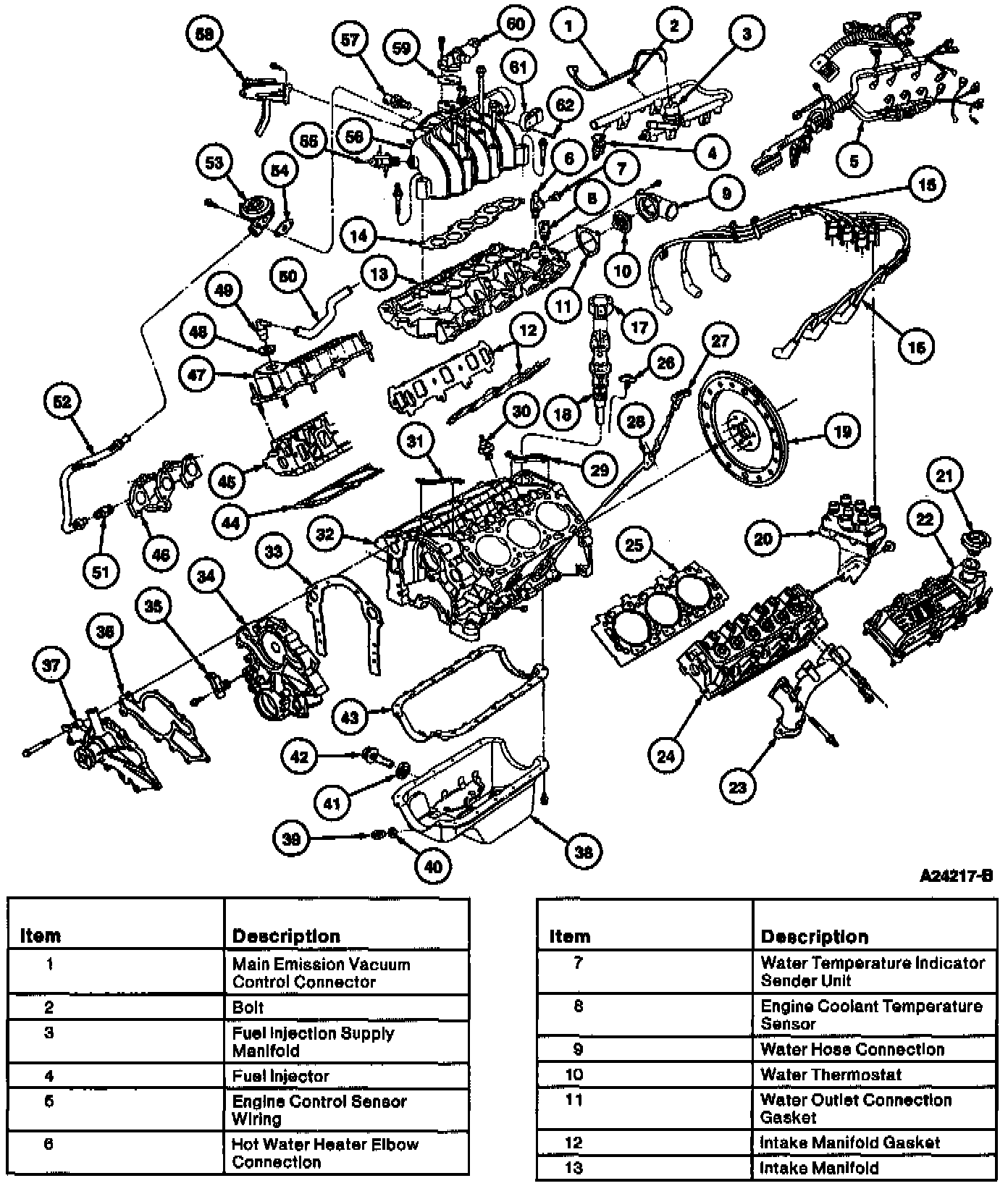

Part 1 Of 2:

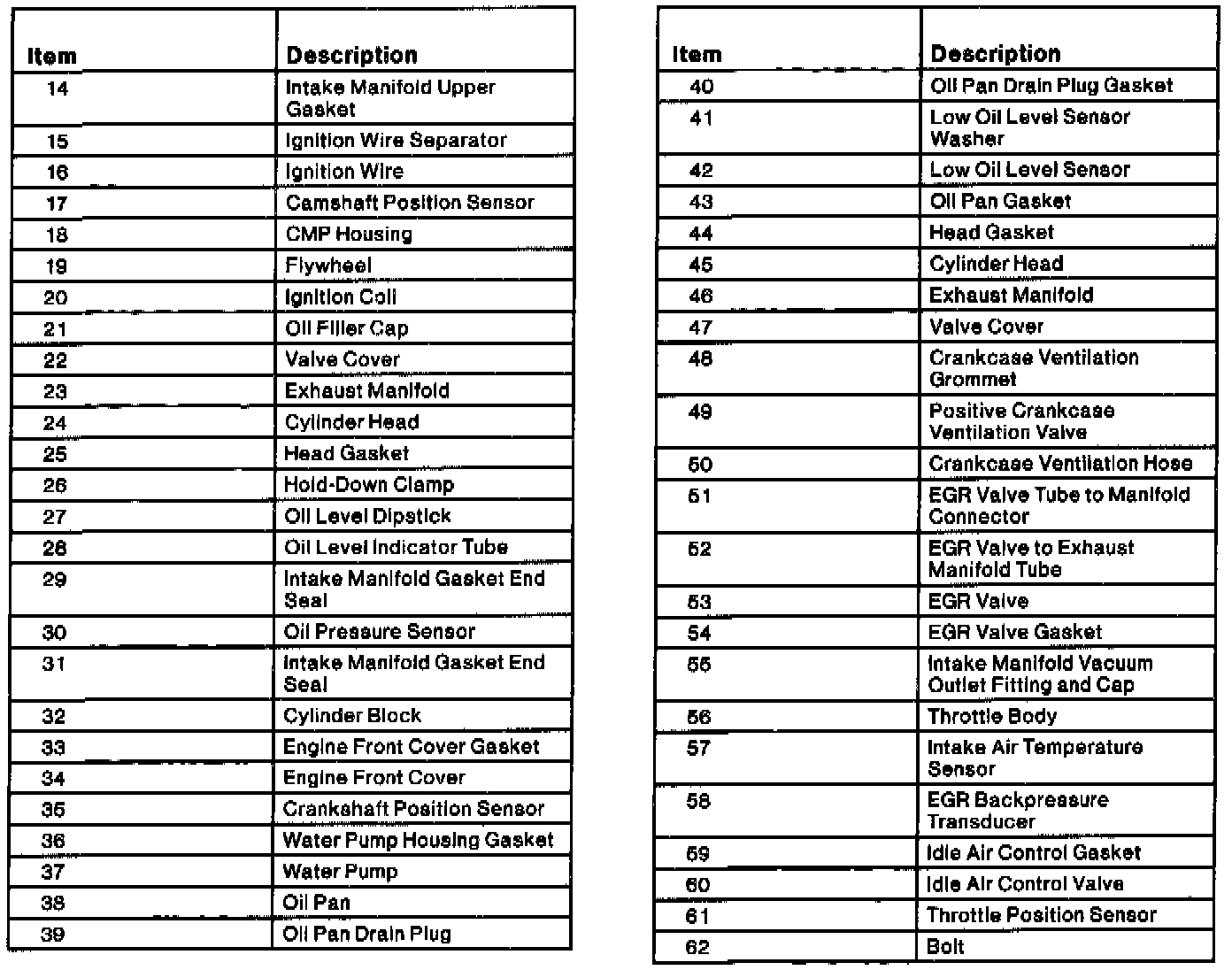

Part 2 Of 2:

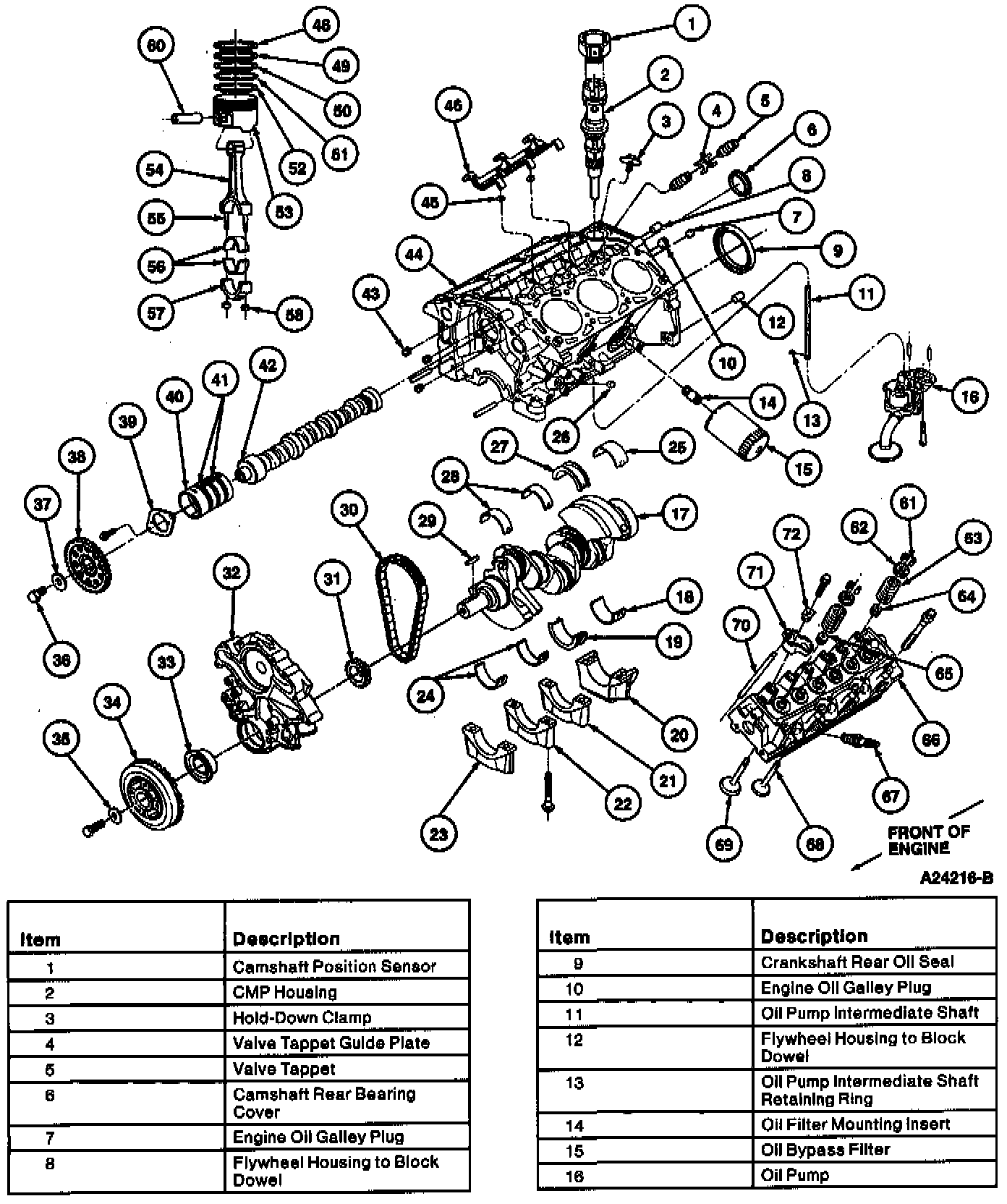

Part 1 Of 2:

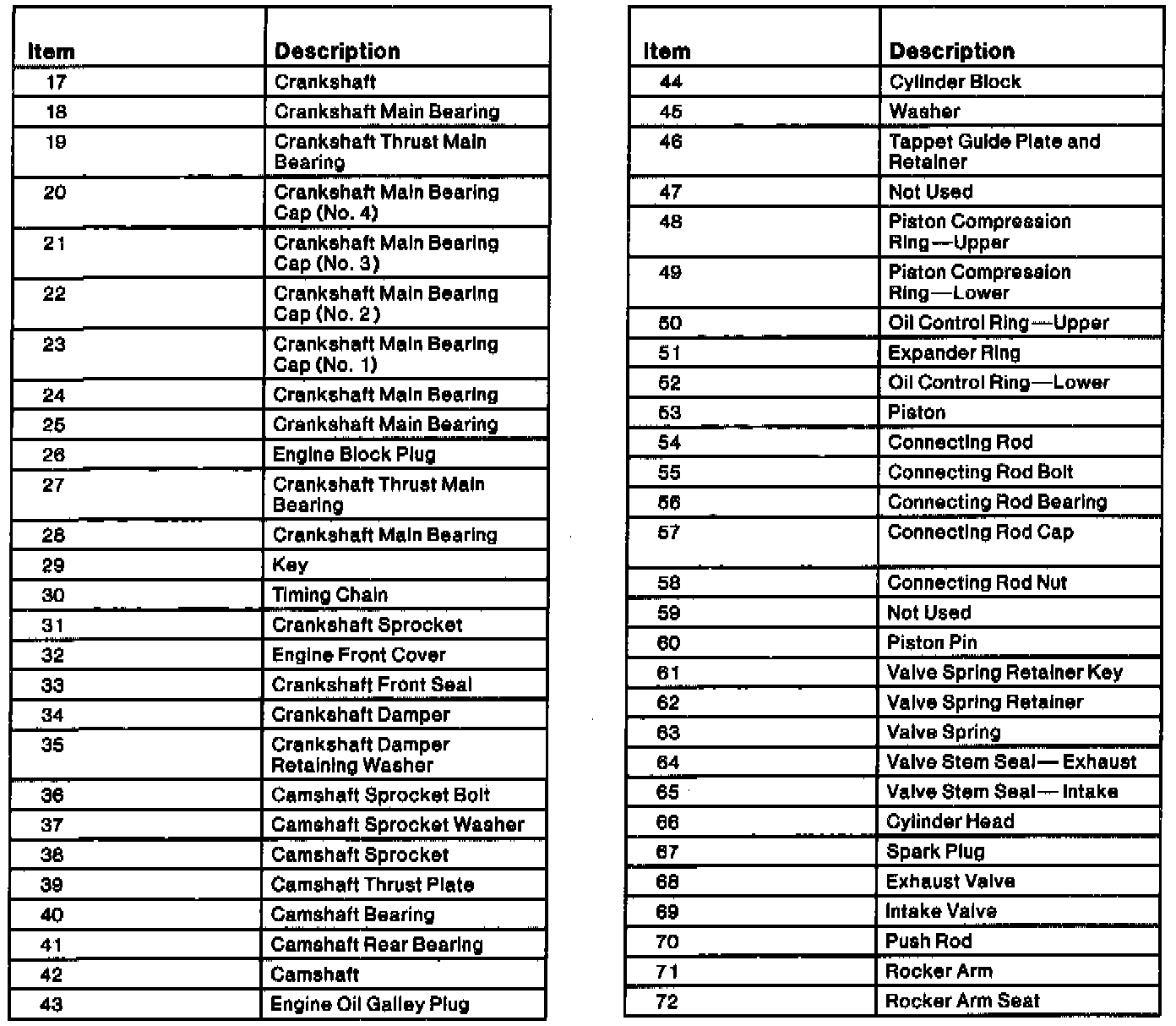

Part 2 Of 2:
