Coupe

Master Window/Door Lock Control Switch - Component Testing Procedure (Part 1 Of 2) (Coupe):




Master Window/Door Lock Control Switch - Component Testing Procedure (Part 2 Of 2) (Coupe):




Master Window/Door Lock Control Switch - Terminal Locations (Coupe):

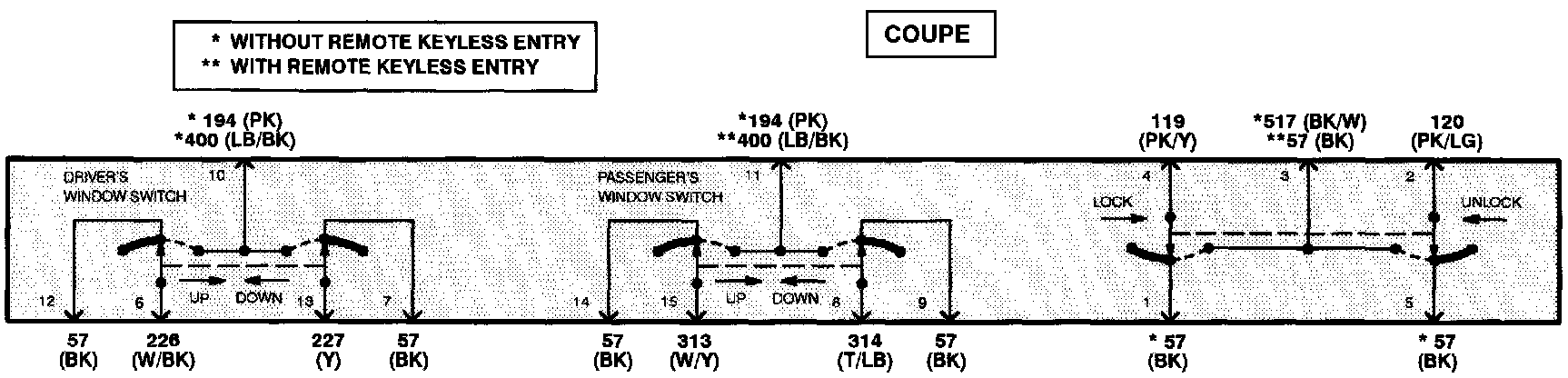

Master Window/Door Lock Control Switch - Schematic (Coupe):
