Throttle Position Sensor: Locations

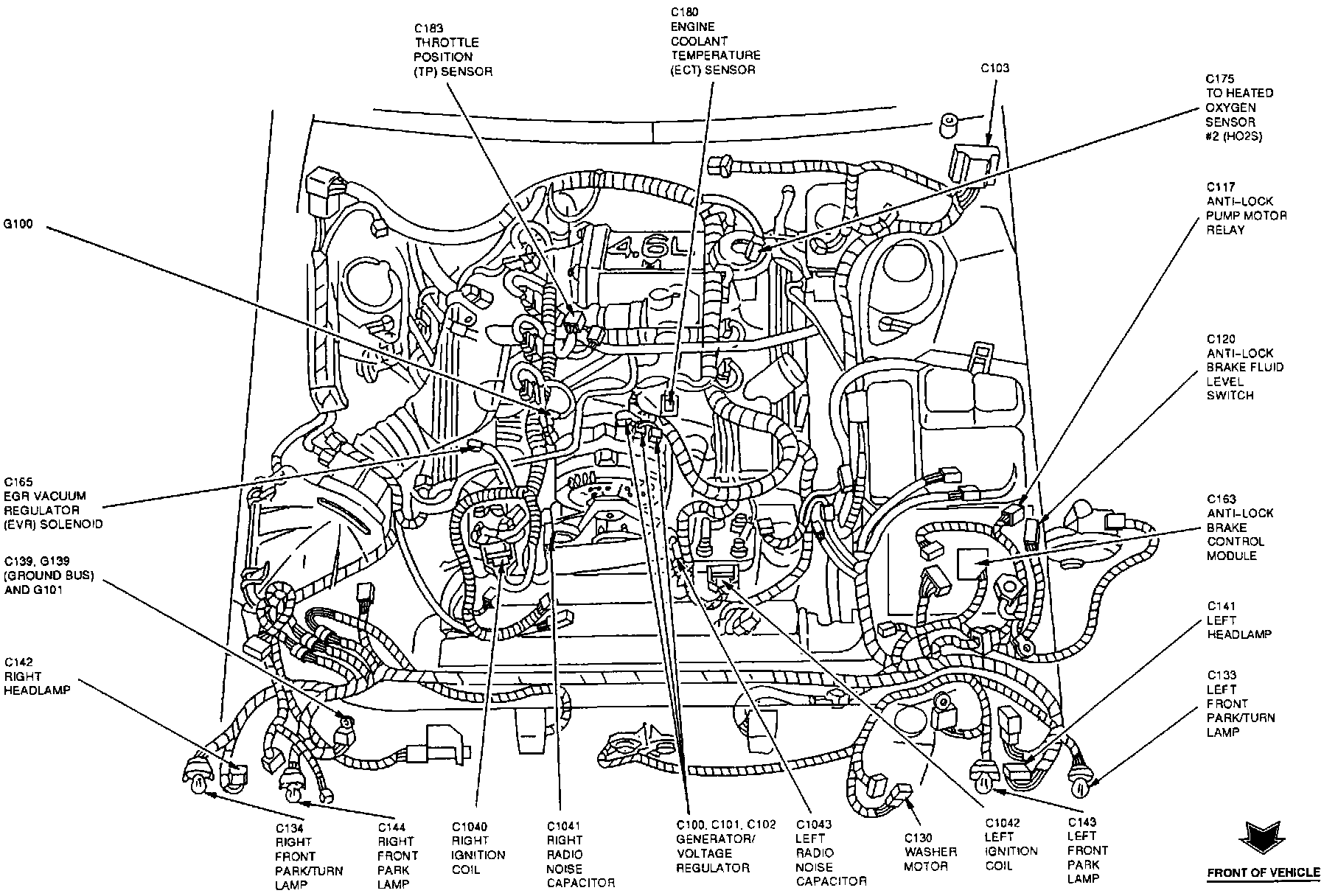

Engine View:

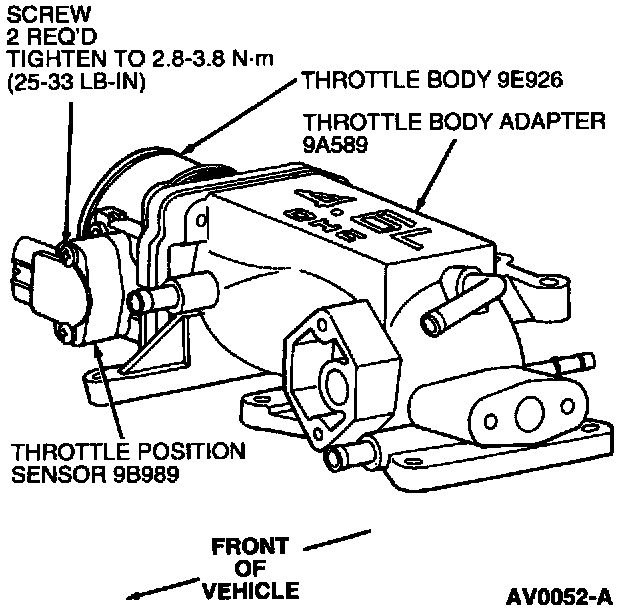

The Throttle Position Sensor is located on the top of engine, on throttle body.
