Home >> Ford >> 1997 >> Thunderbird V6-3.8L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module

Steering Control Module

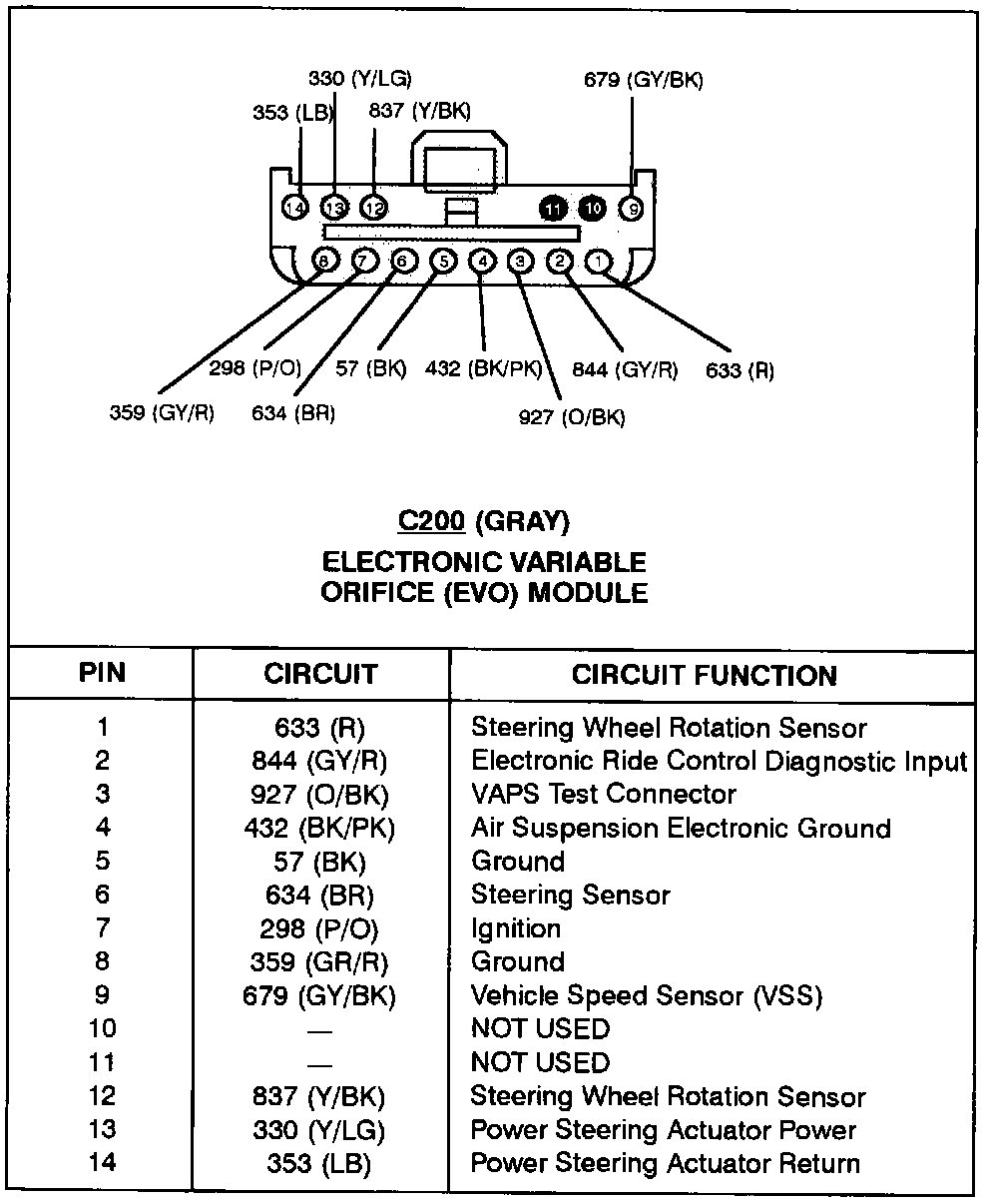

Electronic Variable Orifice Module:
