Air Bag Control Module
Air Bag Control Module

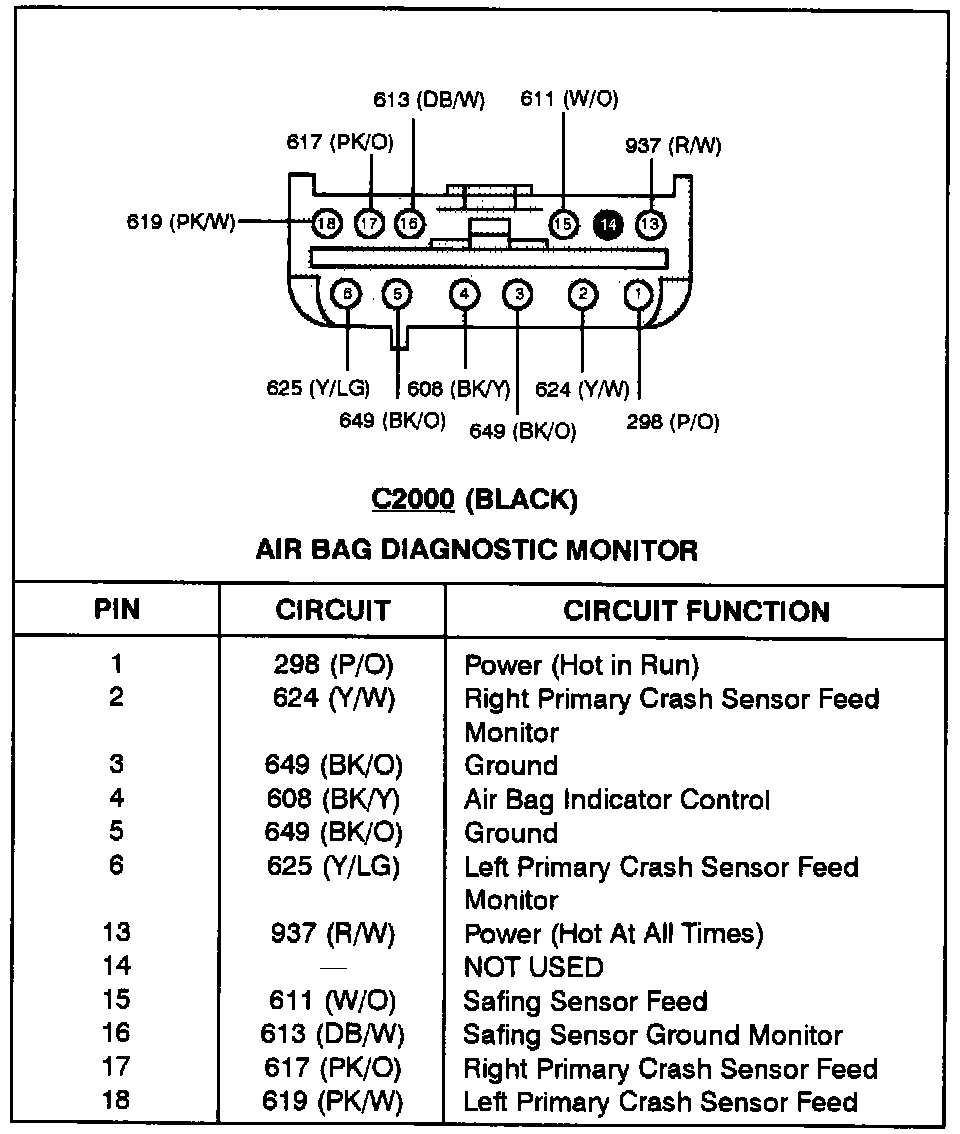

Air Bag Diagnostic Monitor (C2000):

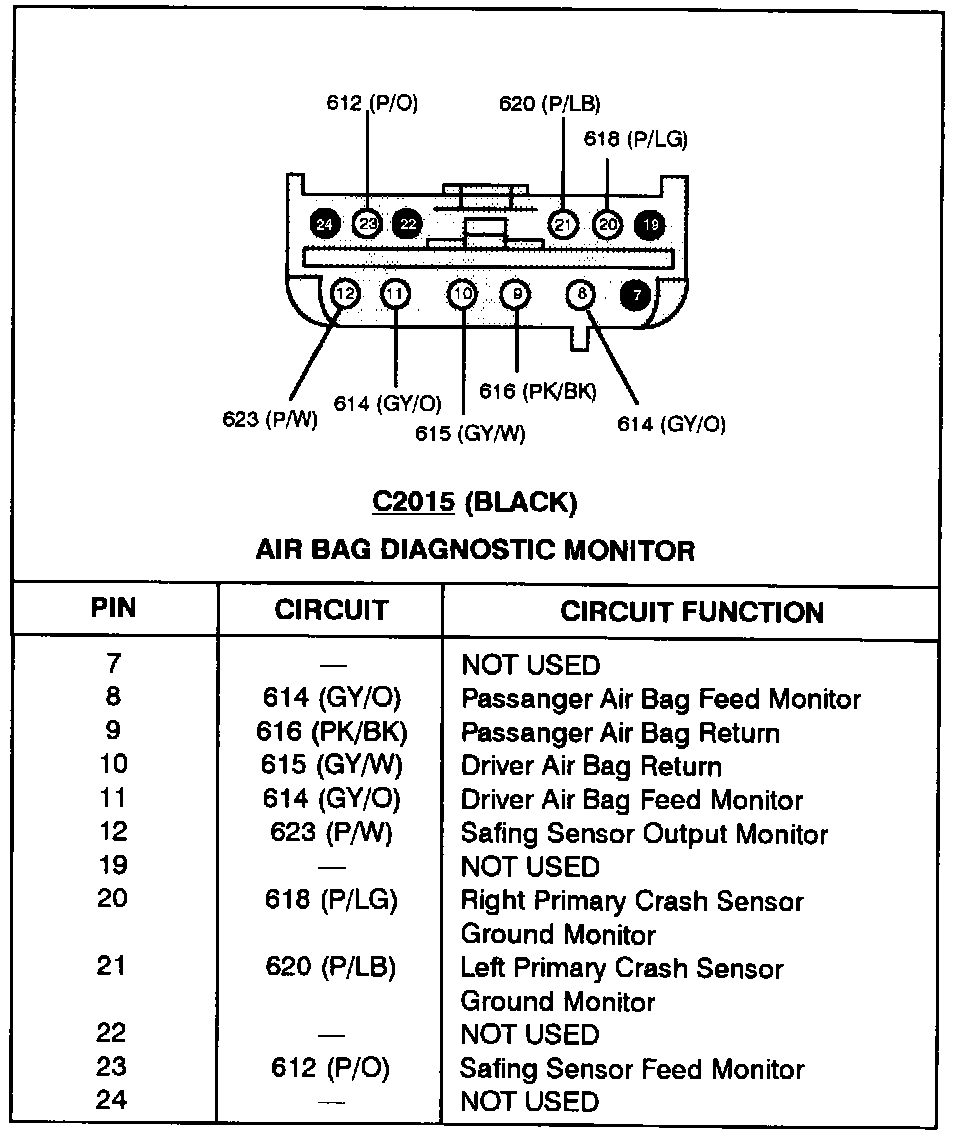

Air Bag Diagnostic Monitor (C2015):
