Home >> Ford >> 1997 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Relay >> Locations

Power Window Relay: Locations

Behind Instrument Panel View:

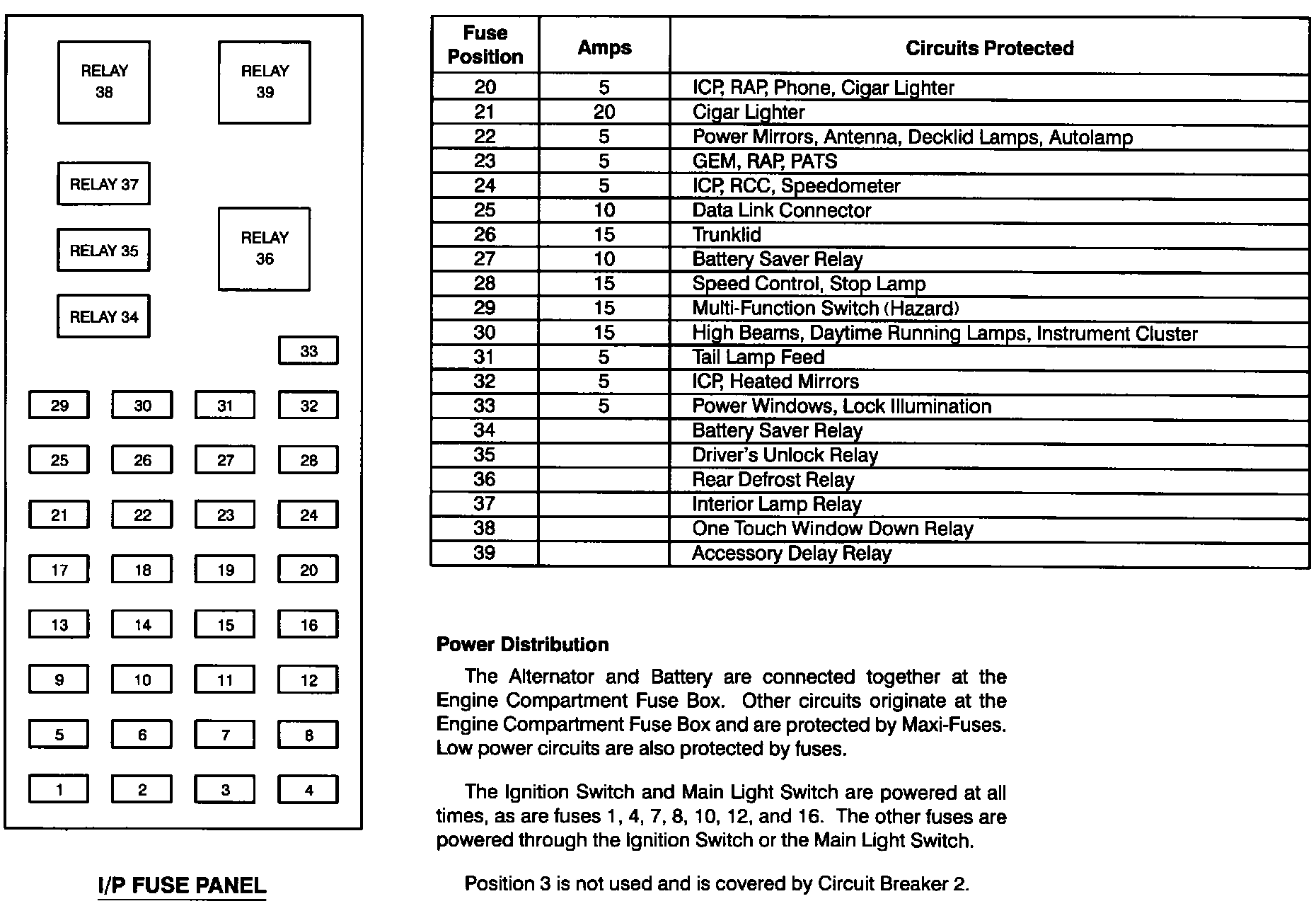

Instrument Panel Fuse Panel - Part 2 Of 2:





The One Touch Window Down Relay is located in the instrument panel fuse panel.
