With AX4S Transmission

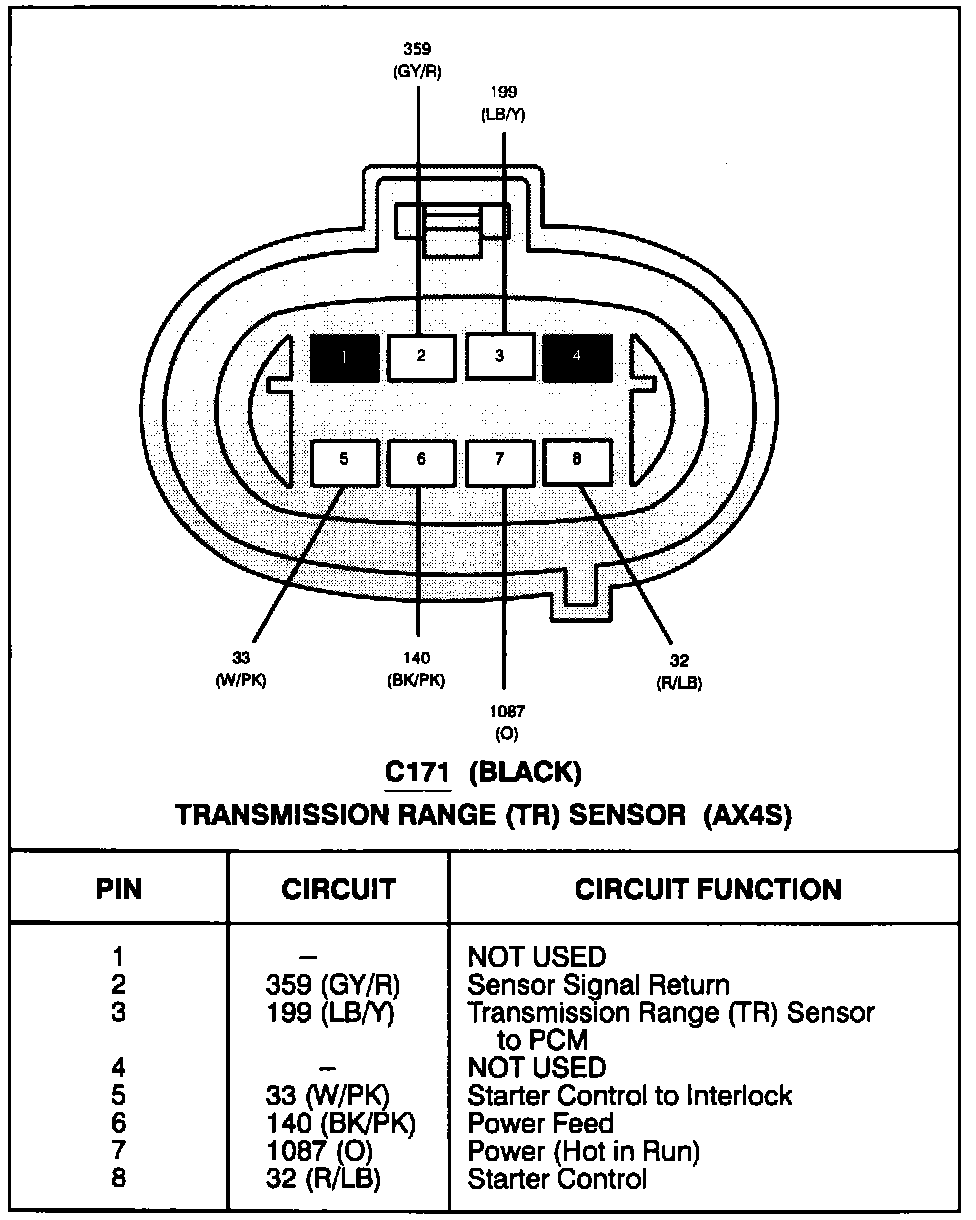

Transmission Range (TR) Sensor - Terminal Side:



Transmission Range Sensor (AX4S):
