With AX4N Transmission

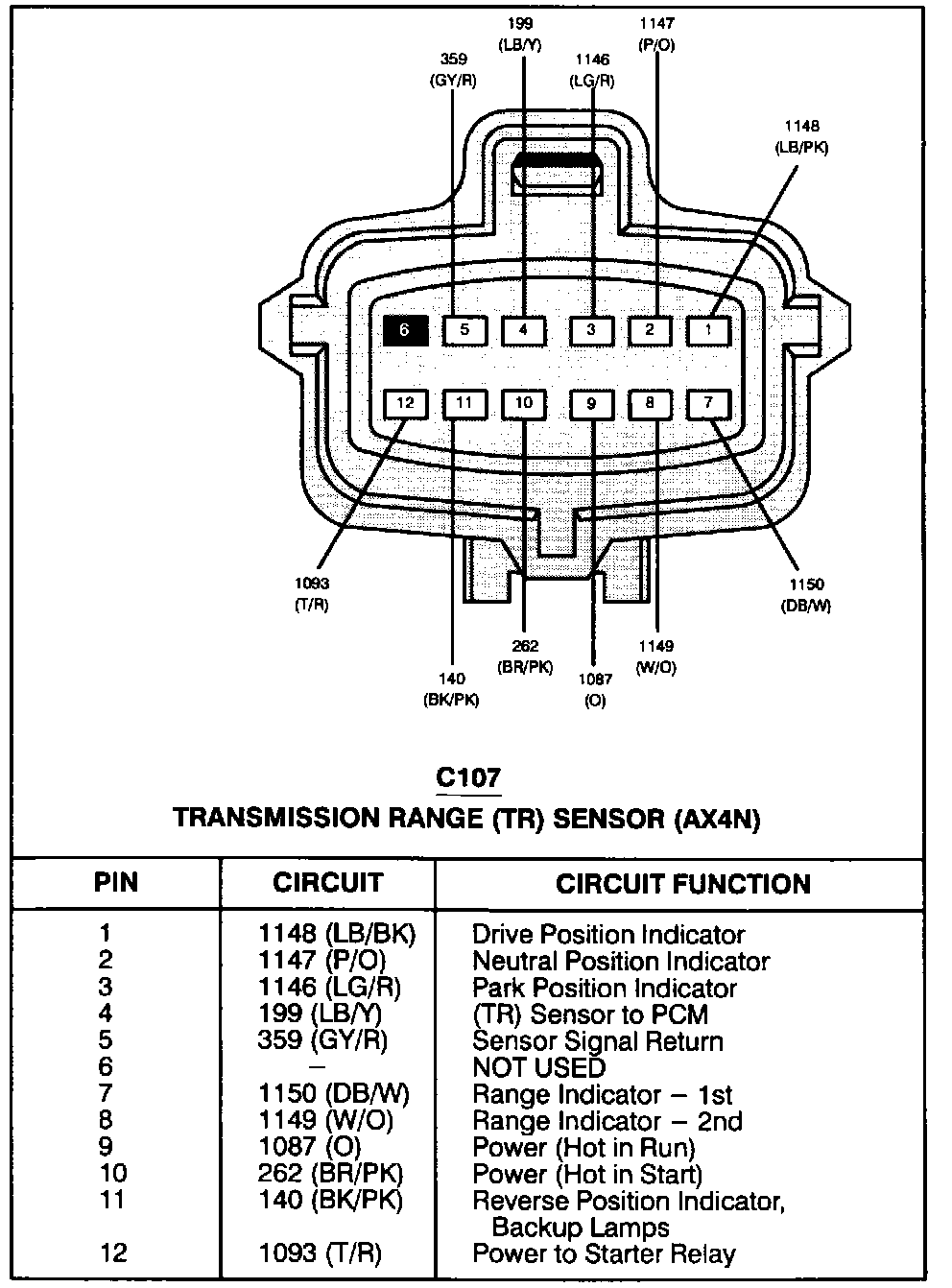

Transmission Range (TR) Sensor Vehicle Harness Connector:



Transmission Range Sensor (AX4N):
