Home >> Ford >> 1997 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Engine Compartment Fuse/Relay Box

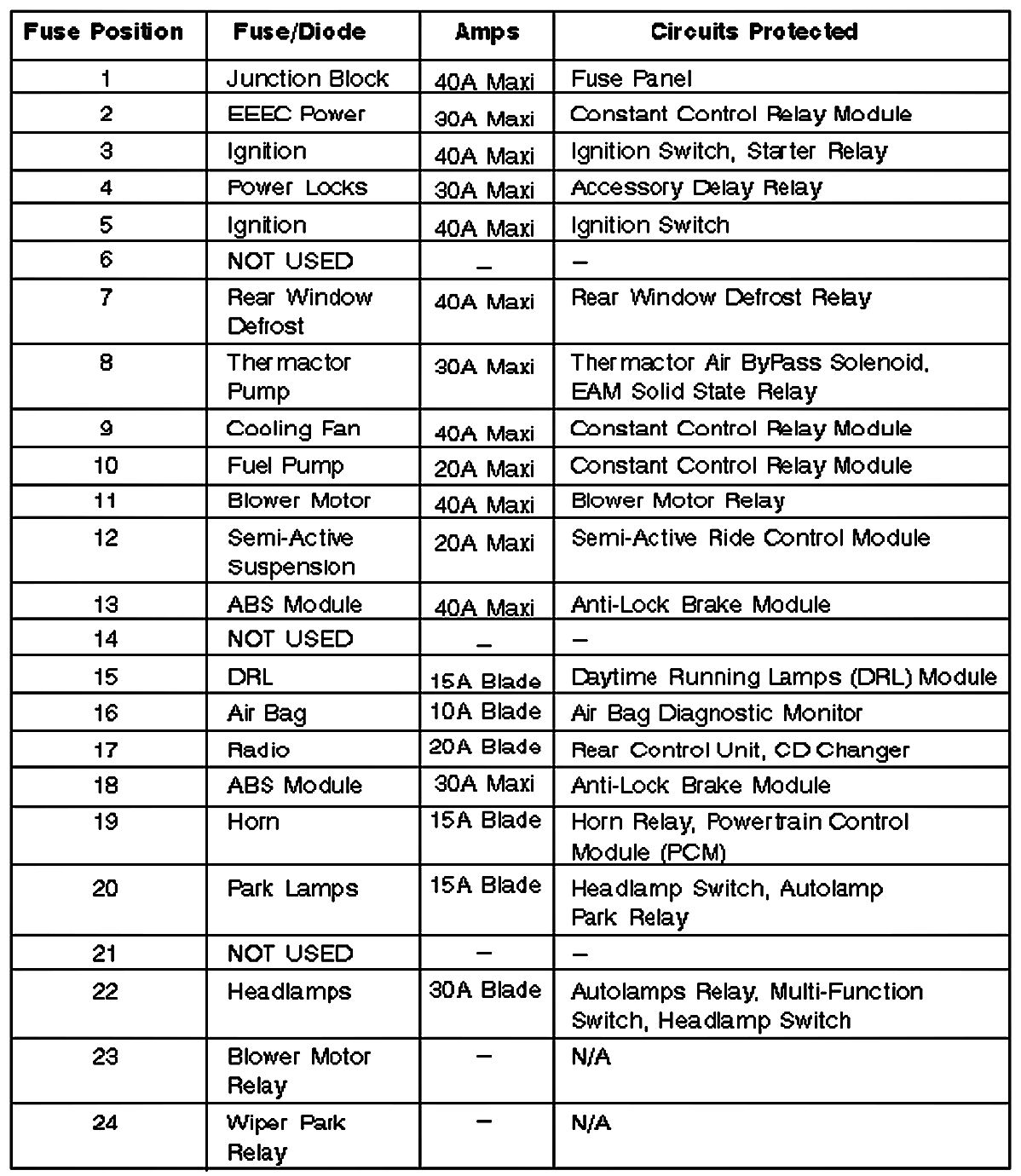

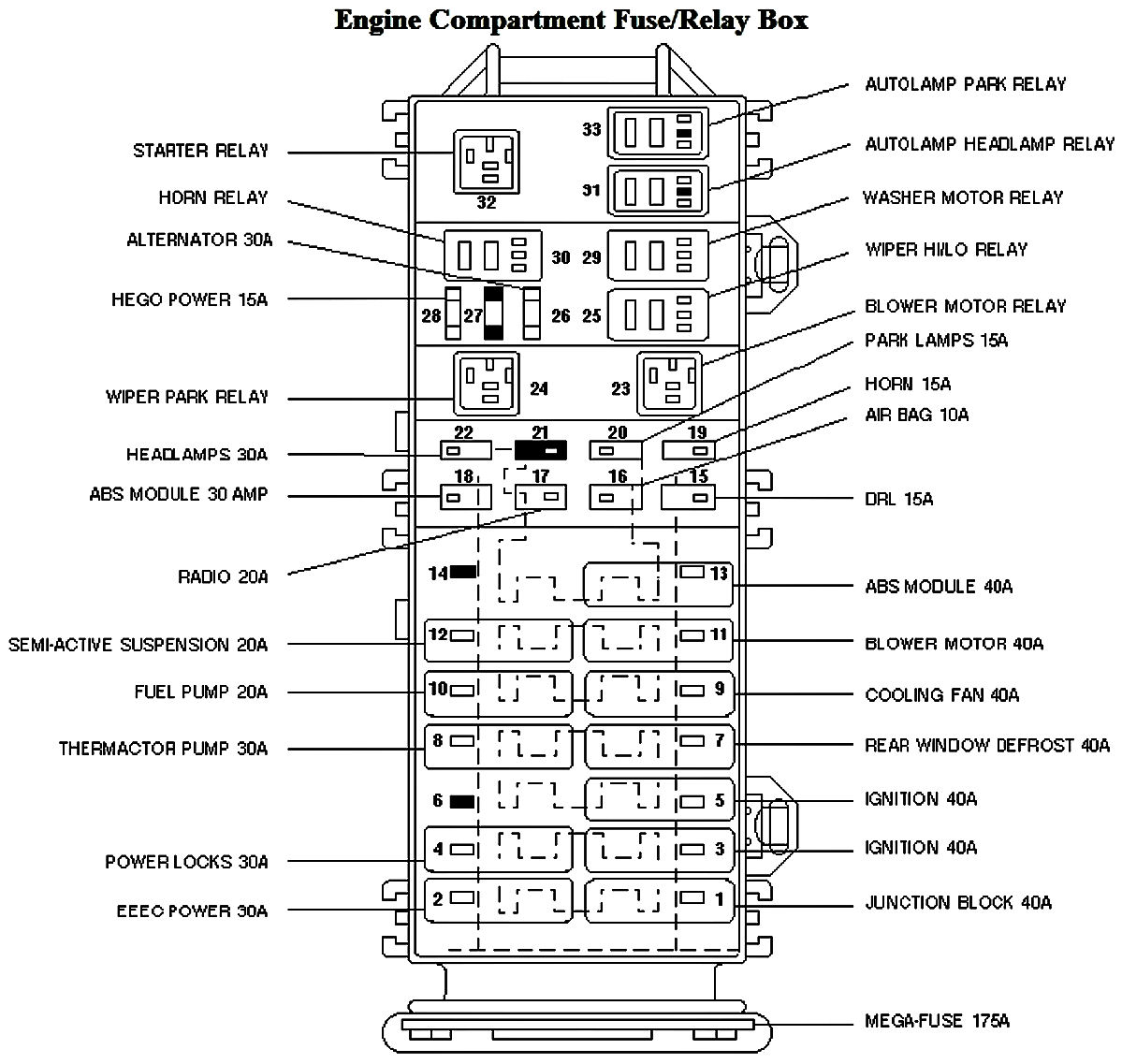

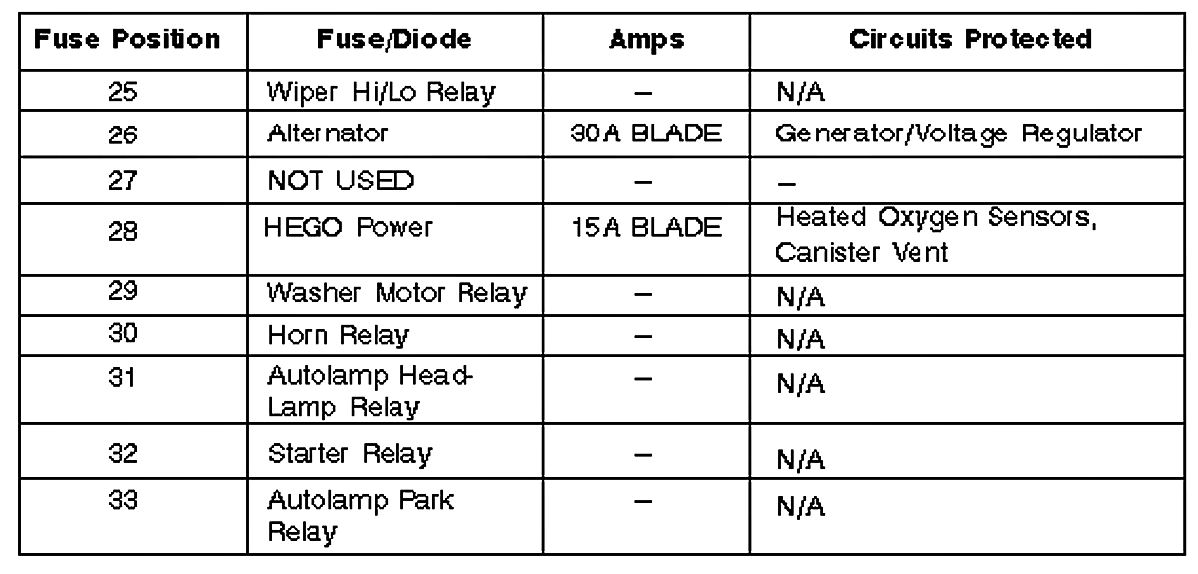

Engine Compartment Fuse/Relay Box




Note: The fuse/Relay Box is located in the engine compartment near the battery.
