Taurus V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Axle Shaft
Axle Shaft

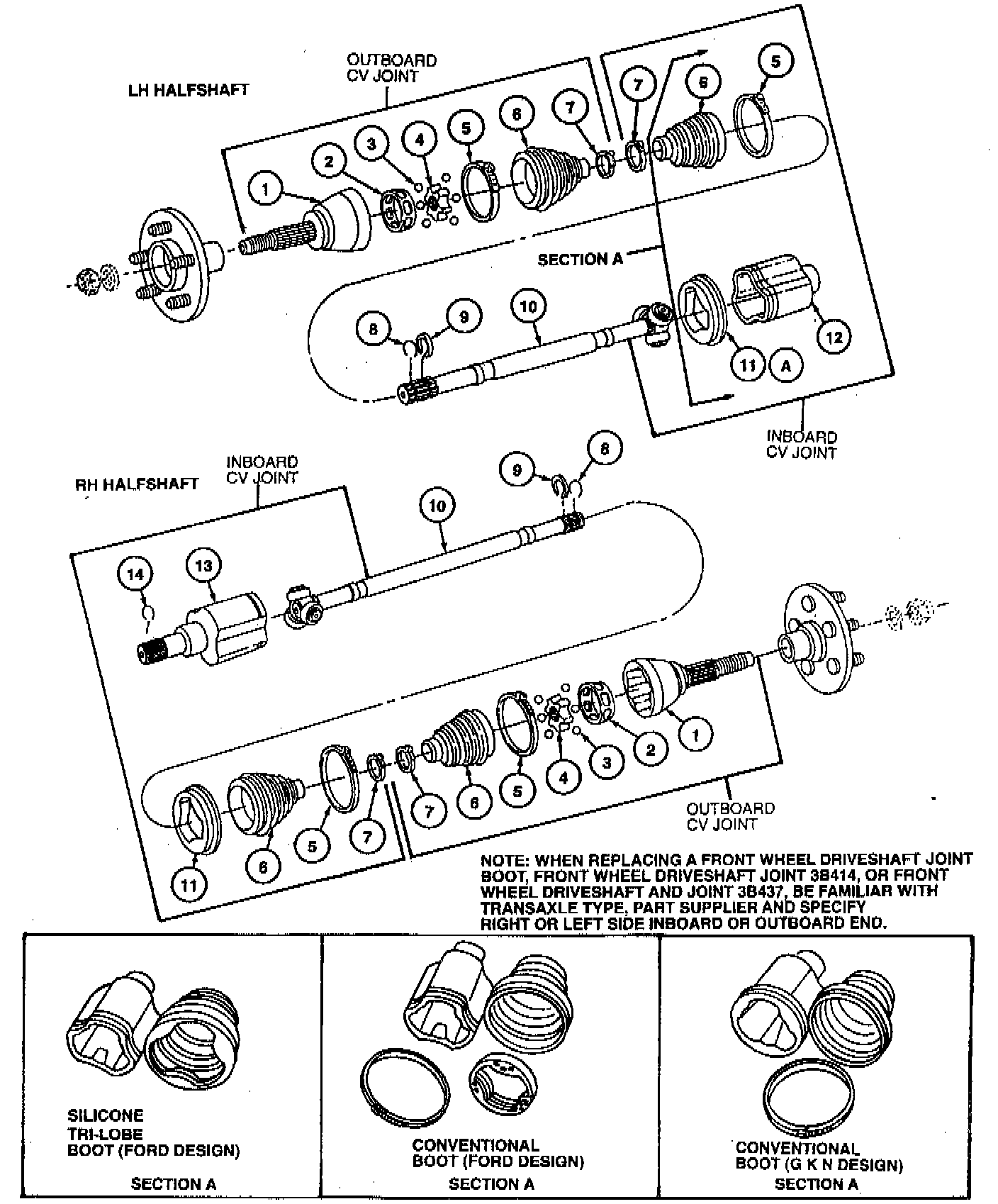

Halfshaft Disassembled View (Part 1 Of 2):
Halfshaft Disassembled View (Part 2 Of 2):
