Home >> Ford >> 1997 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> System Diagram >> AX4N

AX4N

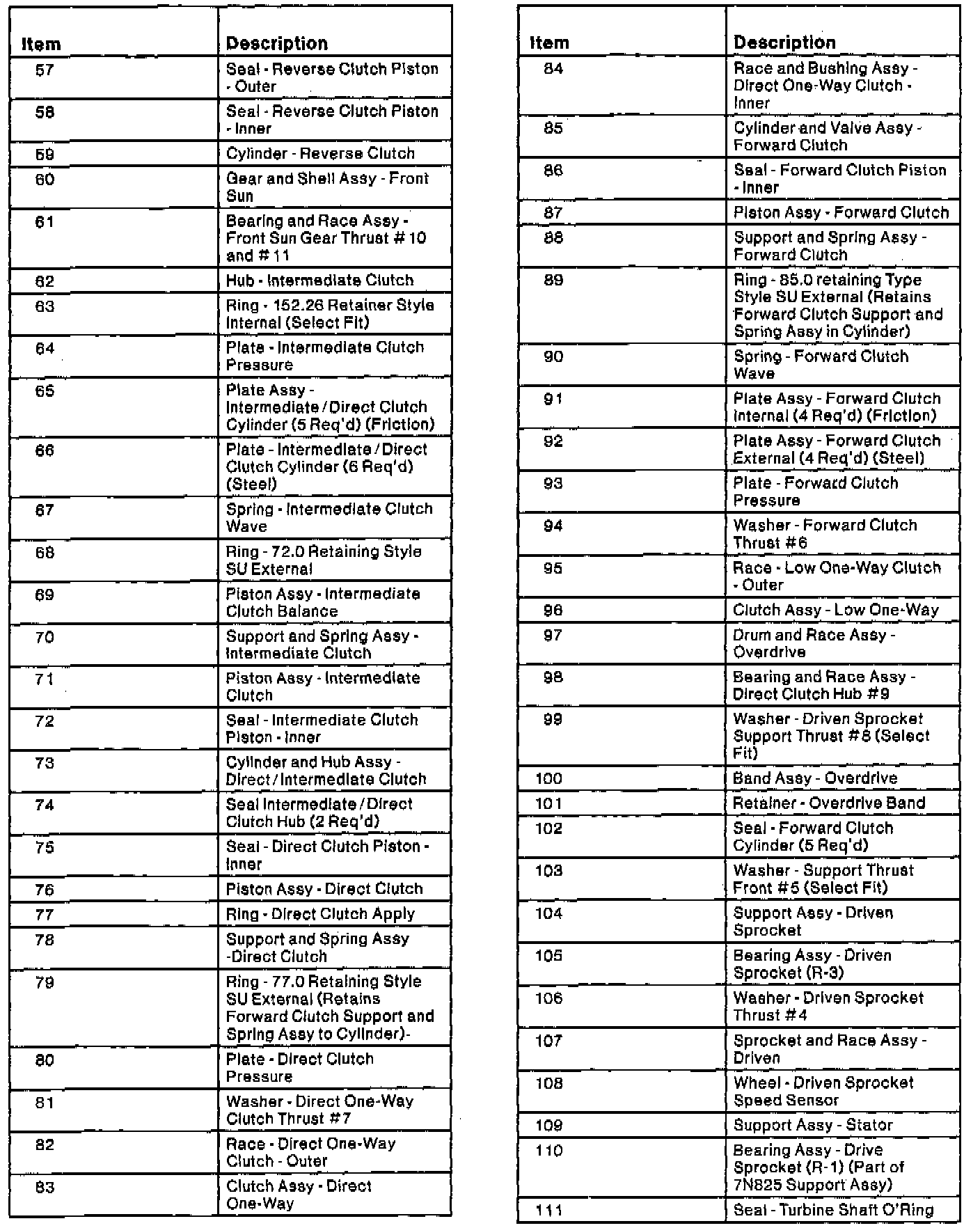

Part 1 Of 9:



Part 2 Of 9:



Part 3 Of 9:



Part 4 Of 9:



Part 5 Of 9:



Part 6 Of 9:



Part 7 Of 9:



Part 8 Of 9:



Part 9 Of 9:
