Home >> Ford >> 1997 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Windshield Washer Switch >> Multifunction Switch

Multifunction Switch

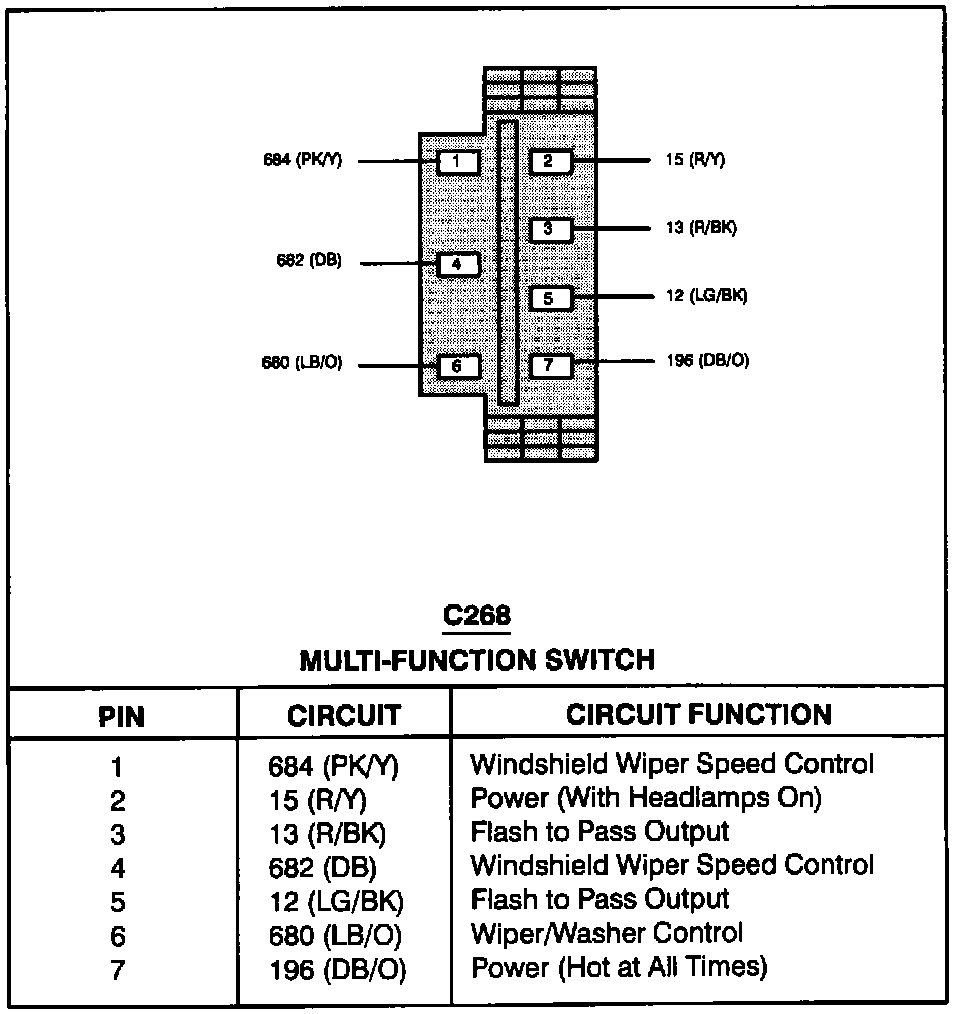

Multi-Function Switch (C268):

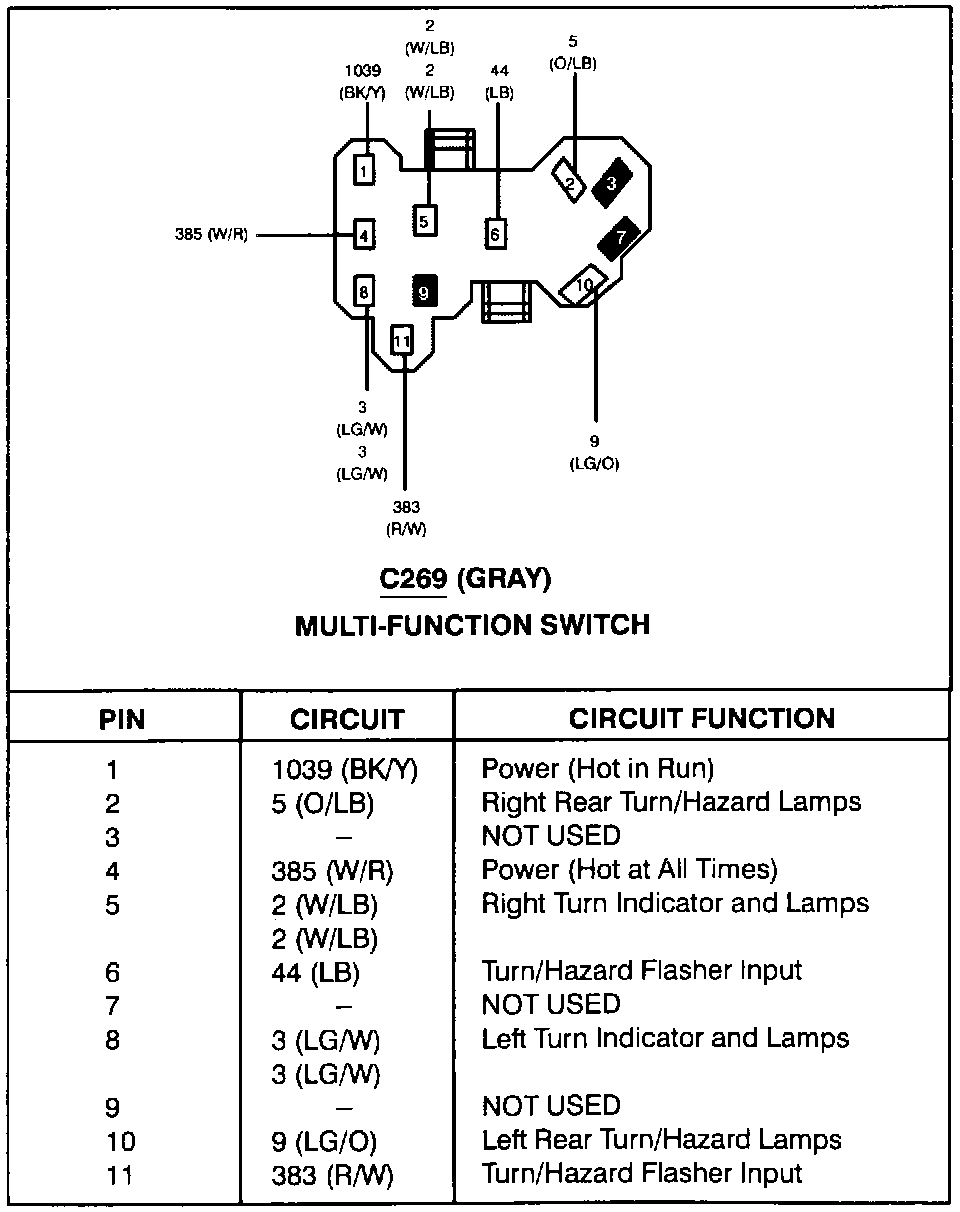

Multi-Function Switch (C269):
