Home >> Ford >> 1997 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Master

Master

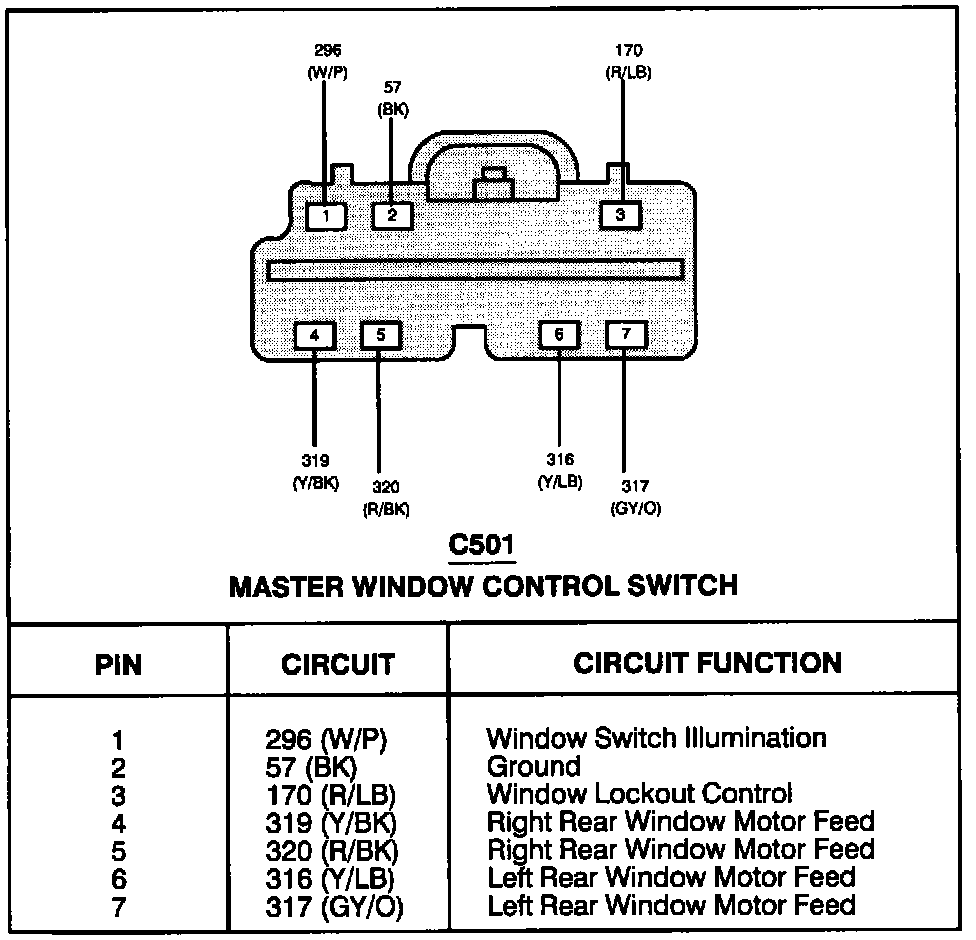

Master Window Control Switch (C501):

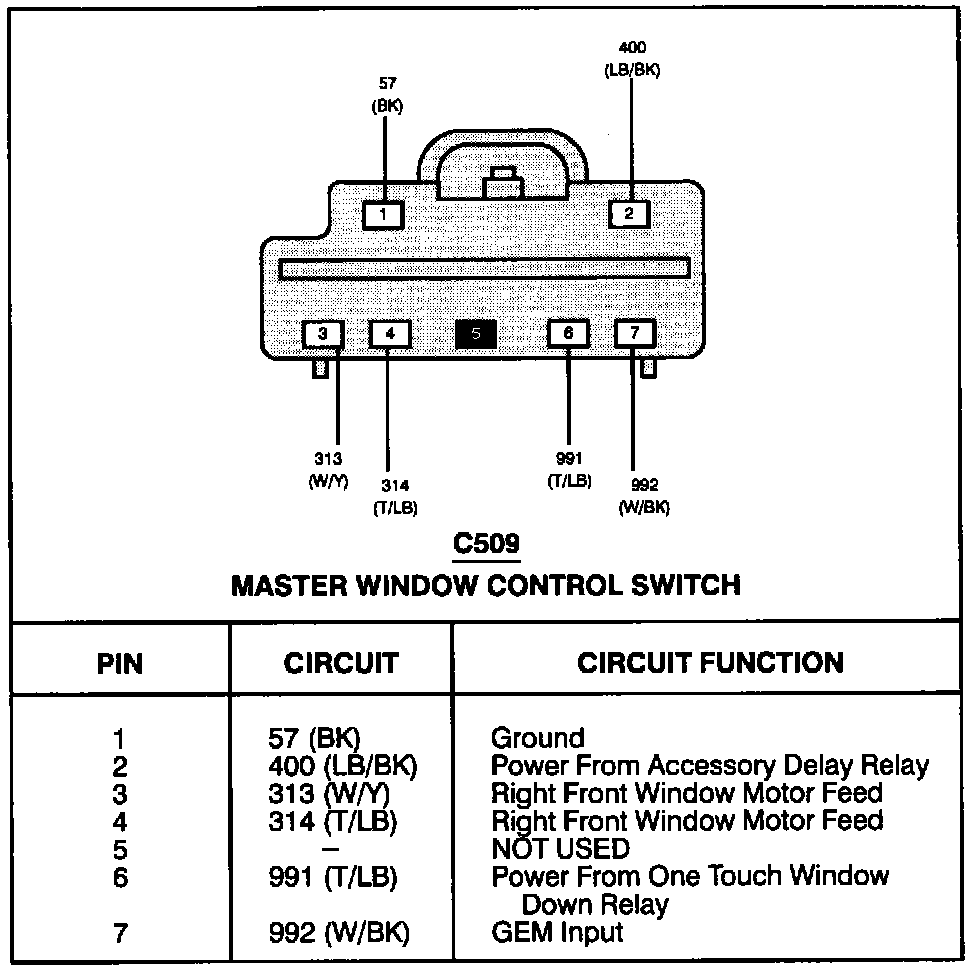

Master Window Control Switch (C509):
