Ford
>>
1997
>>
Taurus V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft and Alarm Systems
>>

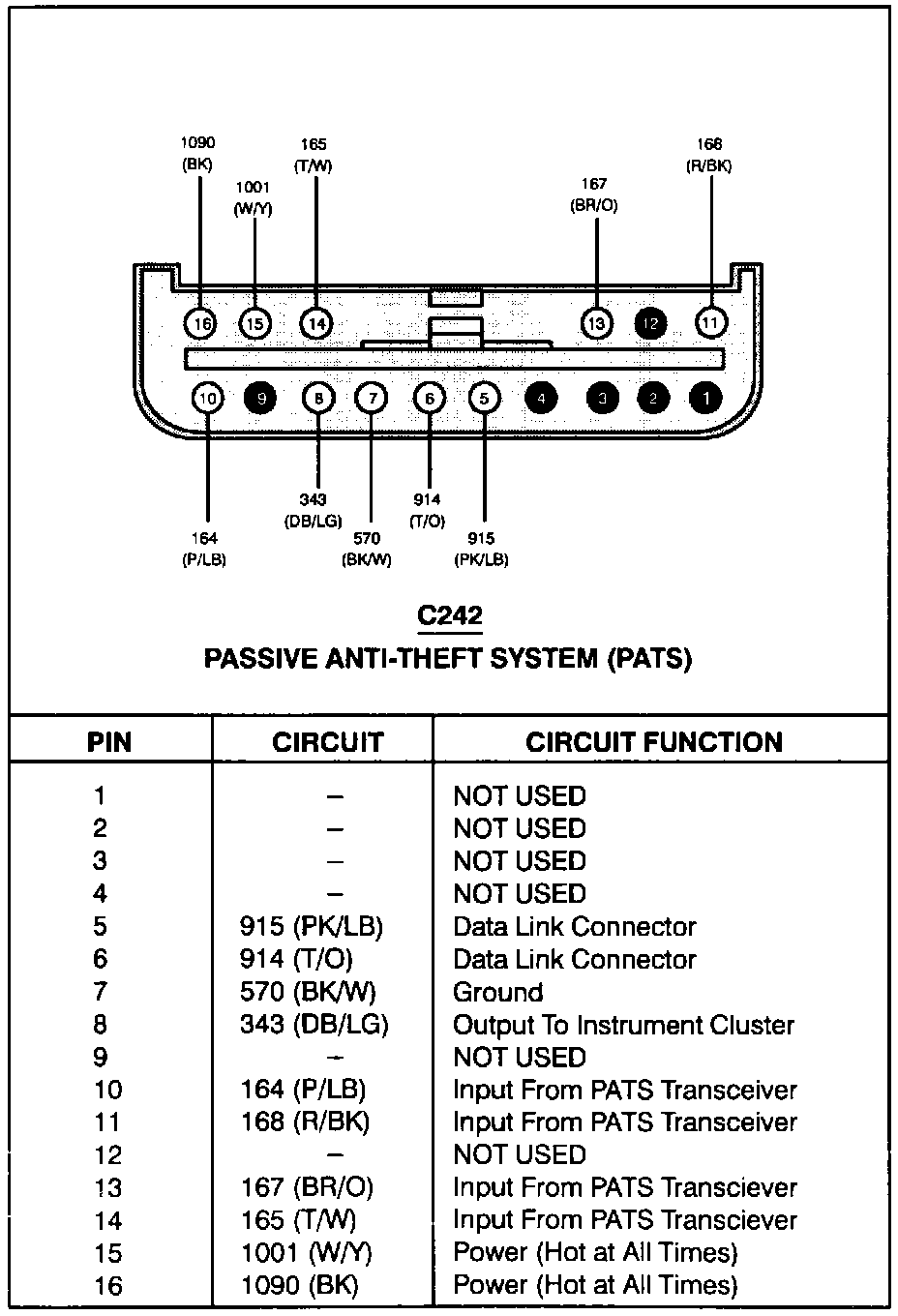

System Diagram
System Diagram
Passive Anti-Theft System:
