M/T Technical Data

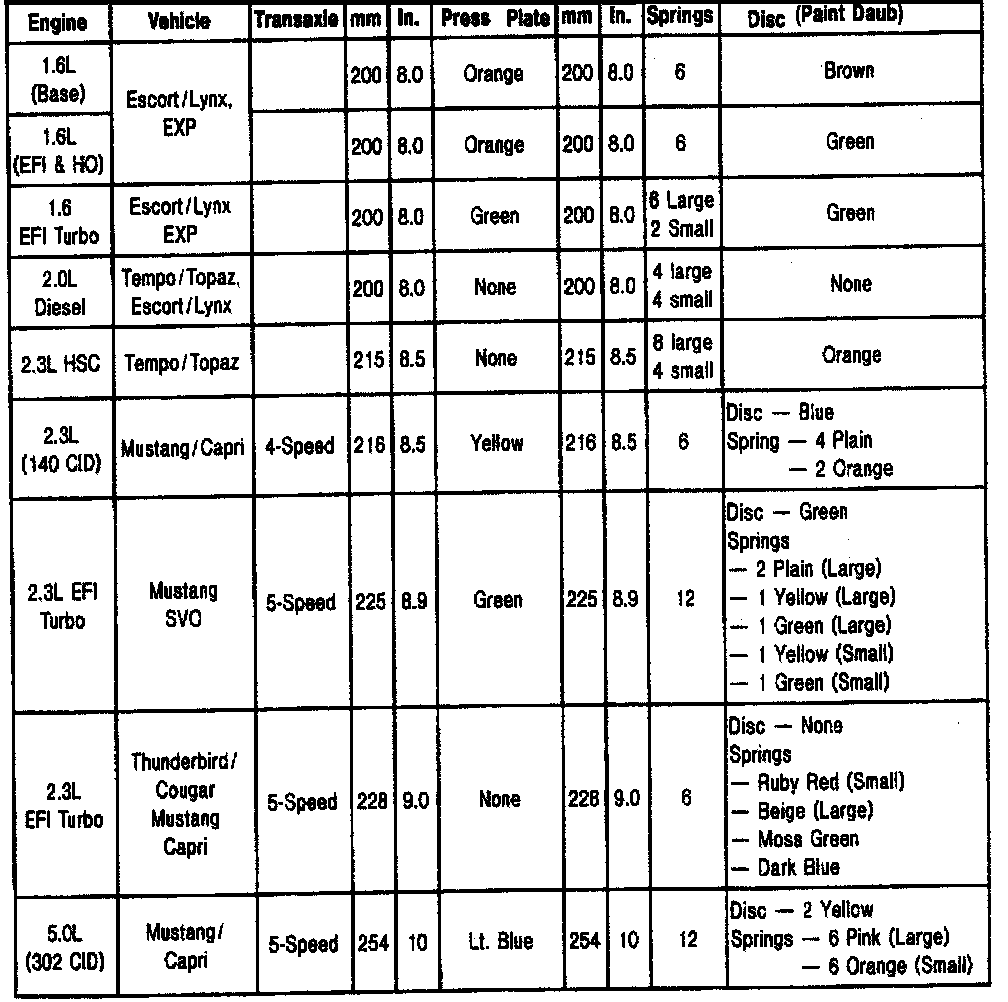

T5OD 5-spd M/T, Clutch/Pressure Plate:





T5OD 5-spd M/T, Clutch Runout:

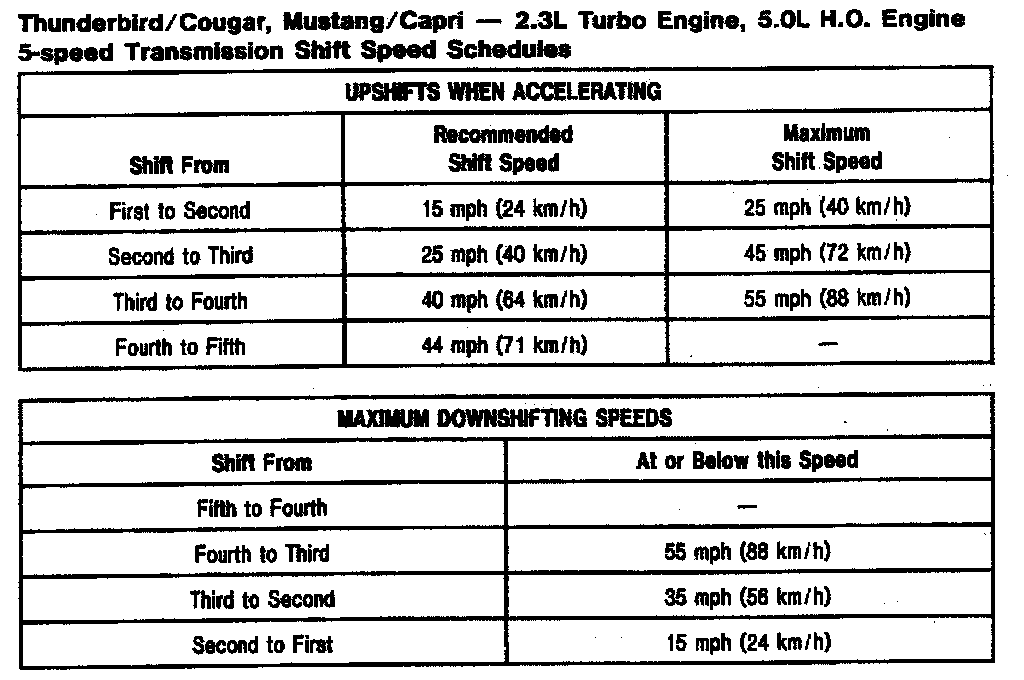

T5OD 5-spd M/T, Shift Speed (2.3L Turbo/5.0 HO):





T5OD 5-spd M/T, Gear Ratios (2.3L Mustang/Capri):






T5OD 5-spd M/T, Gear Ratios (Merkur):





T5OD 5-spd M/T, Shift Speeds (Merkur):
