Home >> Ford >> 1997 >> Mustang V6-3.8L VIN 4 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Assembly

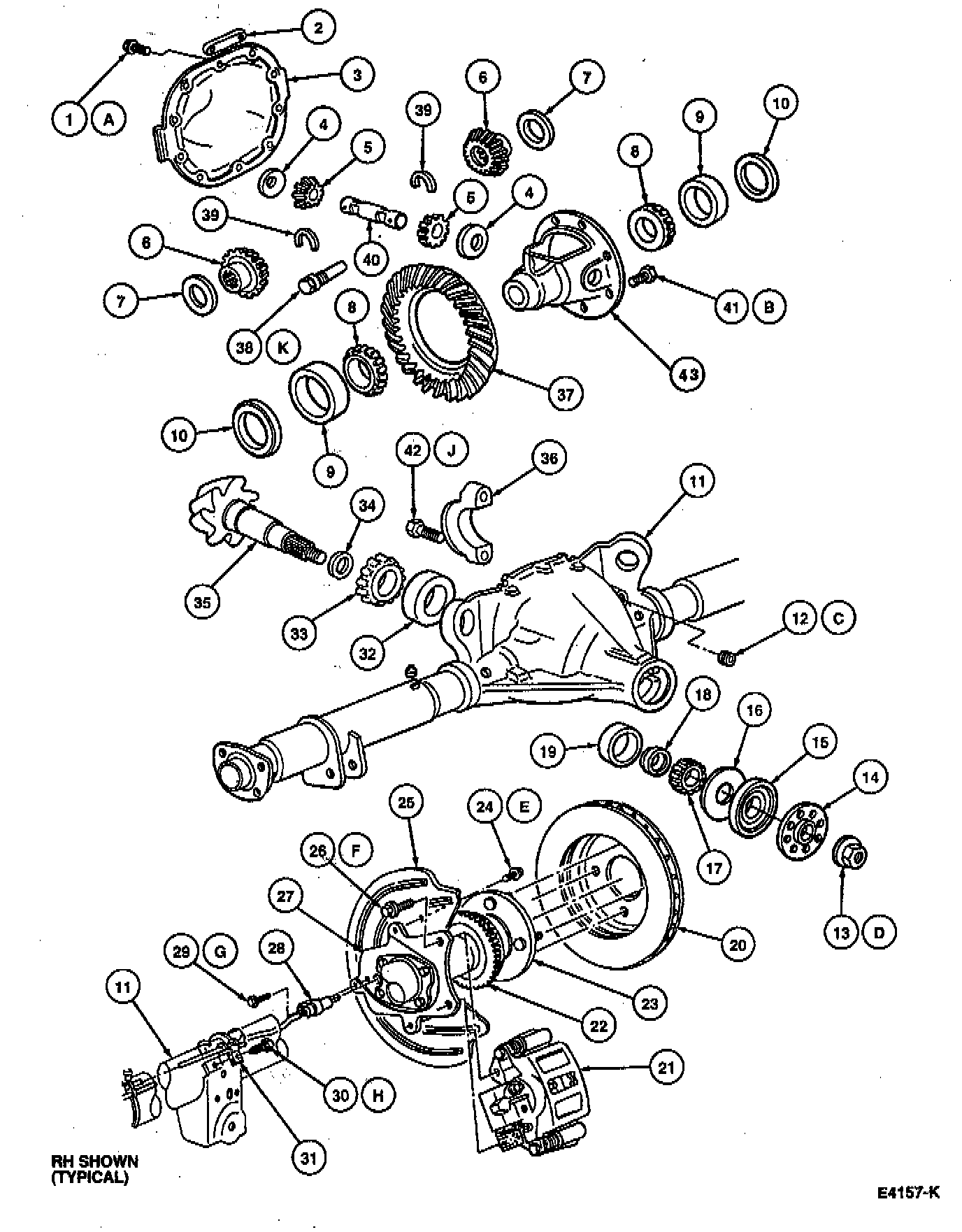

Differential Assembly

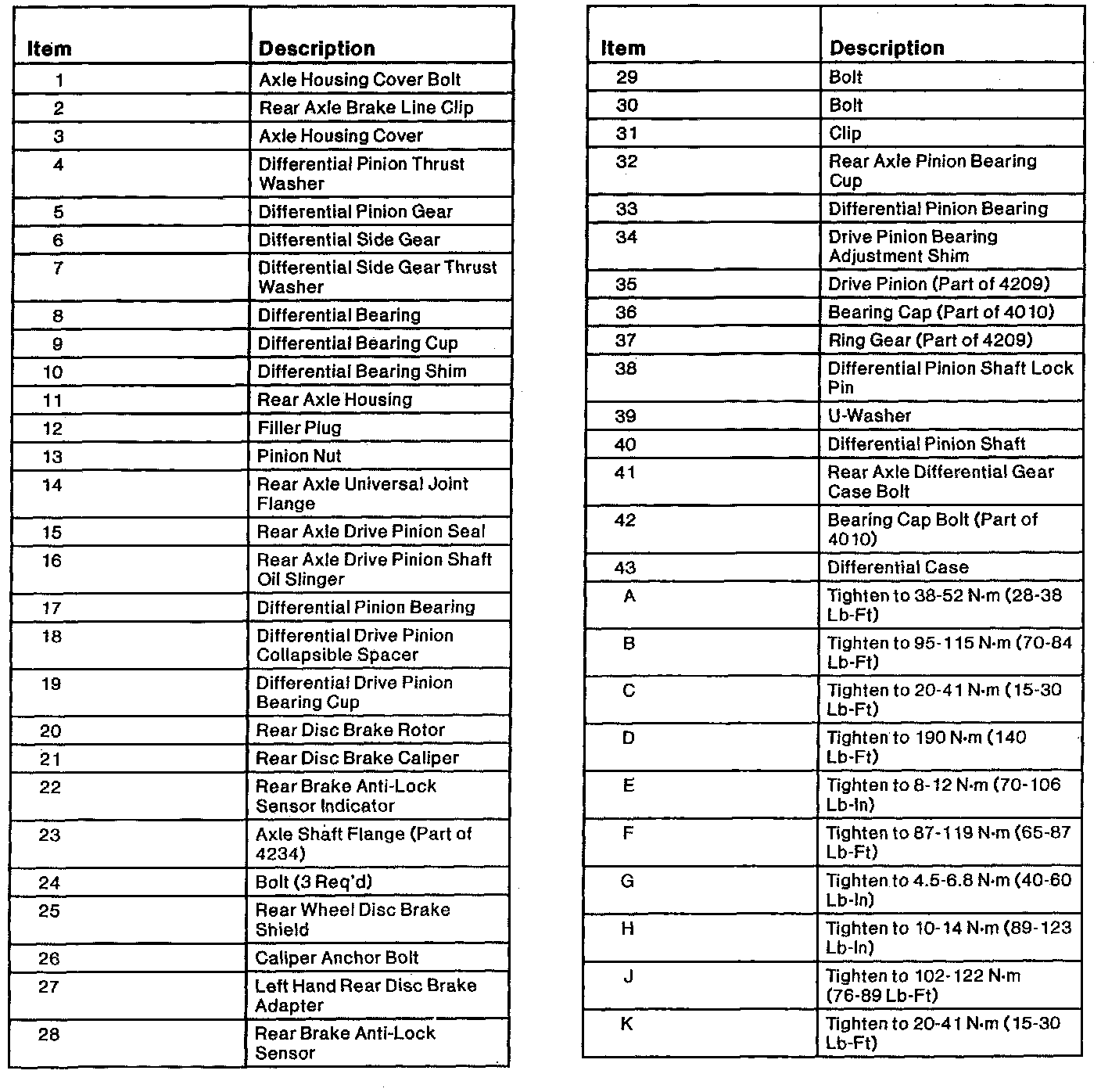

Part 1 Of 2:



Part 2 Of 2:
