Home >> Ford >> 1997 >> Mustang V6-3.8L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Switch >> Master Window/Door Lock Control Switch >> Convertible

Convertible

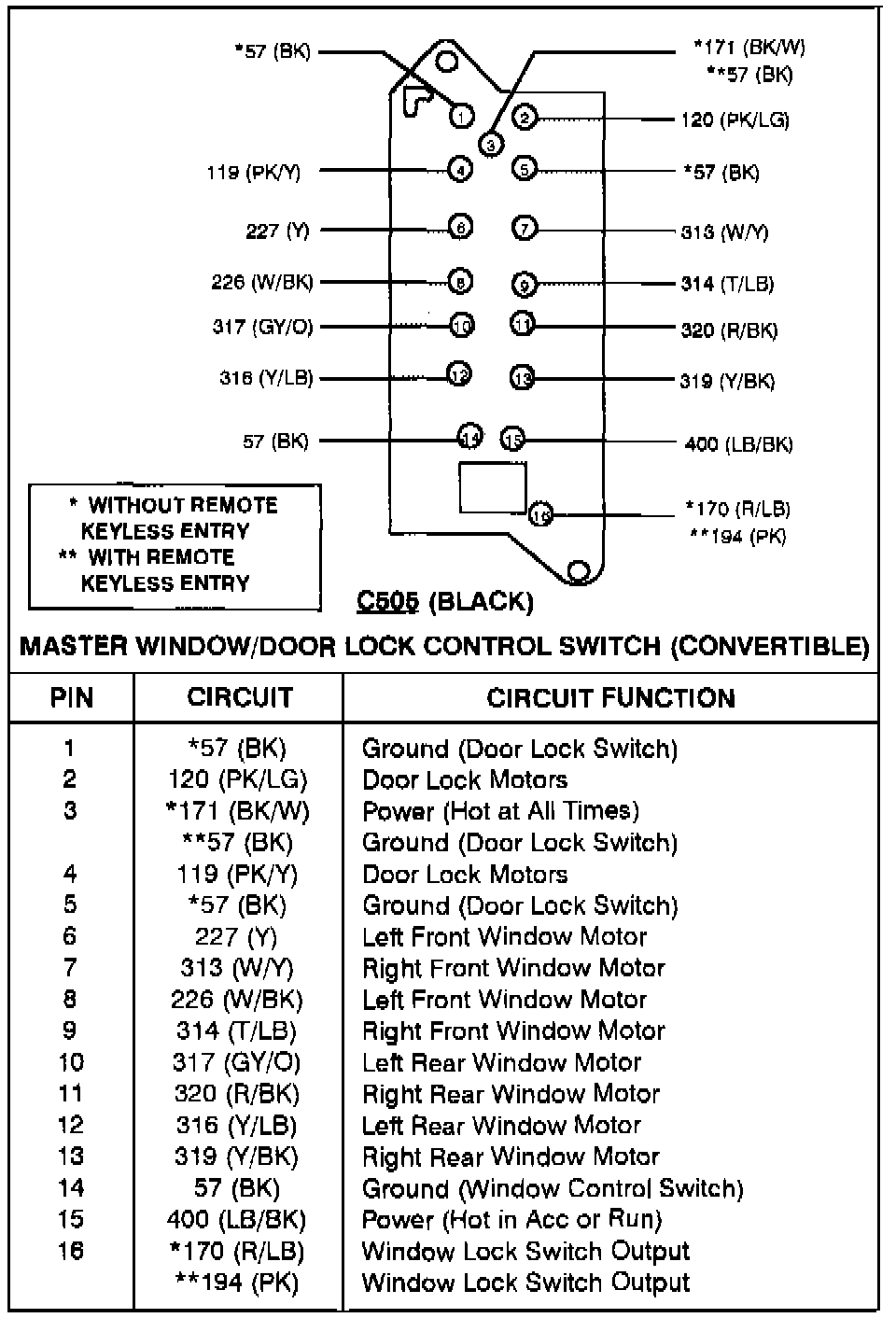

Master Window/Door Lock Control Switch (Convertible):
