Home >> Ford >> 1997 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Control Module

Suspension Control Module

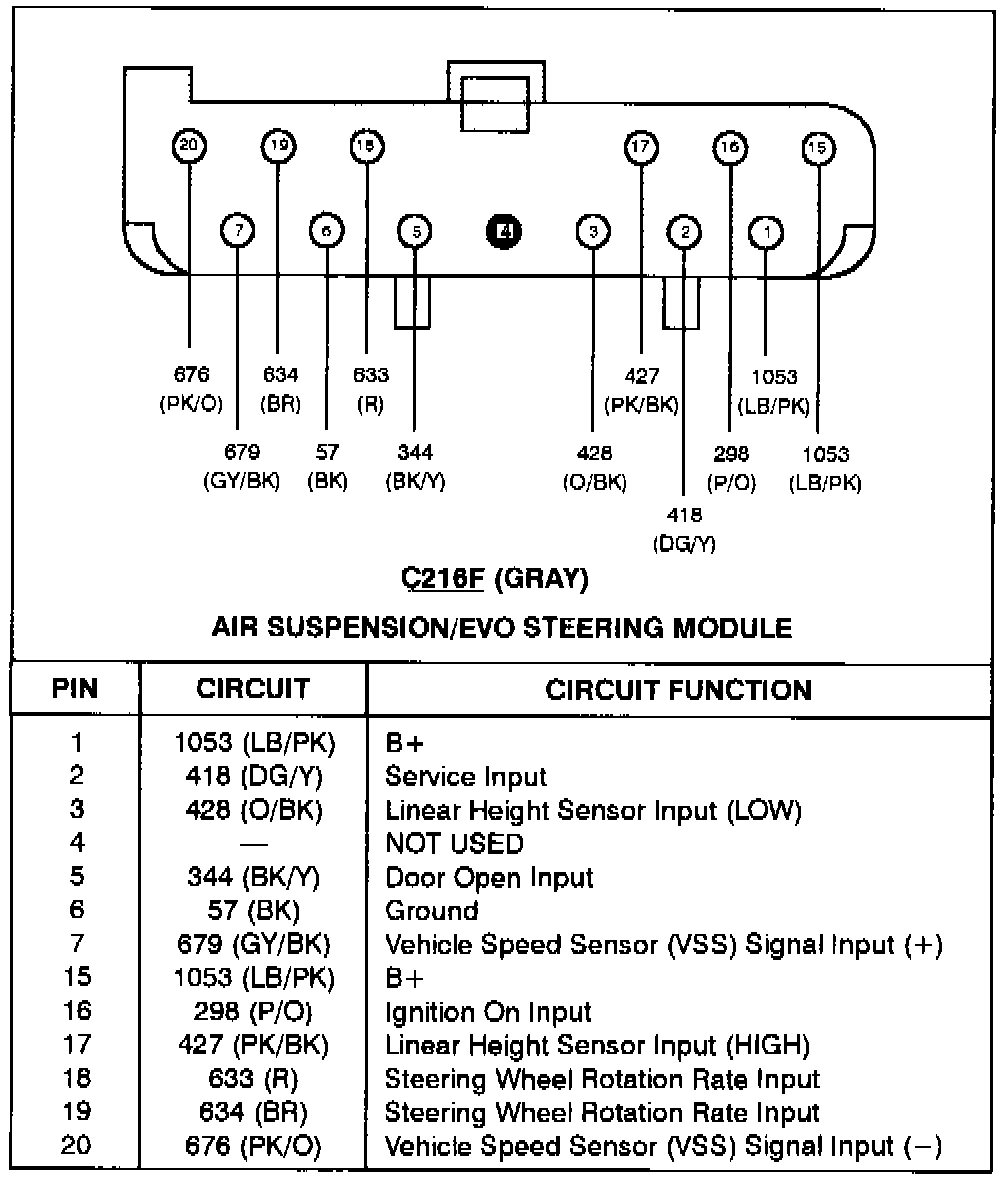

Air Suspension/EVO Steering Module - C216:

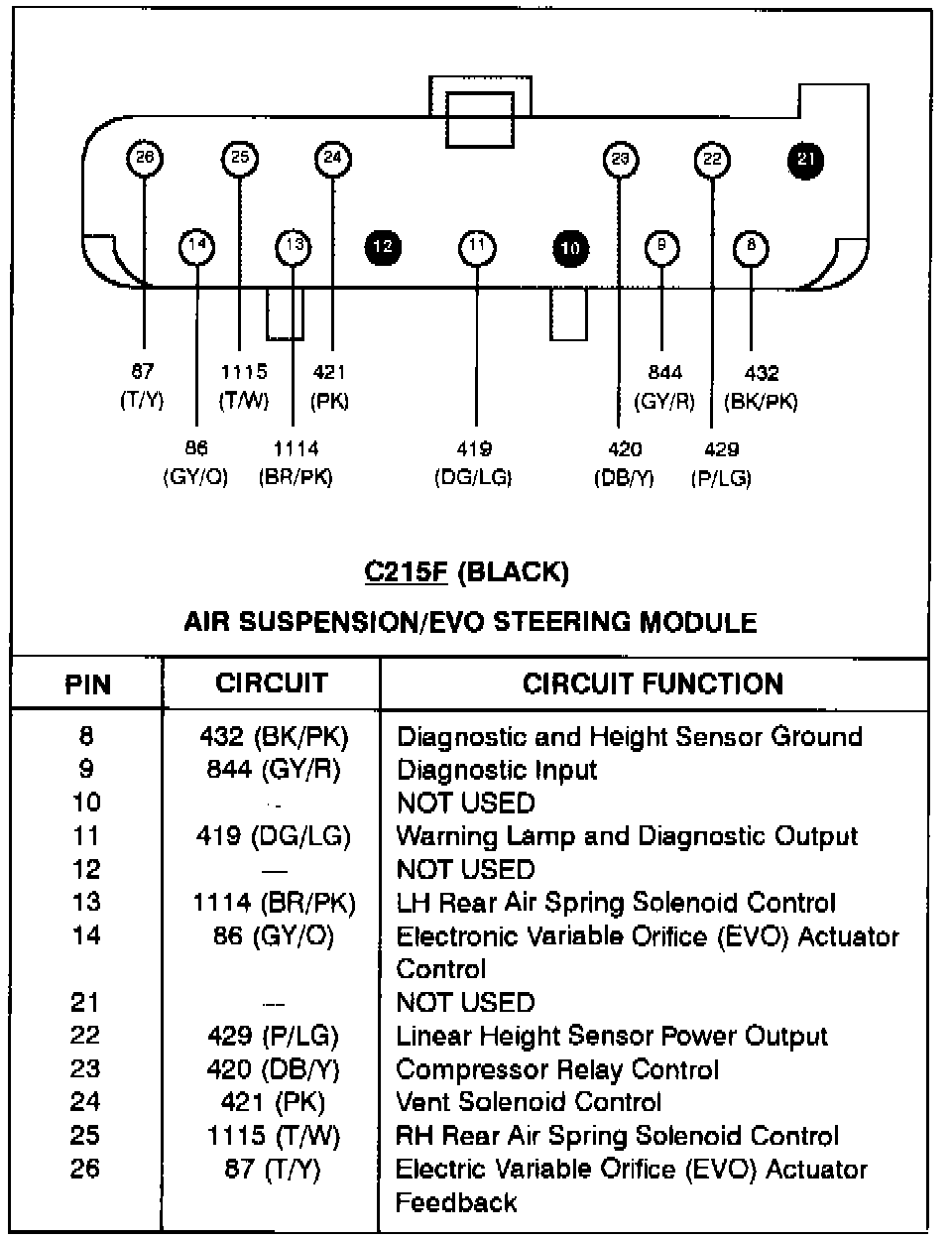

Air Suspension/EVO Steering Module - C215:
