Crown Victoria V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module

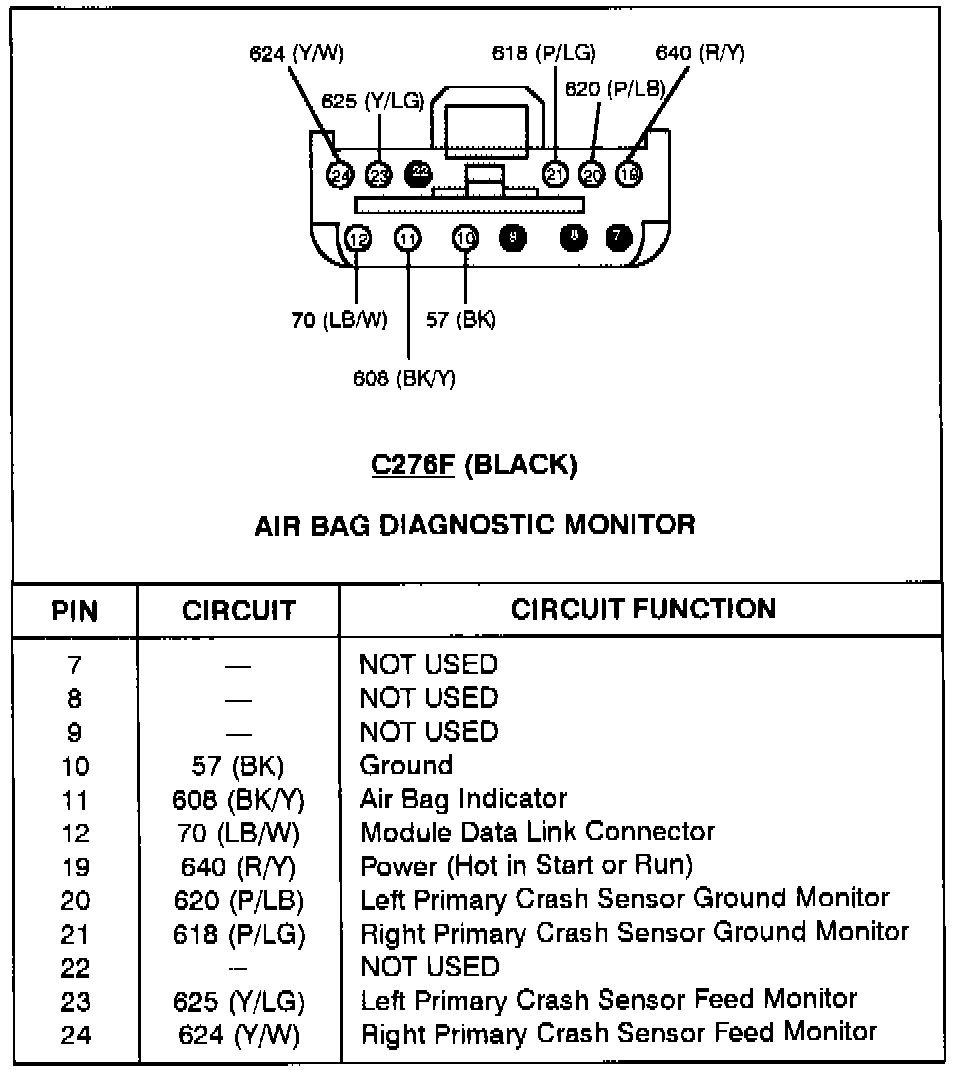

Air Bag Diagnostic Monitor - C276:

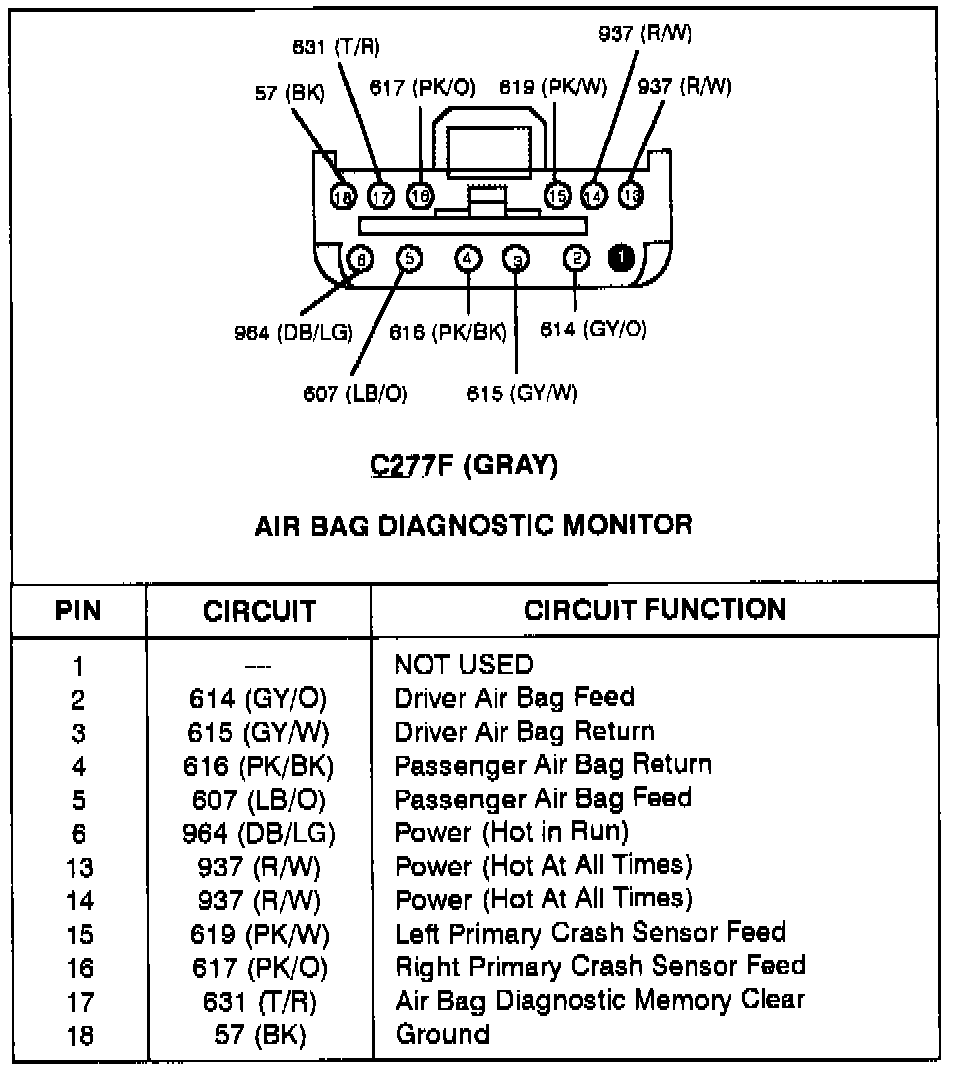

Air Bag Diagnostic Monitor - C277:
