Ford
>>
1996
>>
Thunderbird V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Flow Meter/Sensor
Air Flow Meter/Sensor

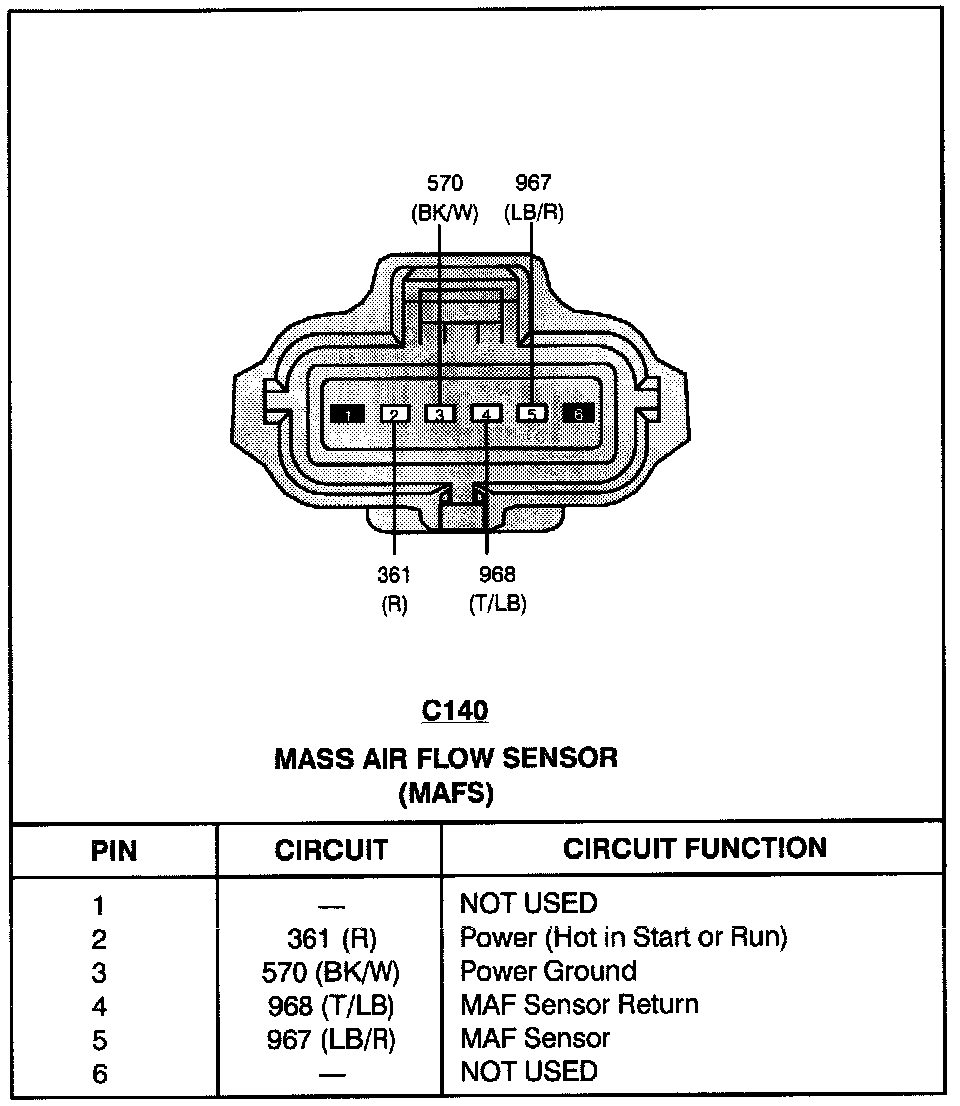

Mass Air Flow Sensor:
