Home >> Ford >> 1996 >> Taurus V6-182 3.0L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Relay >> Locations

Power Window Relay: Locations

Instrument Panel View:

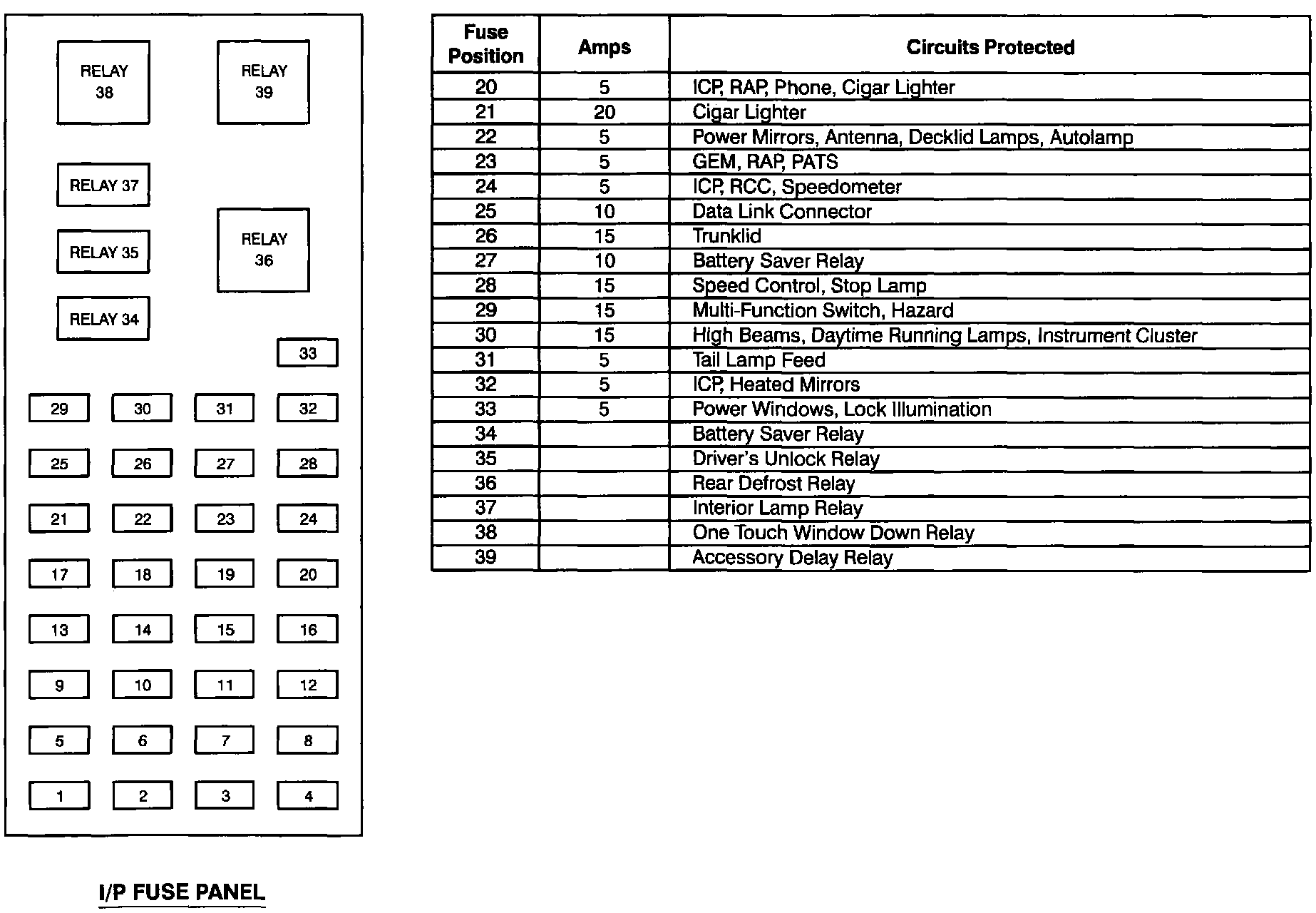

Instrument Panel Fuse Panel (part 2 Of 2):





The One Touch Window Down Relay is located in the instrument panel fuse panel.
