Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Engine Compartment Fuse/Relay Box
Engine Compartment Fuse/Relay Box

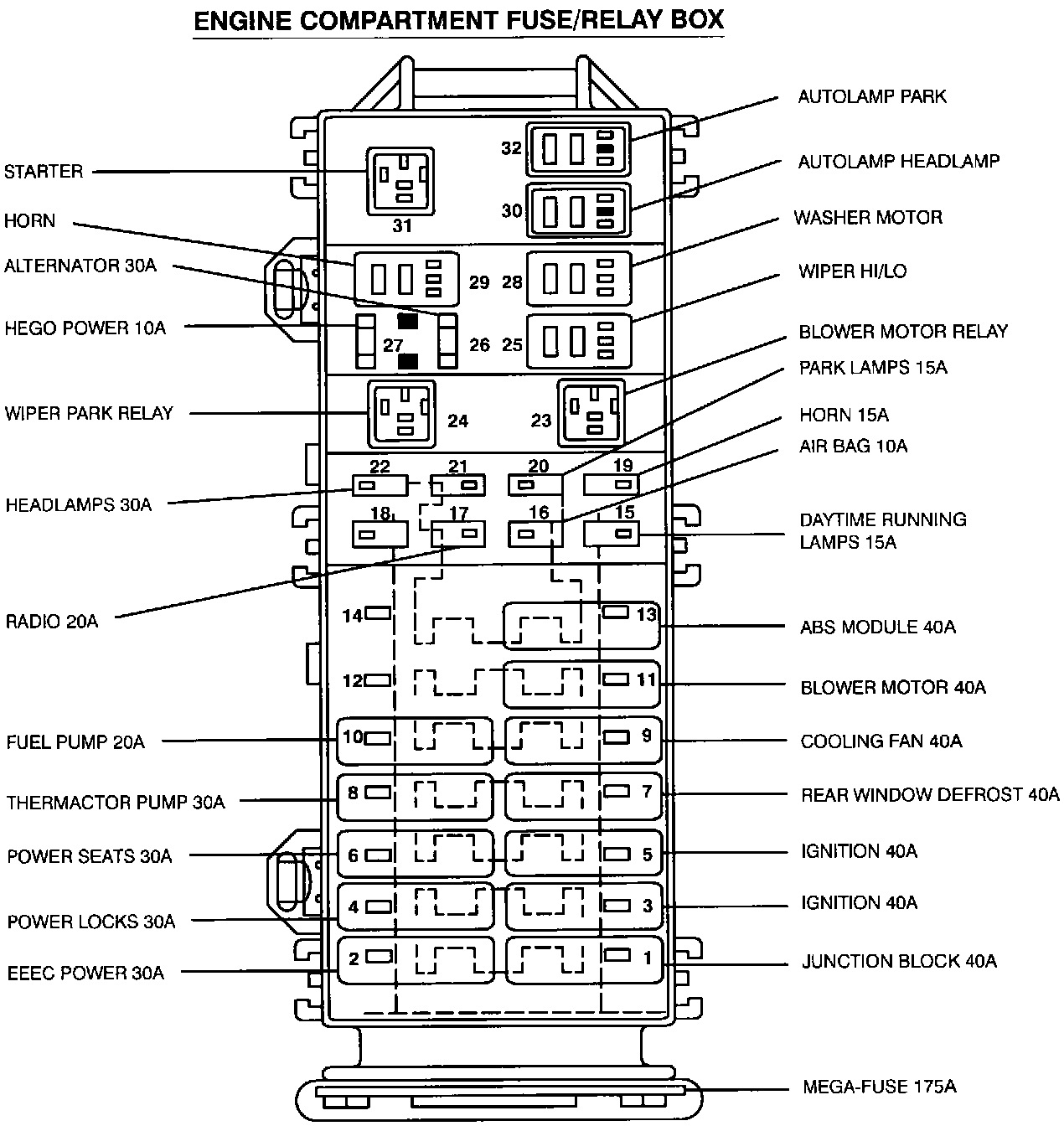

Engine Compartment Fuse/Relay Box (Part 1 Of 3):

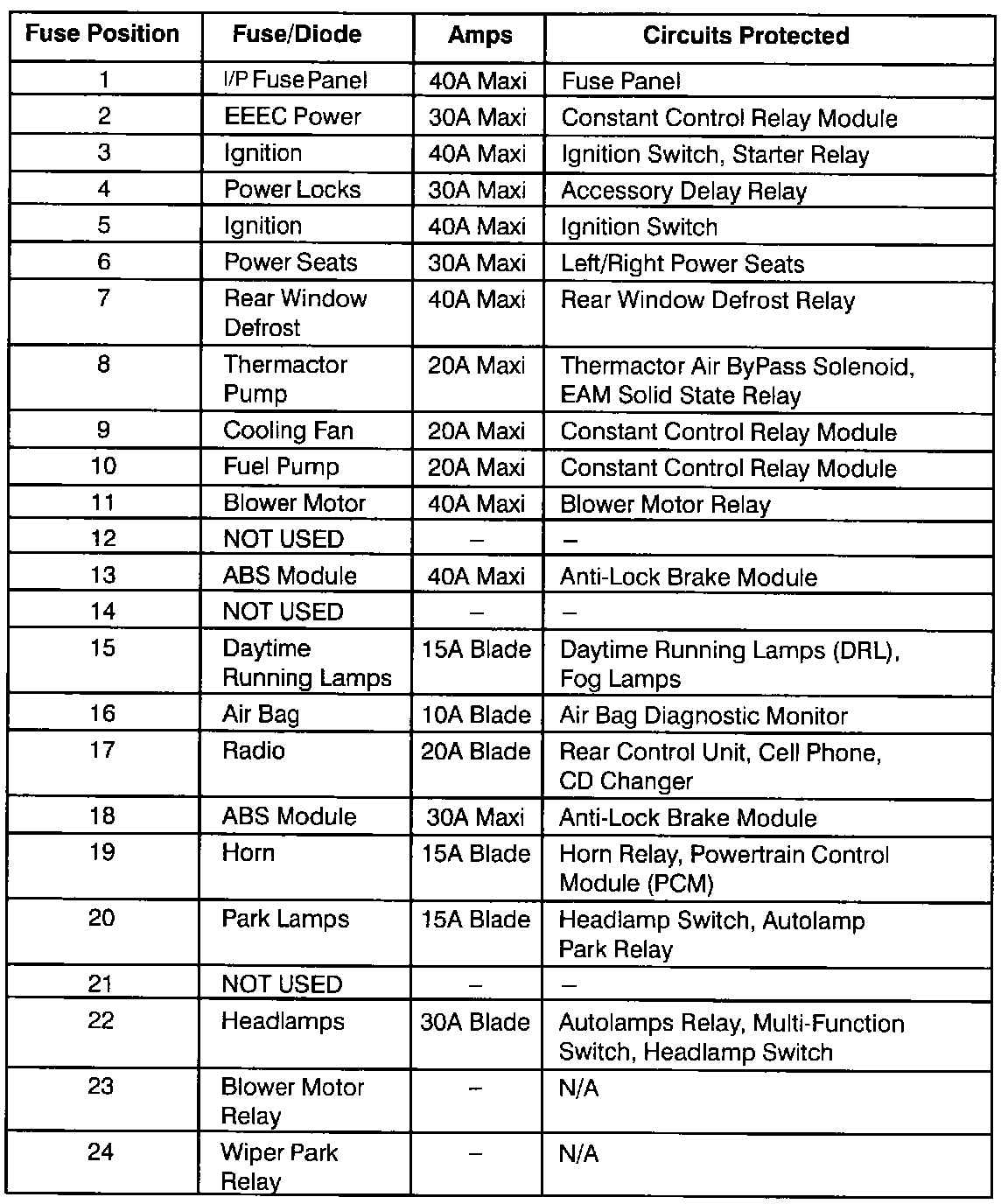

Engine Compartment Fuse/Relay Box (Part 2 Of 3):

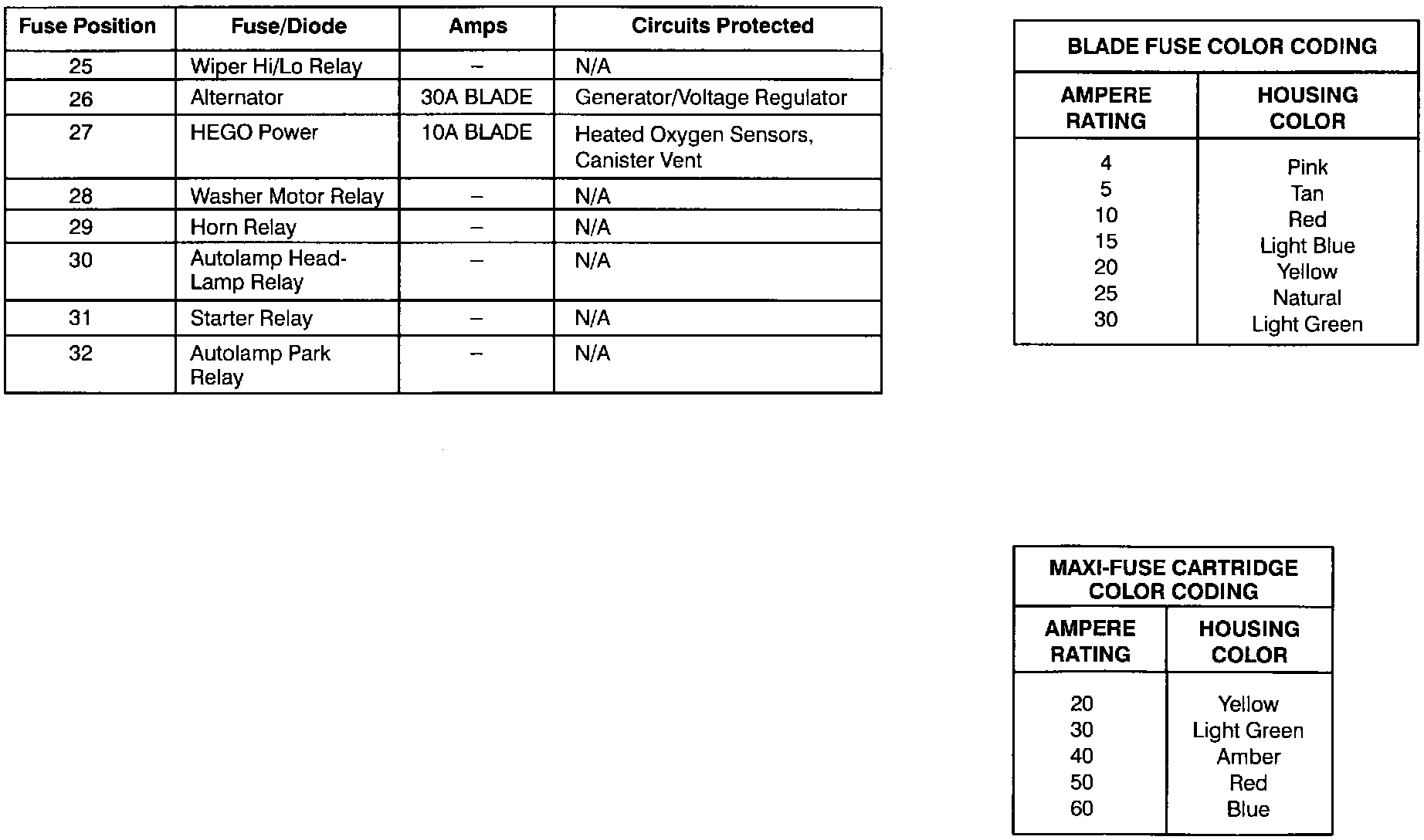

Engine Compartment Fuse/Relay Box (Part 3 Of 3):
