Ford
>>
1996
>>
Taurus V6-182 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft and Alarm Systems
>>
System Diagram
>>

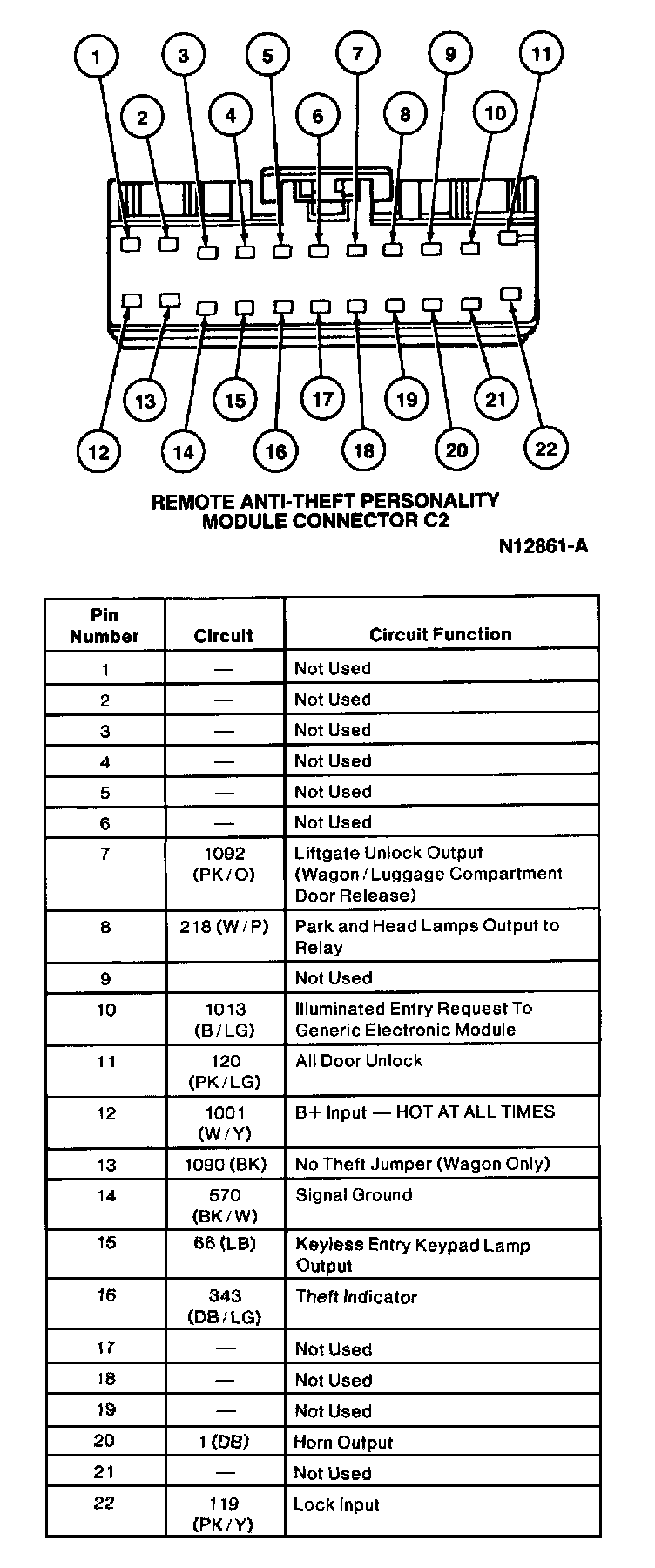

Remote Anti-Theft Personality Module Connector C2
Remote Anti-Theft Personality Module Connector C2
