Home >> Ford >> 1996 >> Taurus V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antitheft and Alarm Systems >> System Diagram >> Generic Electronic Module (GEM) Connector C2

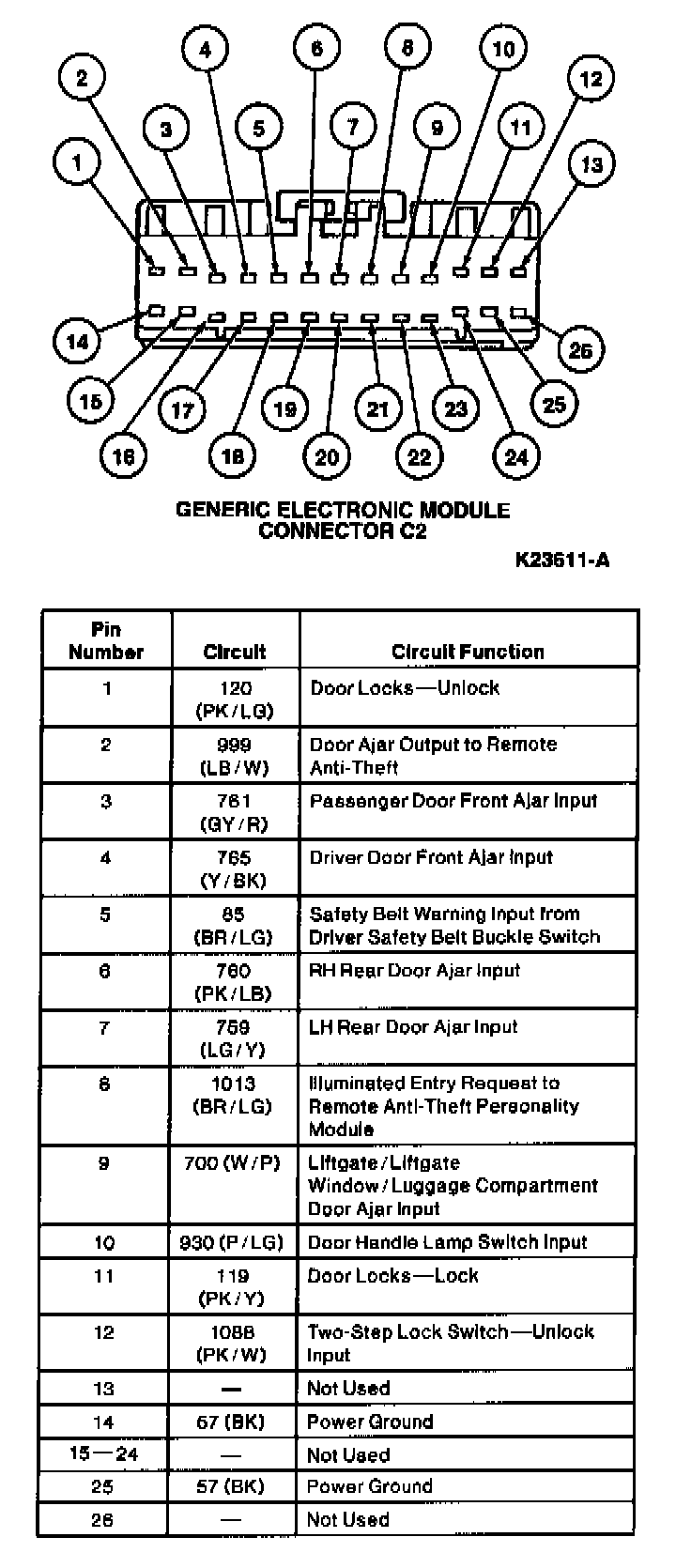

Generic Electronic Module (GEM) Connector C2
