Home >> Ford >> 1996 >> Taurus V6-182 3.0L FF >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Engine Compartment Fuse/Relay Box

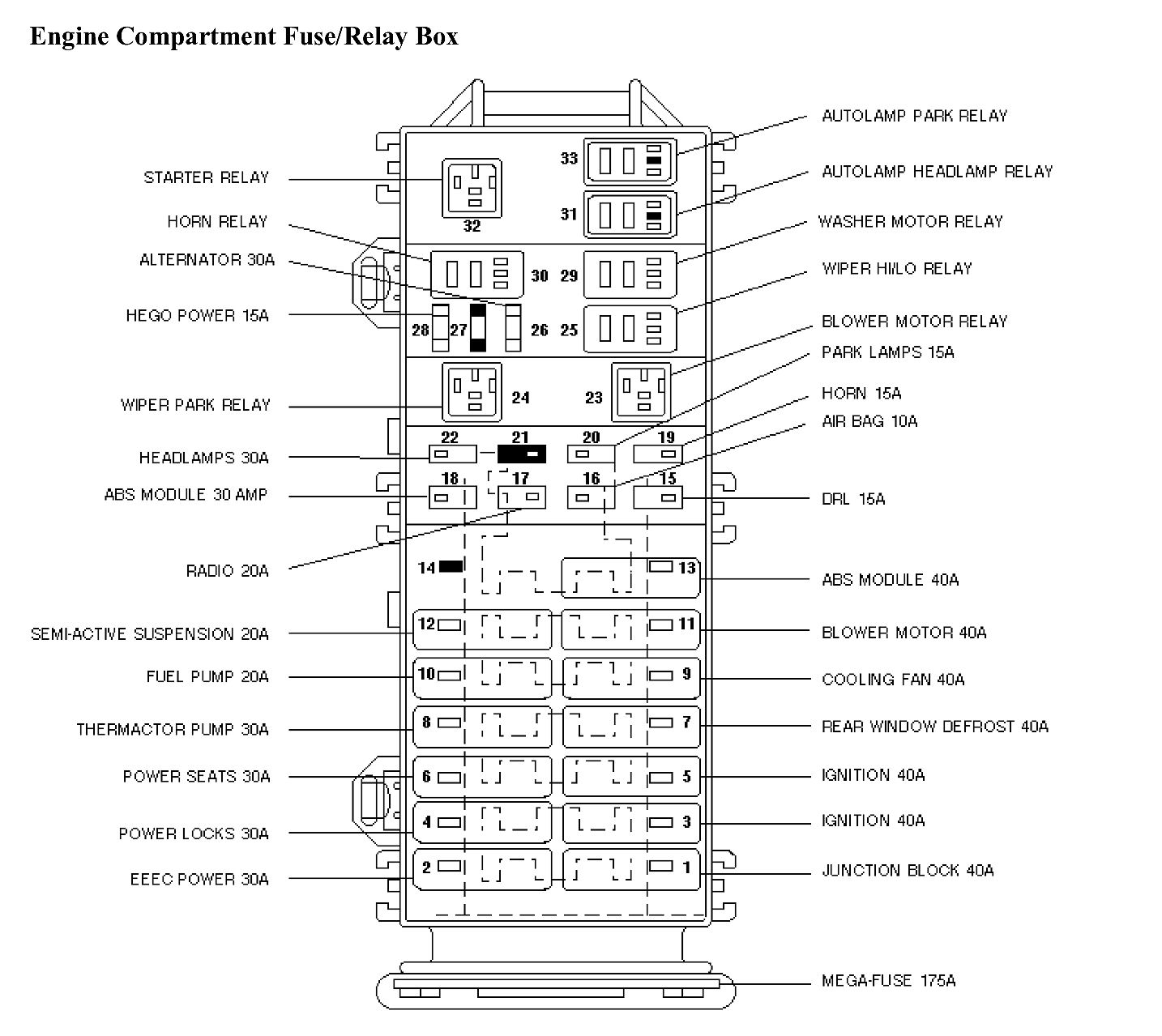

Engine Compartment Fuse/Relay Box
