Home >> Ford >> 1996 >> Probe V6-153 2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> H - Fuel Control >> Pinpoint Test Schematic

Pinpoint Test Schematic

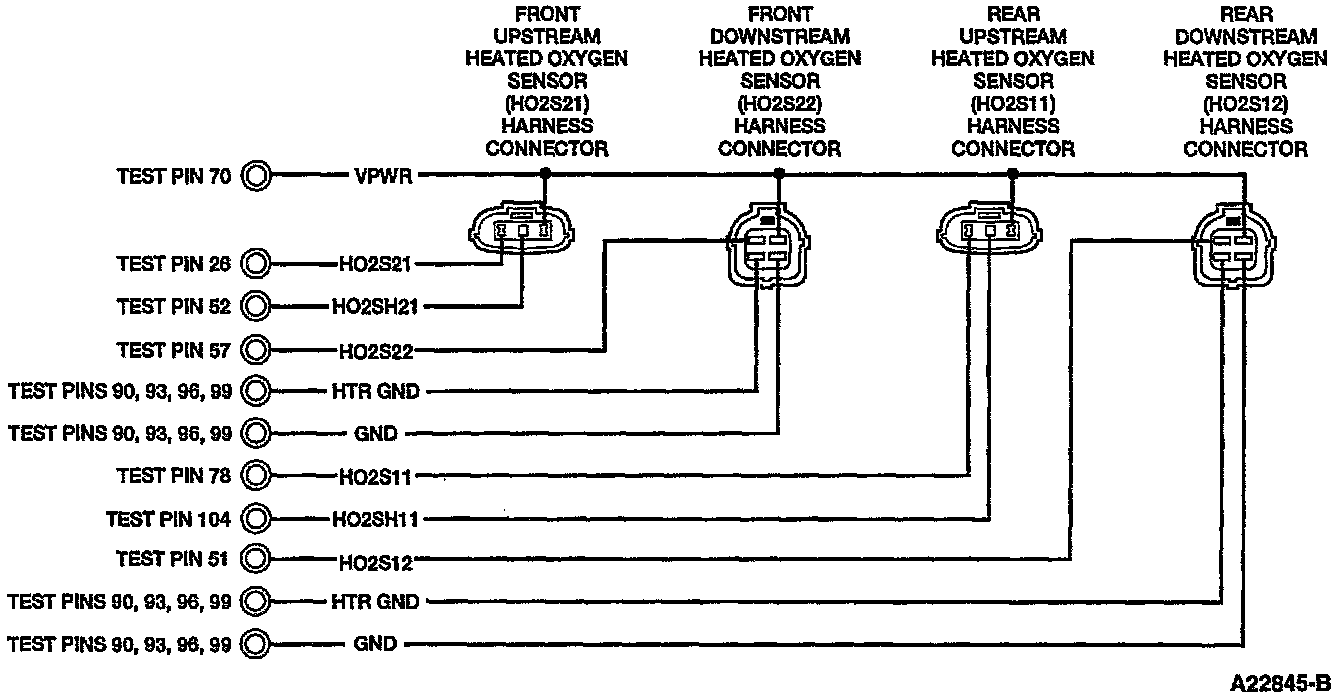

Fuel Injector And Heated Oxygen Sensor Harness Connectors:




Fuel Pressure Regulator Control (FPRC) Solenoid Circuit And Harness Connector:
